Bing HRF Series Flexible Varicose Vein Ablation Catheter Cable
Posting date : Jun 04, 2026
Membership
Free Member Scince May 21, 2026
FOB Price
$1.33/ m
Min. Order Quantity
1000 meter
Supply Abillity
1000000meter
Port
Shanghai
Payment Terms
EXW
Package
strand
Keyword :
Category
Contact
Emma Bai
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Bing Wire & Cable
Model Number
HRF0.75-WB,HRF1.00,HRF1.80,HRF1.80A-LL,HRF145A-WB,HRF150A-WB,HRF155DS-LL
HS-CODE
8544-20
Package & Delivery Lead Time
Package
strand
Delivery Lead Time
15-25
Specifications

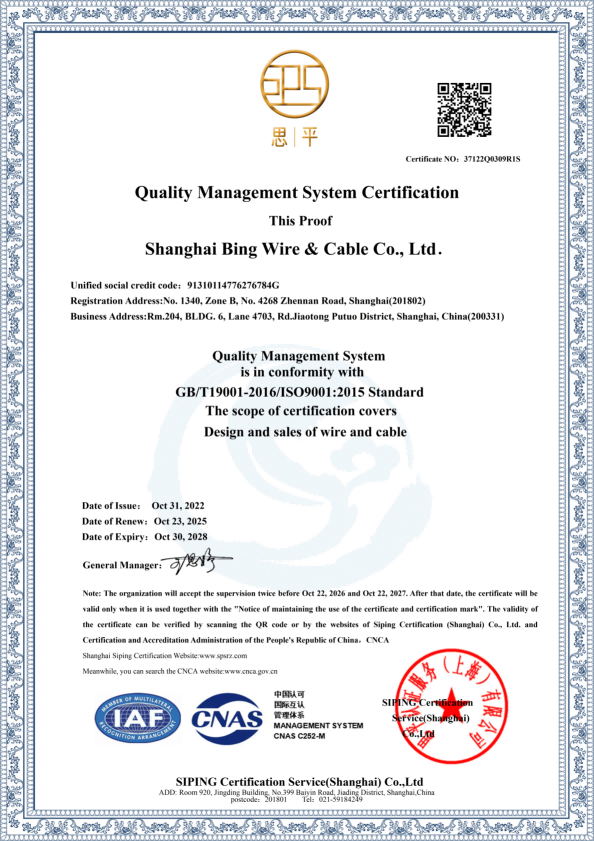

Type of Certification
Quality Management System Certification
Reference no.
Certificate NO:37122Q0309R1S
Name.
GB/T19001-2016/ISO9001:2015 Standard
Issued By
SIPING Certification Service(Shanghai) Co.,Ltd
Start Date (validity period)
2025-10-23
End Date (validity period)
2028-10-31
Scope
The scope of certification covers Design and sales of wire and cable

Detailed Description

Product Introduction

Bing HRF is the 4th-generation special microwave ablation catheter cable developed by Bing for varicose vein treatment equipment. Widely adopted by mainstream manufacturers of microwave ablation devices and disposable ablation consumables, this cable features compact outer diameter, superior high-power transmission efficiency (fast ablation speed) and no surface overheating during operation, realizing reliable water-circulation-free design for clinical ablation catheters.
Manufactured with Bing’s proprietary raw materials and exclusive production craft:
  • Full flexible construction with excellent bendability for routing inside human cavity; moderate rigidity plus outstanding rebound elasticity
  • Supports extra-long catheter length up to 1.5m, structurally strong enough to withstand pushing force from distal end during clinical puncture surgery

Core Features

✅ Compact smaller outer diameter, optimized for minimally invasive catheter design
✅ No surface overheating under working power, eliminating requirement for water circulation cooling system
✅ High-precision impedance matching for consistent microwave signal transmission
✅ Ultra-low VSWR to minimize signal reflection
✅ Low insertion loss & low return loss, reducing power waste during energy delivery
✅ Excellent shielding performance to avoid signal interference
✅ High-efficiency microwave power transmission to speed up clinical ablation procedure

Key Specification & Generation Comparison (Attenuation @2.45GHz)

GenerationOuter Diameter (mm)Attenuation (dB/m @2.45GHz)
1st Gen1.802.50
2nd Gen1.502.43
3rd Gen1.501.75
4th Gen(BinHRF)1.50

1.56

Custom service available: we can tailor special flexible catheter cables in OD 1.80mm & 2.00mm for higher power transmission demands.

Typical Application

Specially matched for water-cooling-free varicose vein microwave ablation catheters, used in minimally invasive vascular clinical treatment equipment from medical device manufacturers.
