9.Sheet metal plate-tube integrated laser cutting machine

What is a plate-tube integrated machine?

A Plate and tube integrated Fiber Laser Cutting Machine is a type of heat exchanger that combines both plate and tube elements to improve heat transfer efficiency. This design incorporates plates (often flat, which provide surface area for heat exchange) and tubes (often round or finned, which allow fluid flow).

The machine leverages the high surface area of the plates and the fluid flow characteristics of the tubes, making it effective for transferring heat between two fluids or phases—like gas-to-liquid, liquid-to-liquid, or gas-to-gas. Plate-tube integrated machines are common in applications requiring efficient heat transfer with compact size, such as in HVAC systems, refrigeration, and industrial processing equipment.

Here’s a breakdown of Metal plate fiber laser cutting machine key components and functions:

1. Plates: Increase the heat transfer surface area, allowing for more efficient heat exchange.

2. Tubes: Allow fluid to flow while maintaining structural strength and resistance to pressure.

3. Integrated Structure: Combines the properties of both designs to handle higher pressures, accommodate various flow rates, and maintain efficiency.

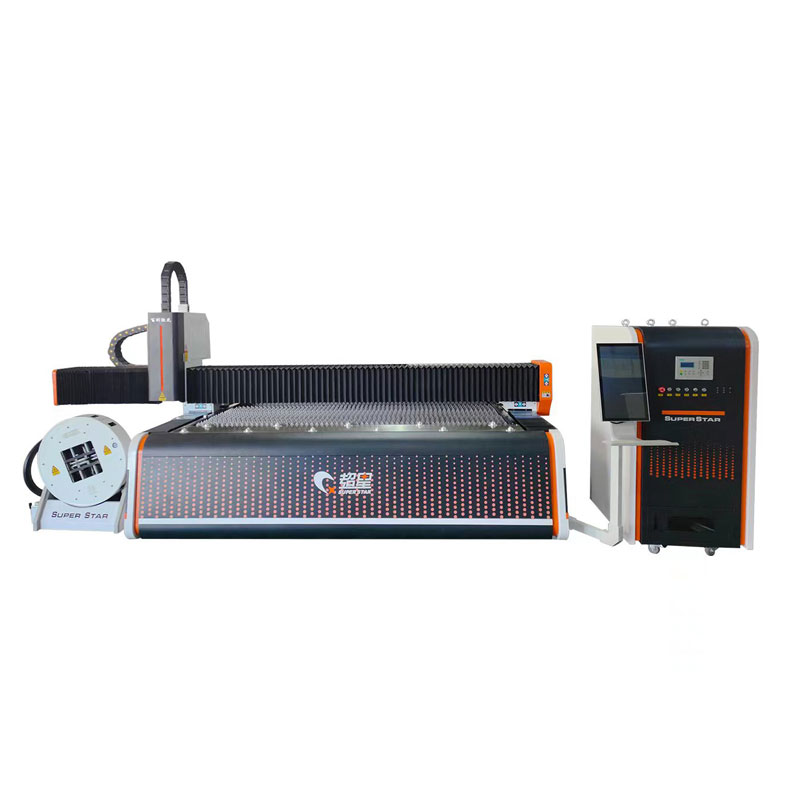

laser cutting machine  Product Feature：

1.Using industrial heavy-duty steel structure design and NC five-sided machining center to ensure machine accuracy and stability.

2.Using Schneider of France electrical appliances and IGUS cable of Germany.

3.Imported servo drive system and imported decelerator are adopted, which have fast running speed and strong stability.

4.Taiwan guideway and high precision grinding rack are used to ensure the long-time processing accuracy of the equipment.

5.Professional laser cutting control system with complete functions and simple operation

6.It has the characteristics of maintenance-free, energy saving and cost reduction.

Specification:
