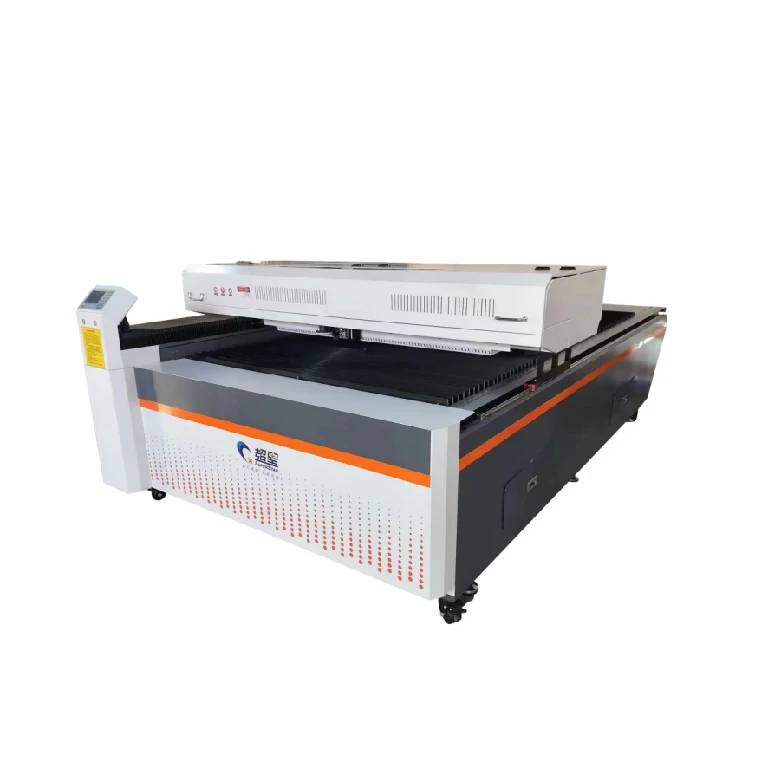

1325PH 300w CO2 laser cutting machine
0 likes
China [CN] Co2 Laser Machine Function :
1. Industrial linear module. The X-axis screw transmission component is a sealed industrial linear module with higher accuracy, longer dust-proof structure life, and less maintenance.
2. Using a 300w high-power laser tube. Supports high-power and more reliable optical lenses.
3. Plate tube integrated steel pipe welding. The body adopts high-strength and heavy-duty equipment with a thickness of over 5mm, and the installation surface of the rack guide rail is finely processed and slotted by a CNC gantry milling machine.
4. Automatic exhaust, automatic blowing. More user-friendly features such as servo status lights on the control panel, dual color ambient lighting for machine tool status, and a foldable electrical installation board for easy maintenance and repair.
Model | 1325PH-300W |
Laser type | Co2 Enclosed Laser Tube 300W SLW |
Maximum Processing Range At One Time | 1250*2450mm |
Maximum Feed Width | 1350mm |
Total Weight | 1050KG |
Fastest Movement Speed | 60m/min |
Fastest Working Speed | 40m/min |
Best Cutting Speed Range | 1mm/s-180mm/s |
Speed Control | 0-100% Stepless Control |
Laser Energy Control | RD CCD Software Control/Manual Adjustment |
Laser Tube Cooling | Forced Water Cooling (Industrial Chiller) |
Mechanical Resolution | 0.025mm |
Thickest Cutting Depth | 30mm(Acrylic For Example) |
Repeat Positioning Accuracy | ±0.1mm |
Power Supply | AC220V±15% 50HZ |
Main Unit Power | ≤3000W |
Support Software Format | BMP PLT DST AI DXF DWG |
Driving System | Servo Motor, XY Axis Screw |
Working Environment Temperature | 0℃～45℃ |
Water Chiller | CW5300 |
Machine Size | 3600*2100*1250mm |
Co2 Laser Cutting Machine Application:
It is used for precision cutting of non-metallic materials such as acrylic, wood board, cardboard, plastic, rubber, leather, etc. It is typically used for precision model cutting, precision tooling cutting, and edge patrol cutting in the later stages of UV printing.
