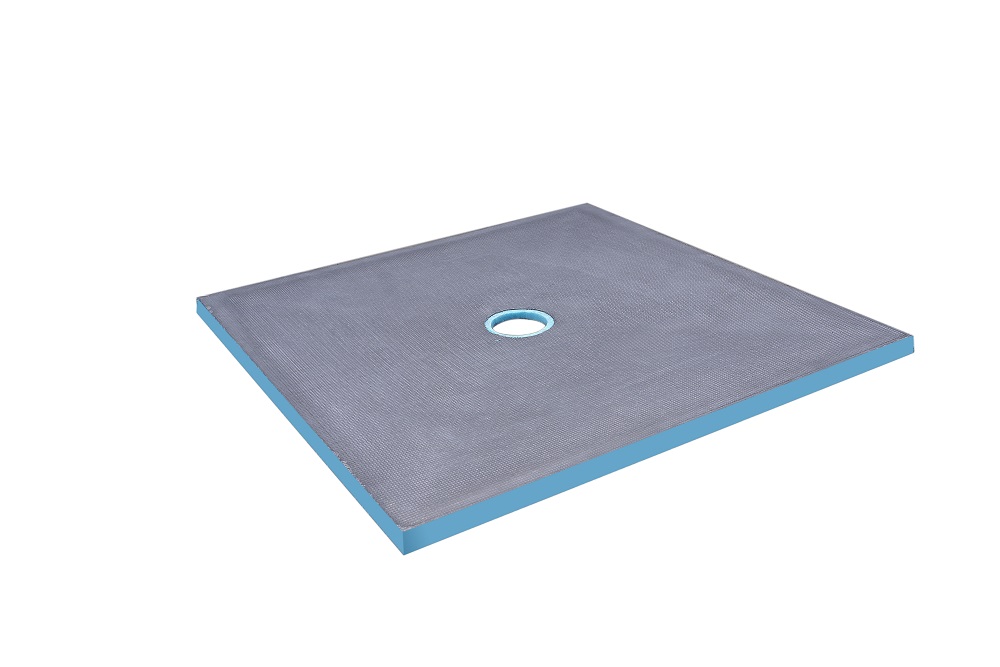

Building Panel 48" x 60" x 1/2" Waterproof Tile Backer Board
0 likes
China [CN] XPS Foam Wall board/panel
Tile Backer Cement Multiboard Waterproof For Wet Room and Tiles 10mm 0.72m2
Thermal Insulation Board for Walls & Floors
Tile Backer Board 6mm 10mm 20mm 1200x600mm Insulation boards Wet Room
Technical | Assessed to | Rating |
XPS Foam Density | DIN 53420 | 32±0.02kg/m³ |
Compressive strenghth (kPa) | EN 826 | ≥450 |
Thermal conductivity（W/m・K） | EN 12167 | ≤0.030 ≤0.034 |
Dimesional stability % (70±2℃) 48h | GB/T8811-2008 | ≤1.5 |
Flexural Strength (Mpa) | ASTM C203 | ≥2.8 |
Water Absorption(96hrs immersion) | ISO 2896 | ≤1.5 |
Water Vapour Permeability | ASTM E-96 | ≤3.0 |
Flammability | EN13501 | B2 |
Tensile strength perpendicular to the board | GB/T30595-2024 | ≥0.2Mpa |
Bathrooms and Showers: Perfect for walls and floors in showers and bathrooms where water exposure is constant.
Kitchens: Ideal for kitchen backsplashes and countertops, providing a moisture-resistant base.
Wet Rooms: Suitable for creating fully waterproof wet rooms with tiled surfaces.
Exterior Spaces: Can be used in outdoor areas where moisture and temperature changes are a concern.
