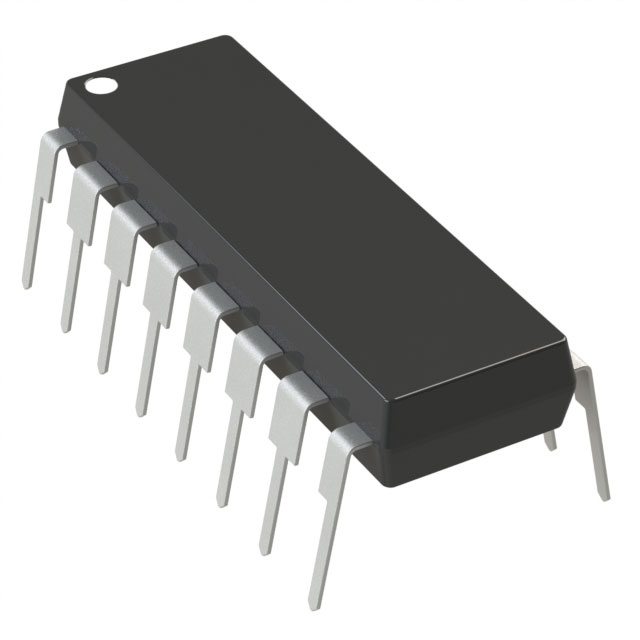

HCTL2000 Quadrature Decoder/Counter Interface ICs
Posting date : Nov 15, 2024
Membership
Free Member Scince Nov 15, 2024
FOB Price
4.8
Min. Order Quantity
50
Supply Abillity
6123
Port
Hong Kong
Payment Terms
TT advance payment
Package
DIP16
Keyword :
Category
Contact
Ali
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
Hong Kong [HK]
Brand Name
AGILENT
Model Number
HCTL2000
HS-CODE
8541-
Package & Delivery Lead Time
Package
DIP16
Delivery Lead Time
2 days
Detailed Description

Description

The HCTL-2000, 2016, 2020 are CMOS ICs that perform the quadrature decoder, counter, and bus interface function. The HCTL-20XX family is designed to improve system performance.


Features

• Interfaces Encoder to Microprocessor

• 14 MHz Clock Operation

• Full 4X Decode

• High Noise Immunity: Schmitt Trigger Inputs Digital Noise Filter

• 12 or 16-Bit Binary Up/ Down Counter

• Latched Outputs

• 8-Bit Tristate Interface

• 8, 12, or 16-Bit Operating Modes

• Quadrature Decoder Output Signals, Up/Down and Count

• Cascade Output Signals, Up/ Down and Count

• Substantially Reduced System Software


Applications

• Interface Quadrature Incremental Encoders to Microprocessors

• Interface Digital Potentiometers to Digital Data Input Buses
