XYZ Integrated Crossed Roller Bearing Linear Stages

Specifications

Model Number

PT-XZ13

PT-XZ25

Platform Size

61.5mm×61.5mm

63.5mm×63.5mm

Adjust The Number Of Axes

X , Y , Z Three-Axis

X , Y , Z Three-Axis

Travek

13mm

25mm

Drive Mode

Micrometer Drive

Micrometer Drive

Drive Position

Central Drive

Central Drive

Guide Rail Form

V-Groove & Crossed Rollers

V-Groove & Crossed Rollers

Scale

0.01

0.02

Accuracy

Adjustment

Verticality

40μ

40μ

Movement Perpendicularity

40μ

40μ

Load

8kg

8kg

Weight

0.9kg

0.9kg

Material – Finish

Aluminum Alloy - Black-Anodized

Aluminum Alloy - Black-Anodized


Product details:

High precision manual integral translation platform


Product features:

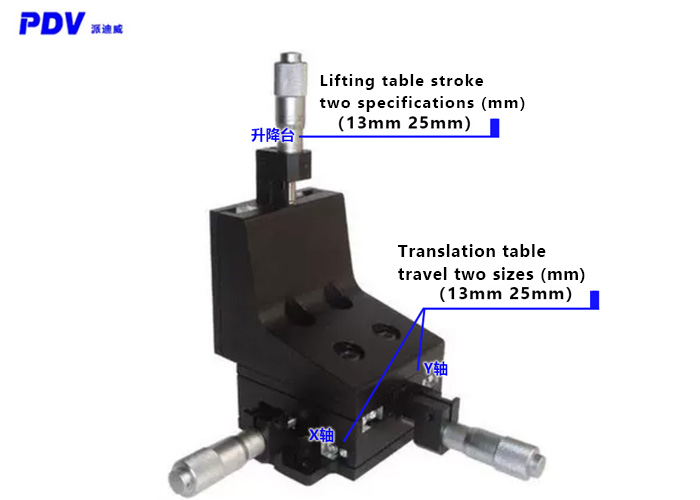

■ Compact design, easy to use, and three-axis translation adjustment in a small space.

■ The integrity of the structure makes it easier to ensure the orthogonality of three-axis motion through processing.

■ The left and right hands are designed in pairs, and the micrometer heads of the two horizontal axes are installed on the same horizontal plane for easy operation.

■ The cross ball guide rail is adopted, which makes the movement comfortable and stable. The straightness, yaw and pitch of the axis movement.

■ Z-axis rigid drive lifting, which is much more loaded than spring lifting.

■ The micrometer head is driven, the spring returns, and the differential head reads to eliminate the air return and achieve high adjustment accuracy.


Product size chart

XYZ Integrating Crossed Roller Bearing Linear Stage PT-XZ13

Advantage:

We have Processing equipment: CNC 10 sets, Lathe 8 sets, milling machine 11 sets. We have a group of experienced high-level processing technicians. Our products are sent to the Metrology Institute for random inspection every year regularly and issue inspection report.

Have the industry leading level of the designer, can strictly grasp the product design and processing precision.

We have experienced and skilled assembly master.

Our products from the design concept, the processing technology, the assembly technology omni-directional control.Provide high quality products for users.

If our standard products do not meet your requirements, we can customize them according to your requirements.
