Customized 1.2-7.0mm patterned aluminum sheet for anti-skid use in automobiles/ships 5052 5083 3003
0 likes

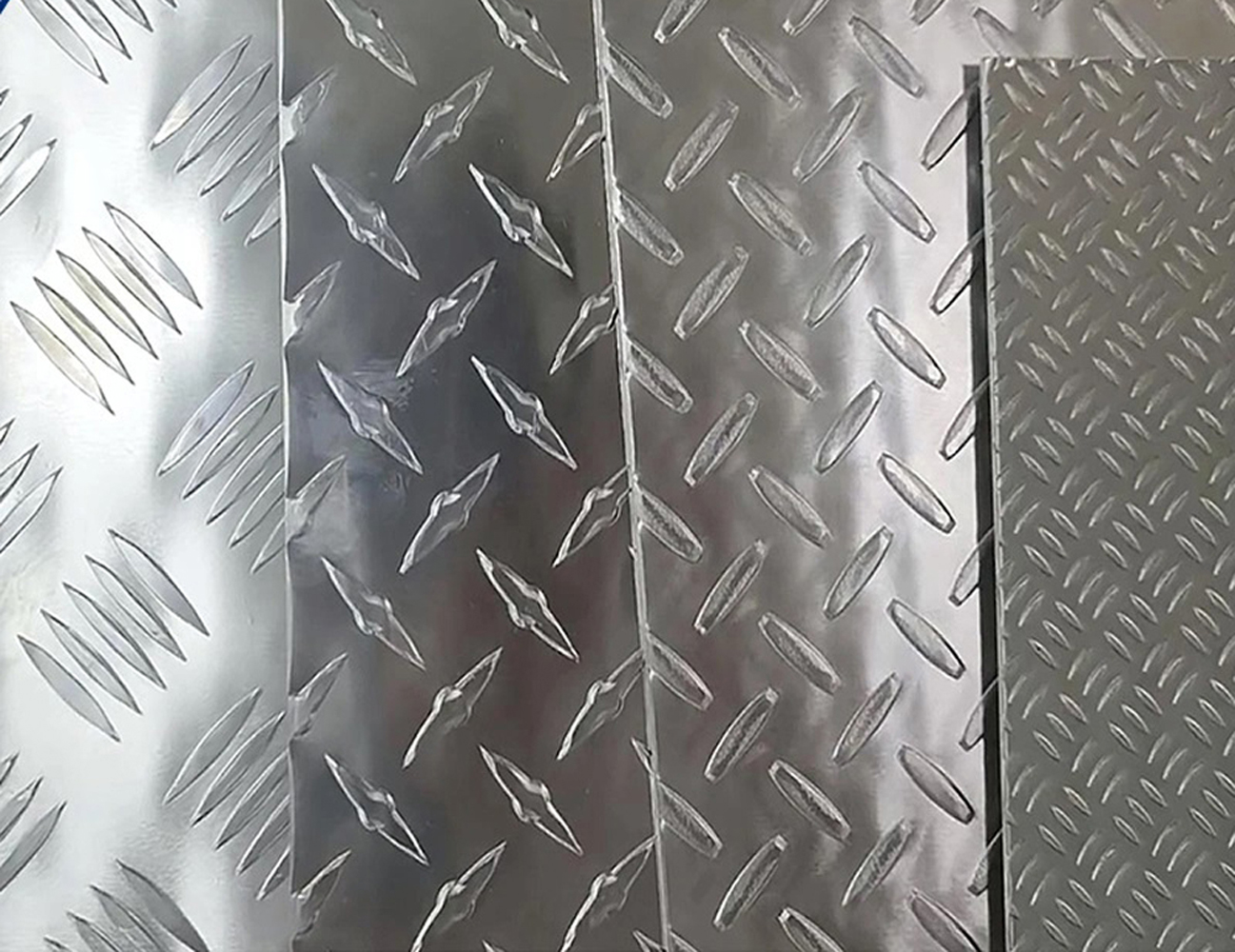

China [CN] Anti-skid patterned aluminum sheet is a product with concave and convex patterns on the surface of the aluminum sheet, which has anti-skid function. Hongchang Aluminum produces anti-skid aluminum sheets. Common patterned aluminum sheets in the market include five-rib, three-rib, one-rib, diamond-patterned anti-skid aluminum sheets, which are suitable for anti-skid use in various vehicles, containers, stairs, ship deck anti-skid equipment and other buildings.
The main products of patterned aluminum sheets are 1xxx series, 3xxx series, 5xxx series, and 6xxx series aluminum alloy sheets. The product surface is clean, shiny, without burrs, black wire, etc. The product models are complete and can be customized according to customer needs and exported overseas.
Specifications of anti-slip patterned aluminum sheets:
Alloy | 5000 series: 5052 5754 5083 5086 6000 series: 6061 6063 6082 3000 series: 3003 3004 3005 3105 1000 series: 1050 1060 1100 |
Temper | O H12/H22 H14/H24, H16, H18, H114 H194, T6 T4, etc. |
Thickness | 0.7-10.0mm |
Width | 20-2100mm |
Length | 1000mm, 2000mm, 2440mm, 3000mm, 3048mm, 6000mm, or as required |
Embossed pattern | small 5bar, large 5bar, 3bar, 2bar, 1bar, diamond, propeller, pointer, etc. |
Advantages | 1. Accurate size, good anti-slip effect, wide range of applications 2. Strong plasticity, easy to form, excellent processing performance. 3. Embossed aluminum sheet can form a dense and solid oxide film on the aluminum surface to prevent the intrusion of oxygen, so it has good corrosion resistance. 4. Good elongation and tensile strength, can fully meet normal processing requirements (stamping, stretching), high formability. 5. The surface quality of the patterned sheet is good, without oil spots, waves, scratches, roller marks, neat cutting edges, and no burrs. |
Application | Floors of aircraft, light rail, and vehicles; decks, stairs, ladders, racks, temporary scaffolding, platforms, cantilever beams, elevators, etc. of ships. |
Samples | Free samples |
MOQ | 1 tons |
Advantages of anti-slip patterned aluminum sheet:
1. Excellent anti-slip performance, widely used
2. High hardness surface, strong wear resistance, long service life
3. Corrosion resistance
4. Lightweight, easy to install
5. Beautiful appearance
Click enlarge Image
