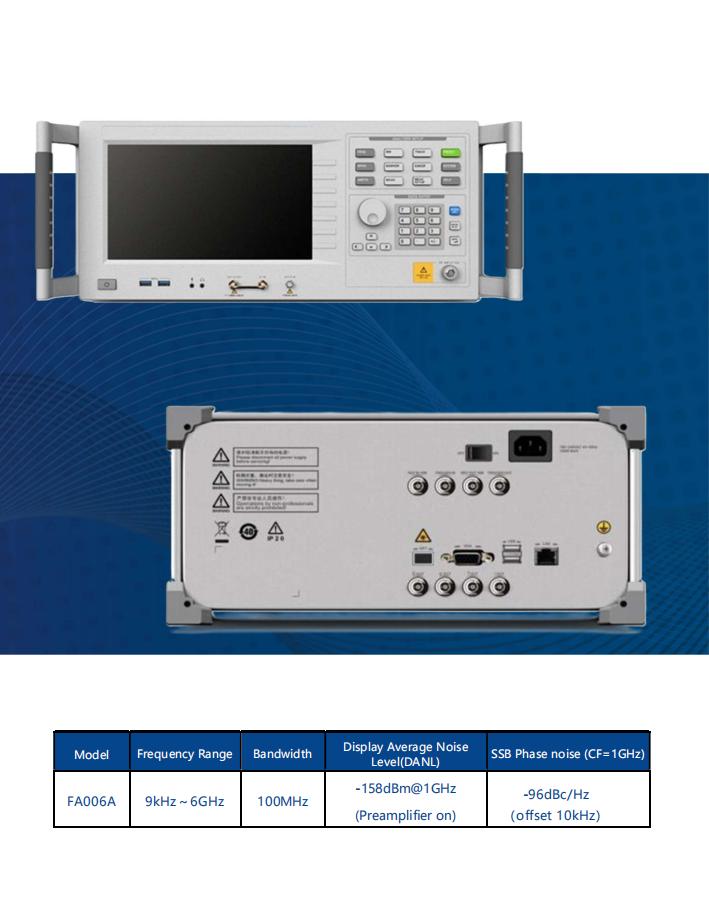

Product Description
USPACE&EAGLE FA series signal and spectrum analyzer not only provides excellent RF performance, but also a standard analysis bandwidth of 100MHz , which can demodulate multiple communication standard signals (such as WCDMA, NB-IOT, LTE, 5G NR). I/Q develop interface can be opened for special application requirements.
USPACE&EAGLE FA series signal and spectrum analyzer provides a three-year warranty service, and ultra-low maintenance cost.
The platform adopts high-performance x86 architecture and the host is equipped with Windows10 operating system. The platform is equipped with high reliability solid-state drive, high-resolution screen, and excellent human-computer interaction performance.
Frequency Range
9kHz-6GHz
Digital Signal
1.Provide WCDMA,LTE,NB_IOT,5G NR,5G NR CPE demodulation and analysis
2.Provide ASK,FSK,QPSK,256QAM vector signal demodulation and analysis
3. At 1GHz frequency,LTE 64QAM demodulation EVM is under 1%
4.Provide IQ analysis,4 million IQ sampling points, with a maximum sampling rate of 307.2 MSa/s
DANL
Excellent DANL performance, minimum -158dBm/ Hz@1GHz (Preamplifier on)
RF characteristics
1.Display average noise level DANL minimum -158dBm/Hz (at 1GHz, minimum attenuation, Pre-amplifier on, typical )
2.Frequency Initial Accuracy ±50ppb
3.Analysis bandwidth 100MHz
4.SSB Phase noise -103dBc/Hz (CF=1GHz,offset 10kHz, 20 ºC ~ 30 ºC)
5.Support temperature self-calibration function
Services
1. 24-hour after-sales service hotline
2. 3-year warranty and ultra-low maintenance costs
3. Provide Chinese or English operation interface
