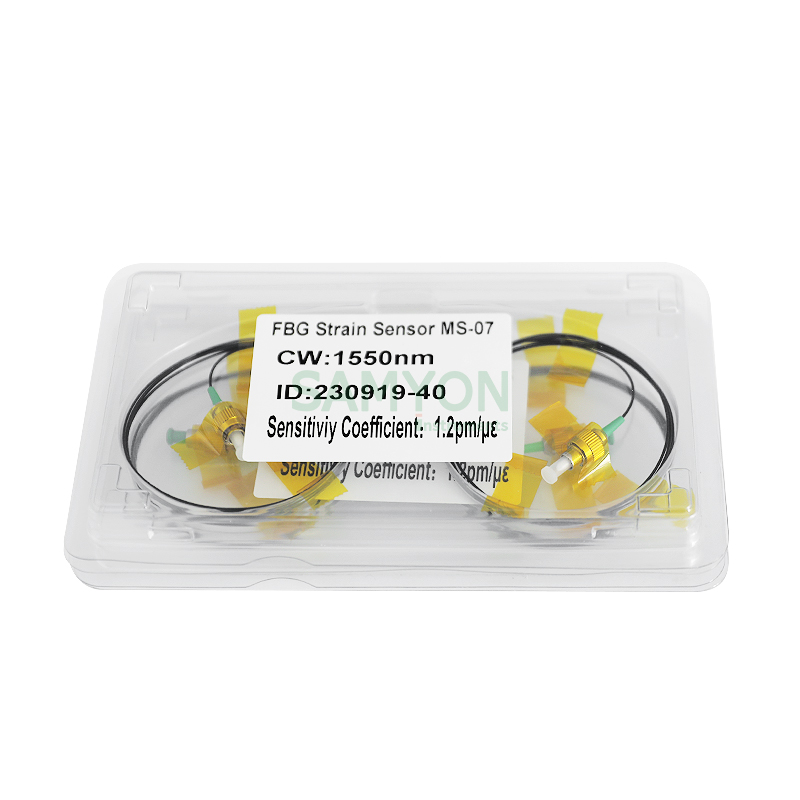

Center wavelength 1550nm strain sensor SAMYON telecommunication single end FC optical instruments reflector fiber bragg grating

본문 바로가기
Home > Product > Center wavelength 1550nm strain sensor SAMYON telecommunication single end FC optical instruments reflector fiber bragg grating
Product
Center wavelength 1550nm strain sensor SAMYON telecommunication single...
Posting date : May 10, 2024
Membership
Free Member Scince May 10, 2024
FOB Price
15 USD
Min. Order Quantity
1
Supply Abillity
Negotiable
Port
Beijing China
Payment Terms
T/T
Package
Plastic Bag/Carton
Keyword :
fiber Bragg Grating Sensors
Category
MISCELLANEOUS | Optical ph | Measuring | Measuring/
Contact
Lee
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
SAMYON
Model Number
SY-1550B
HS-CODE
9031-80
Package & Delivery Lead Time
Package
Plastic Bag/Carton
Delivery Lead Time
7-10 working days
Detailed Description
Introduction
We have two line with Fiber Laser system from Coherent and relative optical plate.Recently production capacity is 0.3million pcs each year;with 70 thousand pcs each single line.For common temperature FBG range from 80-120 Degree,we normally use Corning 28e optical fiber.If needs bearing higher temperature,there is ployimide coating optical fiber max 375 Celsius degree from Fibercore or relative other optical fiber.
If need more than 400 Celsius degree,it should use femoto fiber bragg grating which with special packages technology can upto 1000 celsius degree.We also can produce FBG with thin optical fiber 80um, 50um and microbend resistance coating optical fiber.Beside the Bragg Grating,we produce Chirped Fiber Grating,Long Period Fiber Grating,Phase Shift Fiber Grating,FBG Arrays and Laser FBG 2 arrays with certain central wavelength according to clients request.
We sell 70% of our Bared FBG during one year.And 30% will be packaged to relative FBG sensor Temperature sensor,Strain Gauge,Displacement Sensor,Accelerometer and so on.
Applications
1. Telecommunication, Lasers and sensors, filter
2.Wavelength Division Multiplexing Transmission System
3. High tensile resistance and anti-electromagnetic interference
Features
High stability and reliability Length customized grating High SLSR
Specification
Parameter
Unit
Values
Center Wave length
nm
1510-1590
Wavelength Tolerance
nm
+/-0.2
FBG length
mm
1-15
Reflectivity

5%-99%
Bandwidth at 3dB
nm
0.1- 1
SLSR
dB
≥15
Recoating
--
Aorylate or Polyimide
Fiber type
--
SMF-28e or Polyimide Fiber
Fiber termination
--
Bare Fiber, FC/UPC, or FC/APC
Pigtail length
m
2 (typical )
Operating Temp
℃
SMF-28e Fiber: -5 -80
Polyimide Fiber: -40-80
Storage Temp
℃
SMF-28e Fiber: -5 -80
Polyimide Fiber: -40-80
Proof test
Kpsi
≥100
