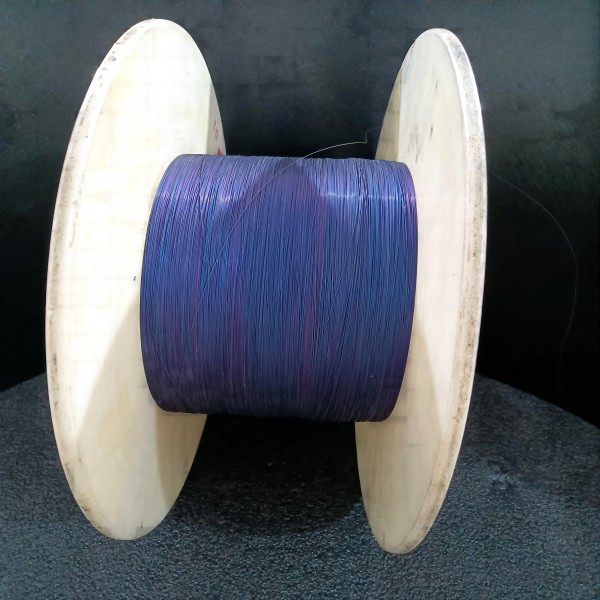

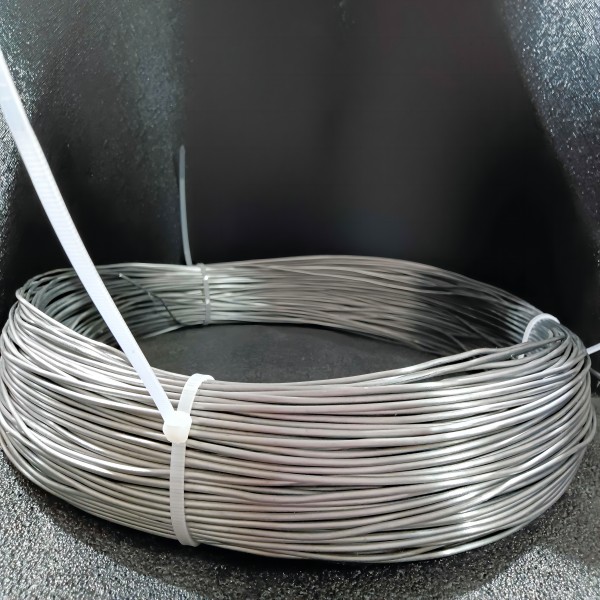

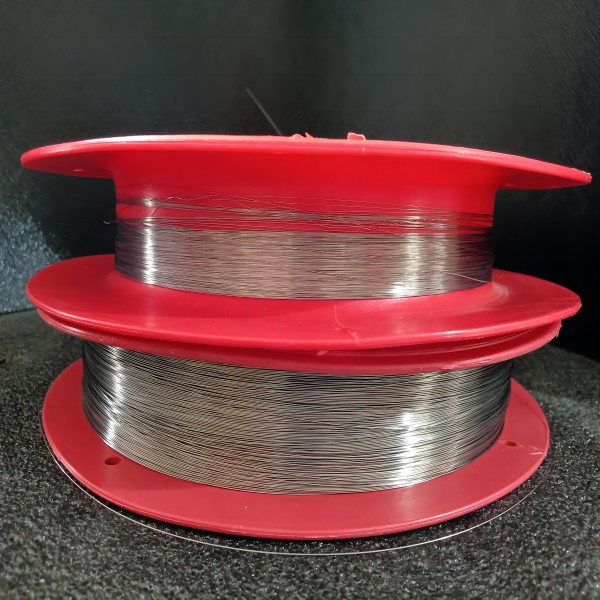

Nitinol Wire







1. UsageMedical guide wires, stents, medical catheters,medical device, etc

2.Chemical Elements(wt%)



Ni

C

Co

Cu

Gr

H

Fe

Nb

N

0

Ti

54.5~ 57.0

Max.

0.040

Max.

0.050

Max.

0.010

Max.

0.010

Max.

0.005

Max.

0.050

Max.

0.025

Max.

0.005

Max.

0.040

Bal.

ASTM F2063-18 -Standard Specification for Wrought Nickel-Titanium Shape Memory Alloys for Medical Devices and Surgical Implants



3.Specification

3-1. Used for stents





Test result

Diameter Range

0.05~0.40

Mechanical Property

 Tensile Strength

min. 1,140 Mpa

 Elongation

Min.15.0%

Surface Black Oxide, Light Oxide, Polished



3-2.Used for stents (Super-Elastic)





Diameter Range(mm)

0.20~0.80









Mechanical Property

Upper Plateau Stress at 3% Strain

Min.415 MPa

Lower Platea Stress at 2.5% Strain

Min.100 MPa

Ultimate Tensile Strength

Min.1140 MPa

Uniform Elongation

Min.10.0%

Residual Elongation After 6% Strain

Max.0.3%

Surface

Black Oxide, Light Oxide Bright

Af

-5℃≤Af≤+18℃
