Eye Link Conveyor Belts
0 likes
China [CN] Flat Surface Heavy-Duty Modular Eye Link Conveyor Belts For Either Industrial Or Food Processing Applications

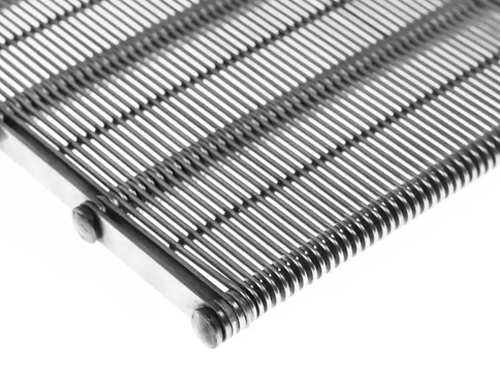

Eye link conveyor belts as known as Eye-Flex conveyor belts. The design of eye link conveyor belts typically involves a series of interconnected eye links or eye link modules. When these modules are joined with cross rods, they create a flat and robust surface. These belts are commonly made of stainless steel or other alloys.
Eye Link Conveyor Belts are utilized in various industries, including industrial and food processing applications, owing to their stability, durability, high strength, and versatility.
The customization options and adaptability of Eye Link Conveyor Belts make them well-suited for harsh applications that demand an extremely heavy-duty belt.
| Available Material | Carbon Steel, SS 304, SS 316, other materials available upon request |
| Chain pitch | 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 63.5 mm, 76.2 mm |
| Cross Rod diameter | 5 mm, 6 mm, 7 mm, 8 mm, 10 mm, 12 mm |
| Eye Link Wire diameter | 1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.5 mm, 3 mm, 3.5 mm |
| Spiral pitch | 2.4 mm to 100 mm |
| Cross Rod pitch | 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 63.5 mm, 76.2 mm |
| Belt width | 100 mm to 6,000 mm |
| Maximum Temperature | Up to 400 °C |
