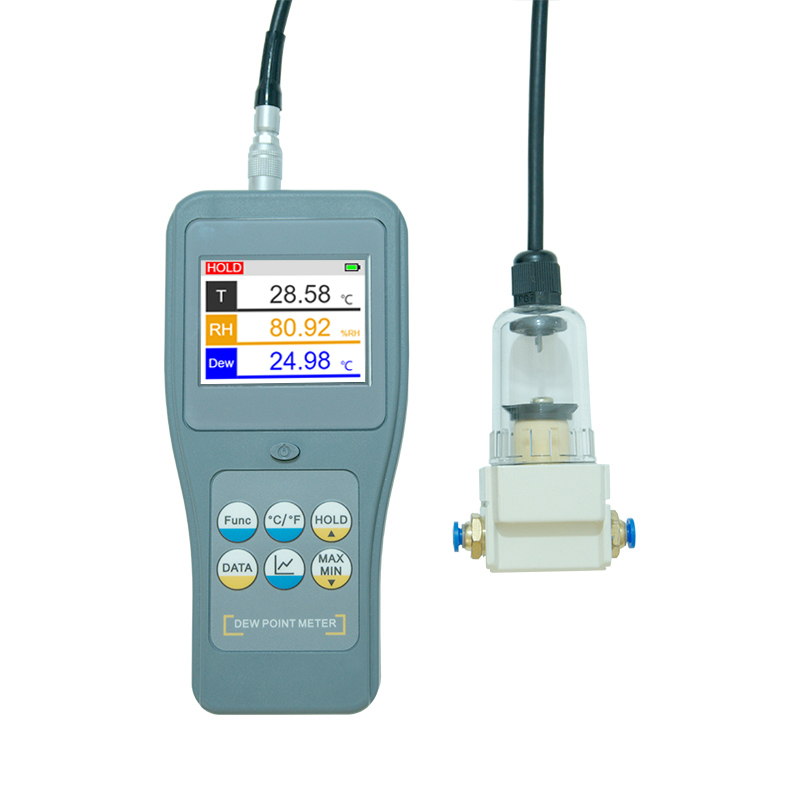

RD2630S High-accuracy Dew Point Meter for Air/Gas Measurement
0 likes
China [CN] It is a
high-accuracy professional dew point meter. It is able to measure Ambient
Temperature, Dew Point Temperature, Wet Bulb Temperature, Relative Humidity,
Absolute Humidity, PPMv. It can quickly respond to temperature and humidity
measurements in the industrial range. Widely
used in laboratories, precision manufacturing, modern agriculture,
meteorological measurement, chemical and pharmaceutical, power industry and
other temperature and humidity monitoring occasions.
• Large
color LCD with display. It can display multiple values at the same time.
•
Ambient Temperature measurement.
• Dew
Point Temperature measurement.
• Wet
Bulb Temperature measurement.
•
Relative Humidity measurement.
•
Absolute Humidity measurement.
• PPMv
measurement.
•
Temperature unit (°F/°C).
• 0.01
high resolution.
• High
accuracy.
• With
real-time graph display function.
• With
data storage and view functions.
• With
maximum and minimum values function.
• With
the displayed values hold function.
• With
battery indication function.
• With
automatic power off function.
• Separate Sensor
is designed for gas measurement.
|
Display |
Color LCD |
|
|
Test Parameters |
Ambient
Temperature, Dew Point Temperature, Wet Bulb
Temperature, Relative Humidity, Absolute
Humidity, PPMv, |
|
|
Ambient
Temperature |
Range |
-30~120°C
(-22~248°F) |
|
Accuracy |
±0.15°C
(0~50°C) ±0.2°C
(Other) |
|
|
Resolution |
0.01 |
|
|
Relative
Humidity |
Range |
0~100%RH |
|
Accuracy |
±1%RH
(0~70%RH) ±1.5%RH
(Other) |
|
|
Resolution |
0.01 |
|
|
Dew Point Temperature |
Range |
-30~60°C
(-22~140°F) |
|
Accuracy |
±1.5°C
(-10~60°C) ±(2+2%Num)°C
(Other) |
|
|
Resolution |
0.01 |
|
|
Wet Bulb Temperature |
Range |
0~60°C (32~140°F) |
|
Accuracy |
±0.7°C |
|
|
Resolution |
0.01 |
|
|
Absolute
Humidity |
Range |
0-300g/m³ |
|
Accuracy |
±(0.5+5%Num)g/m³ |
|
|
Resolution |
0.01 |
|
|
PPM |
Range |
300~240000 |
|
Accuracy |
±(50+8%Num) |
|
|
Resolution |
1 |
|
|
Temp. Unit |
°C/°F |
|
|
Data Storage |
99 Groups (A
Total of 594 Data) |
|
|
Graph Display |
Dew Point Temperature (Can be Customized Other Parameters) |
|
|
Auto Power Off |
10 Minutes (No Operation) |
|
|
Operating
Conditions |
Temperature |
0~50°C
(32~122°F) |
|
Humidity |
0~90%RH (No
condensation) |
|
|
Storage Conditions |
Temperature |
-10~50°C (14~122°F) |
|
Humidity |
0~95%RH (No
condensation) |
|
|
Power Supply |
4×1.5V AAA(UM-4)
Battery |
|
|
Size |
170×80×31mm |
|
|
Weight |
318g (Not
Including Batteries) |
|
|
Main Unit |
1 |
|
DP10 Separate
Sensor (For Gas) |
1 |
|
Manual |
1 |
|
Carrying Case |
1 |
The warranty period is
12 months
