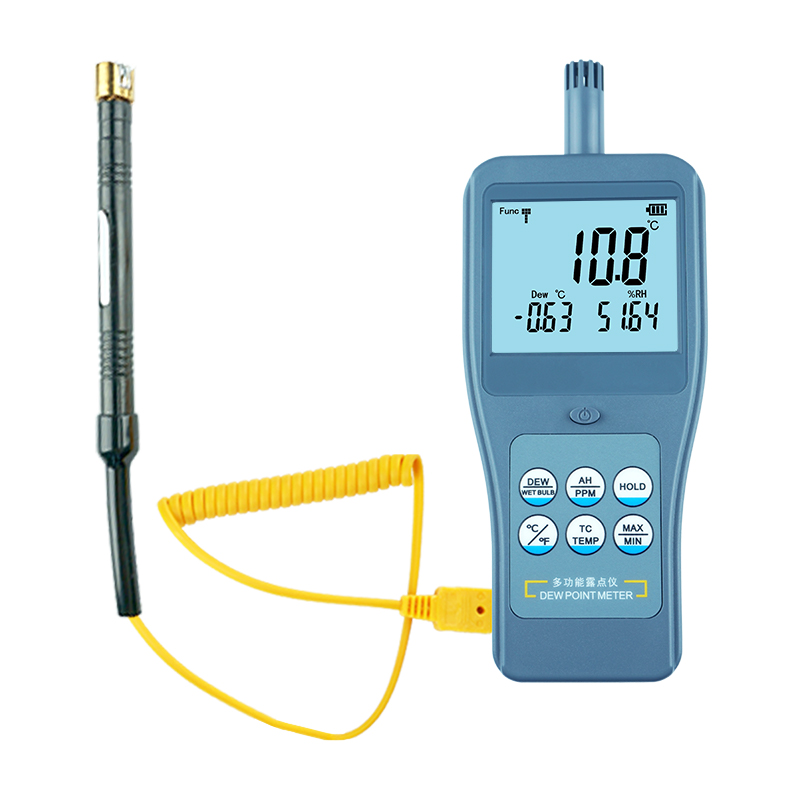

RTM2612 Digital Dew Point Meter with Thermocouple Thermometer
0 likes
China [CN] It is a high
accuracy of professional dew point meter. It is able to measure Ambient
Temperature, Dew Point Temperature, Wet Bulb Temperature, Relative Humidity,
Absolute Humidity, PPM and Thermocouple Surface Temperature. It can quickly
respond to temperature and humidity measurements in the industrial range. It is
also capable of measuring temperature and humidity in a variety of complex
environments. Widely used in spraying industry, workshops, warehouses,
libraries, offices, computer rooms, laboratories and other environmental
temperature and humidity monitoring occasions.
•
Large LCD with display. It can display three values at the same time.
•
Ambient Temperature measurement.
• Dew
Point Temperature measurement.
• Wet
Bulb Temperature measurement.
•
Relative Humidity measurement.
•
Absolute Humidity measurement.
• PPM
measurement.
• Thermocouple
Surface Temperature measurement.
•
Temperature unit (°F/°C).
• 0.01
resolution.
• High
accuracy.
• With
maximum and minimum values function.
• With
the displayed values hold function.
• With
battery indication function.
• With
automatic power off function.
|
Display |
Backlit LCD |
|
|
Test Parameters |
Ambient
Temperature, Dew Point Temperature, Wet Bulb
Temperature, Relative Humidity, Absolute
Humidity, PPM, Thermocouple
Surface Temperature |
|
|
Ambient
Temperature |
Range |
-30~120°C (-22~248°F) |
|
Accuracy |
±0.4°C
(90~120°C) ±0.2°C
(60~90°C) ±0.1°C
(60~60°C) ±0.2°C
(-30~20°C) |
|
|
Resolution |
0.01 (<100) 0.1 (Other) |
|
|
Relative
Humidity |
Range |
0~100%RH |
|
Accuracy |
±1.5%RH
(0~80%RH) ±2%RH
(80~100%RH) |
|
|
Resolution |
0.01 |
|
|
Dew Point Temperature |
Range |
-45~120°C
(-49~248°F) |
|
Resolution |
0.01 (<100) 0.1 (Other) |
|
|
Wet Bulb Temperature |
Range |
-20~40°C
(-4~104°F) |
|
Resolution |
0.01 (<100) 0.1 (Other) |
|
|
Absolute
Humidity |
Range |
0-400g/m³ |
|
Resolution |
0.01 (<100) 0.1 (Other) |
|
|
PPM |
Range |
0~50000 |
|
Resolution |
1 |
|
|
Thermocouple
Surface Temperature |
Type |
K-Type |
|
Range |
-50~200°C
(-58~392°F) |
|
|
Accuracy |
±1°C or
±1%Num (Take the larger
value) |
|
|
Resolution |
0.1 (<100) 1 (Other) |
|
|
Temp. Unit |
°C/°F |
|
|
Operating
Conditions |
Temperature |
0~50°C (32~122°F) |
|
Humidity |
0~80%RH (No
condensation) |
|
|
Storage Conditions |
Temperature |
-10~60°C
(14~140°F) |
|
Humidity |
0~90%RH (No
condensation) |
|
|
Power Supply |
4×1.5V AAA(UM-4)
Battery |
|
|
Size |
205×80×31mm |
|
|
Weight |
186g (Not
Including Batteries) |
|
|
Main Unit |
1 |
|
TP-202 Surface Thermocouple (K-type, φ14*230mm, -50~400°C) |
1 |
|
Manual |
1 |
|
Carrying Case |
1 |
Note:
The default type of thermocouple in the
standard accessories is K-type. If other types of thermocouple are needed,
please specifying when placing order.
The warranty period is
12 months
