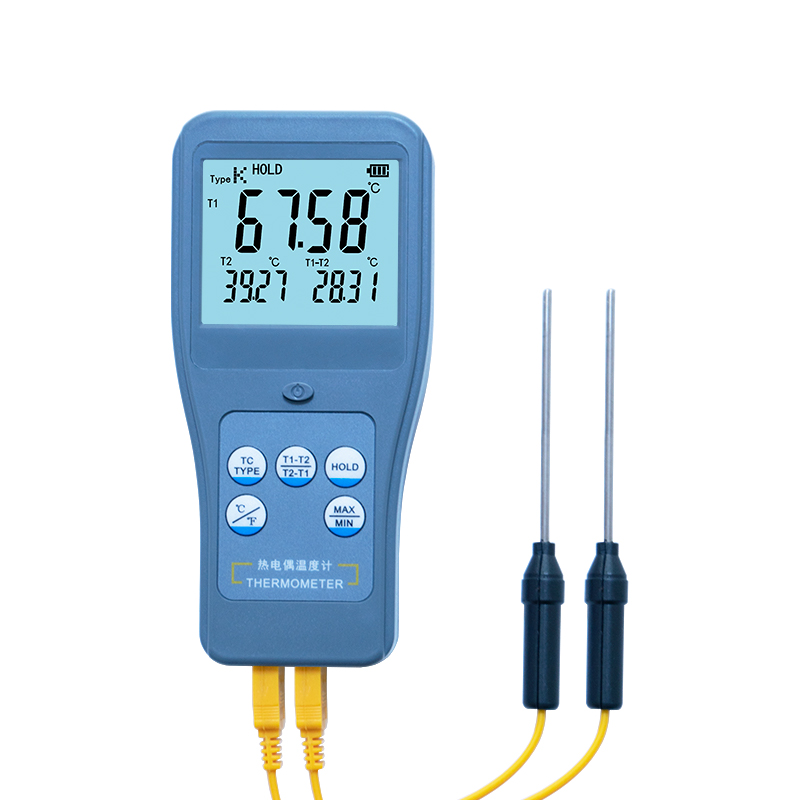

RTM1102 Dual-Channel Thermocouple Thermometer

Introduction

It is a high-precision of dual-channel digital thermocouple thermometer, which uses thermocouples as sensors to measure temperature signals, can meet the needs of different industries. Used to measure the temperature of liquids, gases, solids and surface temperature. And there are a variety of thermocouple types to choose from, which are widely used in industrial production, research and development experiments, food processing, refrigerated storage, metal industry and other occasions.

Features

• Large LCD with display. It can display three values at the same time.

• Thermocouple(K/J/E/T/R/S/N) temperature measurement.

• The types of dual-channel thermocouple are switched simultaneously.

• The measured values of 2 channels and T1-T2/T2-T1 value difference are displayed at the same time.

• Temperature unit (°F/°C).

• 0.01 high resolution.

• High accuracy.

• With maximum and minimum values function.

• With the displayed values hold function.

• With battery indication function.

• With automatic power off function.

Specifications

Display	Backlit LCD
Thermocouple Type	K/J/E/T/R/S/N-type
Range(K-type)	-200~1372°C (-328~2501.6°F)
Accuracy(K-type)	>-100°C, ±(0.1% of reading+0.5°C) <-100°C, ±(0.3% of reading+0.5°C)
Resolution	0.01
Sampling Channel	2 Channels
Unit	°C/°F
Operating Conditions	Temperature: 0~50°C (32~122°F) Humidity: 0~80%RH(No Condensation)
Storage Conditions	Temperature: -10~60°C (14~140°F) Humidity: 0~90%RH(No Condensation)
Power Supply	4×1.5V AAA(UM-4) Battery
Size	1708031mm
Weight	186g(Not Including Batteries)

Standard Accessories

Main Unit	1
TP-02 Thermocouple (φ3*75mm, K-type, Range: -50~400℃)	2
Manual	1
Carrying Case	1

Note:

The default type of thermocouple in the standard accessories is K-type. If other types of thermocouple are needed, please specifying when placing order.

The warranty period is 12 months
