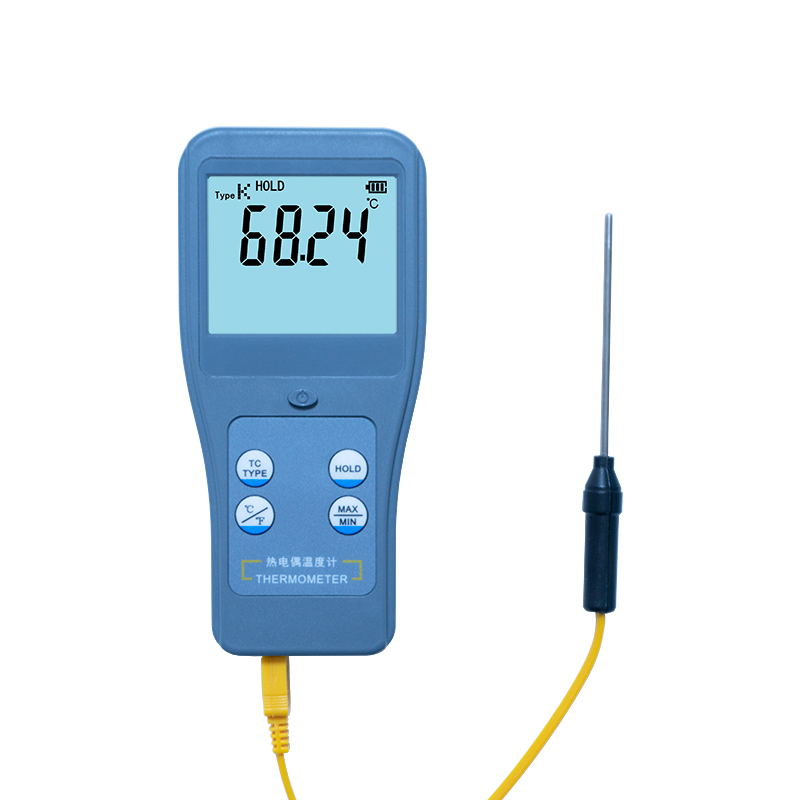

RTM1101 High-accuracy Thermocouple Thermometer
0 likes
China [CN] Introduction
It is a
high-precision of intelligent thermocouple thermometer, which uses
thermocouples as sensors to measure temperature signals, can meet the needs of
different industries. Used to measure the temperature of liquids, gases, solids
and surface temperature. And there are a variety of thermocouple types to
choose from, which are widely used in industrial production, research and
development experiments, food processing, refrigerated storage, metal industry
and other occasions.
Features
•
Large LCD with display.
•
Intelligent design, easy to use.
•
Thermocouple(K/J/E/T/R/S/N) temperature measurement.
•
Temperature unit (°F/°C).
• 0.01
high resolution.
• High
accuracy.
• With
maximum and minimum values function.
• With
the displayed values hold function.
• With
battery indication function.
• With
automatic power off function.
Specifications
|
Display |
Backlit LCD |
|
Thermocouple
Type |
K/J/E/T/R/S/N-type |
|
Range(K-type) |
-200~1372°C (-328~2501.6°F) |
|
Accuracy(K-type) |
>-100°C,
±(0.1% of reading+0.5°C) <-100°C,
±(0.3% of reading+0.5°C) |
|
Resolution |
0.01 |
|
Sampling Channel |
1 Channel |
|
Unit |
°C/°F |
|
Operating
Conditions |
Temperature:
0~50°C (32~122°F) Humidity: 0~80%RH(No
Condensation) |
|
Storage
Conditions |
Temperature:
-10~60°C (14~140°F) Humidity:
0~90%RH(No Condensation) |
|
Power Supply |
4×1.5V AAA(UM-4)
Battery |
|
Size |
170*80*31mm |
|
Weight |
182g(Not
Including Batteries) |
Standard
Accessories
|
Main Unit |
1 |
|
TP-02 Thermocouple (φ3*75mm, K-type, Range: -50~400℃) |
1 |
|
Manual |
1 |
|
Carrying Case |
1 |
Note:
The default type of
thermocouple in the standard accessories is K-type. If other types of
thermocouple are needed, please specifying when placing order.
The warranty period is
12 months
