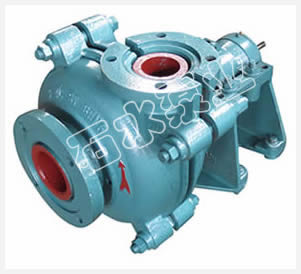

Horizontal centrifugal slurry pump, wear-resistant and durable

The AH type slurry pump is a horizontal, vertical, medium-type, double-casing slurry pump. The pump body and pump cover are equipped with replaceable metal linings. The lining material is made of high-chromium wear-resistant alloy material. The lining can be used until it wears out, extending the maintenance cycle and reducing operating costs. The outlet direction of the pump can be rotated and installed at 8 angles.

Bearing assembly: The bearing assembly of the pump adopts a cylindrical structure, which is convenient for adjusting the gap between the impeller and the front guard plate, and can be disassembled as a whole during maintenance. The bearings are lubricated with grease.

Shaft seal (seal): The pump shaft seal types include packing seal, impeller seal and mechanical seal.

Transmission mode: V-shaped triangle belt transmission, elastic coupling transmission, gear reduction box transmission, hydraulic coupling transmission, variable frequency drive device, thyristor speed regulation, etc. Among them, V-shaped triangle belt drives include CL, CV, CR, ZL, ZV, and ZR drives.

Overall performance: The pump has a wide performance range, good cavitation performance, and high efficiency. Multi-stage series connection technology can be used to meet long-distance transportation. Current-carrying parts are available in a variety of metals and with increased depth. Using multiple speeds and variations, the pump operates under optimal industrial and mining conditions. It has long service life and high operating efficiency, and can meet many types of harsh conveying conditions.
