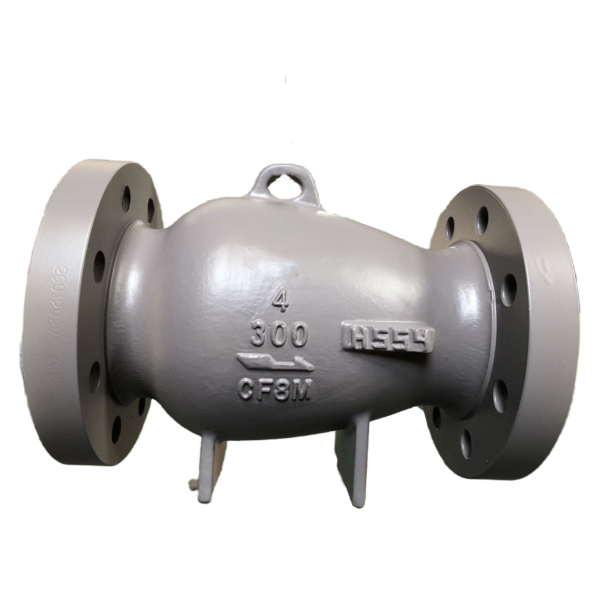

ASTM A351 CF8M Axial Flow Check Valve
0 likes
China [CN] xial Flow Check Valve, 4 Inch, 300 LB, Flanged RF, CF8M Body
Valve Description:
1843001 Axial Flow Check Valve 4SA3RCF8M
Design Standard: API 594, API 6D
Structure: Non Slam Check, streamlined body
Nominal size: 4 Inch
Nominal class: 300 LB
End Connection: Flanged RF
Operation: /
Body Material: ASTM A351 CF8M
Trim Material: A182 F316, X-750 Spring
Face to face: API 594, ASME B16.10
Test and inspection: API 598
Key Features: Water Hammer Protection, High flow efficiency, Low noise, Short Pattern/long pattern available, Fast Response
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel, Aluminum bronze,Ti
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ
Working temperature: -29℃ - +400℃
Operation: /
