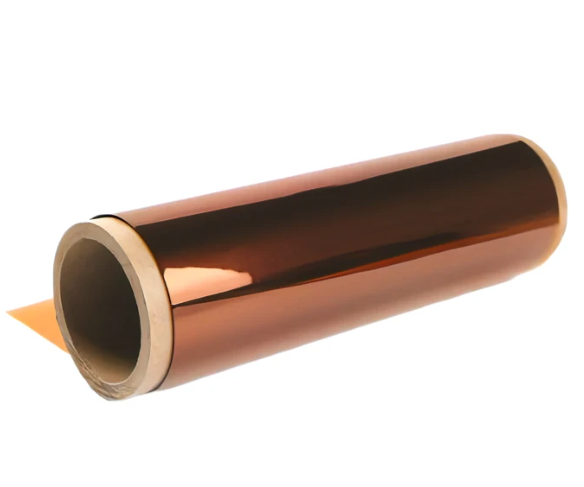

Class H High Quality Pi Electric Insulation Polyimide Film for Insulation Material

본문 바로가기


Home > Product > Class H High Quality Pi Electric Insulation Polyimide Film for Insulation Material
Product
Class H High Quality Pi Electric Insulation Polyimide Film for Insulat...
Posting date : May 25, 2023
Membership
Free Member Scince May 25, 2023
FOB Price
35.5dollars/kg
Min. Order Quantity
10kg
Supply Abillity
5000kg/month
Port
Qingdao
Payment Terms
T/T
Package
usual size
Keyword :
Category
Contact
Herman
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
YIHAI
Model Number
YH25
HS-CODE
-
Package & Delivery Lead Time
Package
usual size
Delivery Lead Time
7-15days
Specifications
Type of Certification
Rohs
Reference no.
CANML2215443301
Name.
Polyimide film Rohs test
Issued By
SGS
Start Date (validity period)
2022-07-22
End Date (validity period)
2023-07-22

Detailed Description

Standard of Performance

Thickness 25um

Tensile strength(TD) ≥170Mpa

Tensile strength(MD)≥165Mpa

Elongation≥40 %

Young's Modulus≥3.1Gpa

Dielectric Constant 3.5±0.4

Dissipation Factor≤0.004

Volume Resistivity>10^12

Surface Resistivity>10^14

Dielectric Strength≥200 v/um

Thermal Expansivity 25±3ppm/℃

Shrinking Percentage ≤0.12%

Hydroscopicity ≤2.2%

Density 1.44±0.2g/cm³

Wetting Tension 58mN/mStandard of Performance

Thickness 25um

Tensile strength(TD) ≥170Mpa

Tensile strength(MD)≥165Mpa

Elongation≥40 %

Young's Modulus≥3.1Gpa

Dielectric Constant 3.5±0.4

Dissipation Factor≤0.004

Volume Resistivity>10^12

Surface Resistivity>10^14

Dielectric Strength≥200 v/um

Thermal Expansivity 25±3ppm/℃

Shrinking Percentage ≤0.12%

Hydroscopicity ≤2.2%

Density 1.44±0.2g/cm³

Wetting Tension 58mN/m
