Lab Laboratory Reverse Osmosis Ultrapure Deionized Water Machine Price For Hospital Biochemistry Analyzer

본문 바로가기


Home > Product > Lab Laboratory Reverse Osmosis Ultrapure Deionized Water Machine Price For Hospital Biochemistry Analyzer
Product
Lab Laboratory Reverse Osmosis Ultrapure Deionized Water Machine Price...
Posting date : Mar 01, 2023
Membership
Free Member Scince Jun 27, 2018
FOB Price
793USD
Min. Order Quantity
1set
Supply Abillity
200 set/month
Port
Chinese port
Payment Terms
100% in advance
Package
carton
Keyword :
Category
Contact
Monica
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
ZHUOYUE
Model Number
ZYTEST
HS-CODE
8421-21
Package & Delivery Lead Time
Package
carton
Detailed Description
Products Description

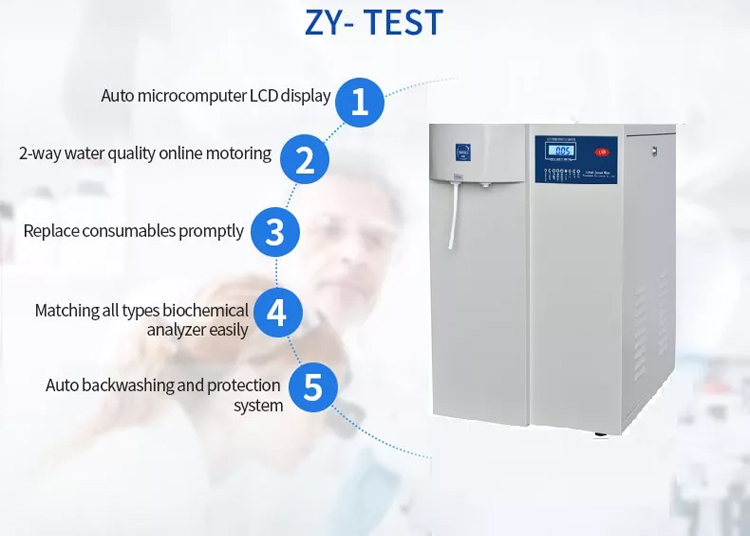

ZYTEST Ultra Pure Water Equipment
Our model ZYTEST is for double distilled water for hosptial biochemistry analyzer and hosptial clinical laboratory. ZYTEST with
the conductivity meter ( <0.1um/cm) produced pure water as double distilled water.

Model list



Model
Configurati on grade
l
ll
Benchtop (L/H)
ZYTEST-l-10/20L
 ZYTEST-ll-10/20L
Floor style (L/H)
ZYTEST-l-20/40/60/80/100/120/150L
 ZYTEST-ll-20/40/60/80/100/120/150L
Inlet water source
city tap water(TDS<200ppm),water pressure2.0-4.0kg/cm2 , water 10-30℃
 Capacity
10/20/40/60/80/100/120/150L
DI product water quality (uS/cm)
Conductivity < 0.1~1 uS/cm (on-line monitoring), converted resistivity ≥ 1~10 MΩ.cm Micro particulate matter (≥0.2um) < 1/ml,
bacterial removal rate ≥99%

UP quality
(MΩ.cm)
Resistivity 18.25MΩ.cm (online monitoring)
Heavy metal ions<0.1ppb
Total Organic Carbon (TOC)<20ppb
Microparticles (≥0.2um)
Configuration
Single display table + DI column
Dual display + ultra-purification system
Product size(mm)
510*380*570mm (Benchtop)
530*420*1120mm(Floor style)
Product weight(kg)
30-35kg(Benchtop)
40-65kg(Floor style)
Power(W)
 30W-50W(Benchtop)
50W-100W(Floor style)




Application
Hitachi, Olympus, Beckman, Toshiba, Roche, Abbott, Bayer, Mindray, Dire, Deling, Liba, Kehua, Senlong, Neusoft, Redu, Innovax and
other imported and domestic brands of biochemical instrument water ;
1. Routine biochemical analysis and testing in the
laboratory;
2. Routine quantitative analysis such as physical and chemical testing;
3. Water for immunohistochemical analysis of
pathology department

Hitachi, Olympus, Beckman, Toshiba, Roche, Abbott, Bayer, Mindray, Dire, Deling, Liba, Kehua, Senlong, Neusoft, Redu, Innovax and
other imported and domestic brands of biochemical instrument water ;
1. Atomic absorption (AA);
2. Atomic Emission (AES);
3. High performance liquid chromatography (HPLC);
4. High-performance liquid
chromatography (HPLC) and other instruments with high analytical precision to analyze water;


Water storage tank
A. 10L/20L (Benchtop) comes standard with a 3.2G pressure pure water tank;
B. 20L/40L/60L (Floor style) comes standard with a 40L
pure water tank;
C. 80L/100L/120L/150L (Floor style) comes standard with a 100L pure water tank;
Note: The size of the water tank can be selected according to the user's situation.
Special configuration
Power: 100~150W
Weight: 90~150Kg
Host size 1: D700*W520*H1470 mm

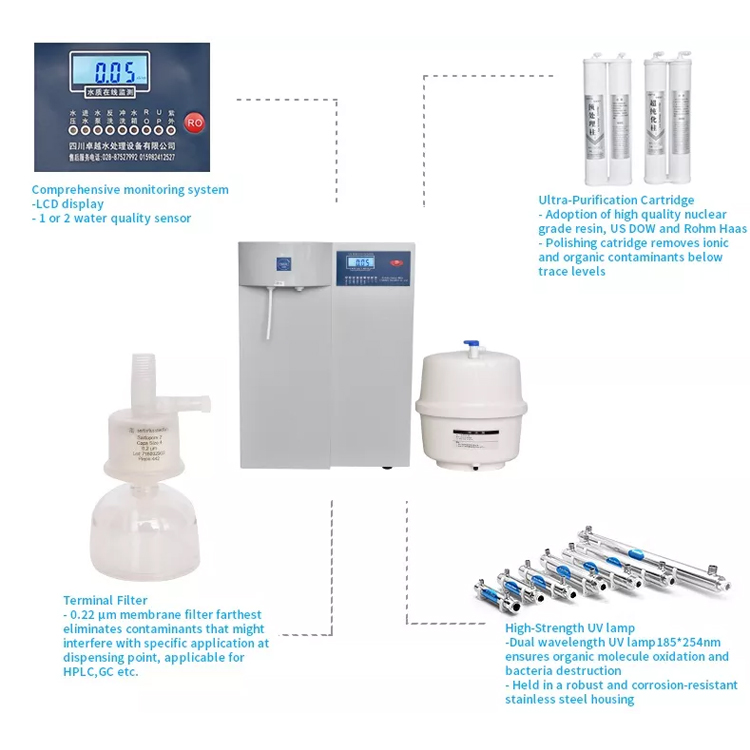

Product features
*Automatic control, smart and safe;
*3 stage fitration pretreatment system PP+AC+PP to systematically and completely filtrate silt, rust, suspended matter, algo,
colloid, particles, residual chlorine, odor, color, etc.
*More than 99% desalinization rate of RO membrane can efficiently remove salt ions, organics, microparticles, heavy metal ion,
impollutant matter, etc.
*Filling specialty polishing resin ultrapure cartridge stably produce grade II ultrapure water(0.1-1us/cm).
*Automatic buzzer alarm: substandard water, water shortage.
*Safety system: post, water full shutdown, low pressure.
*Automatic RO membrane flushing to extend the working life.
*On-line monitoring conductivity meter to show the water quality timely.

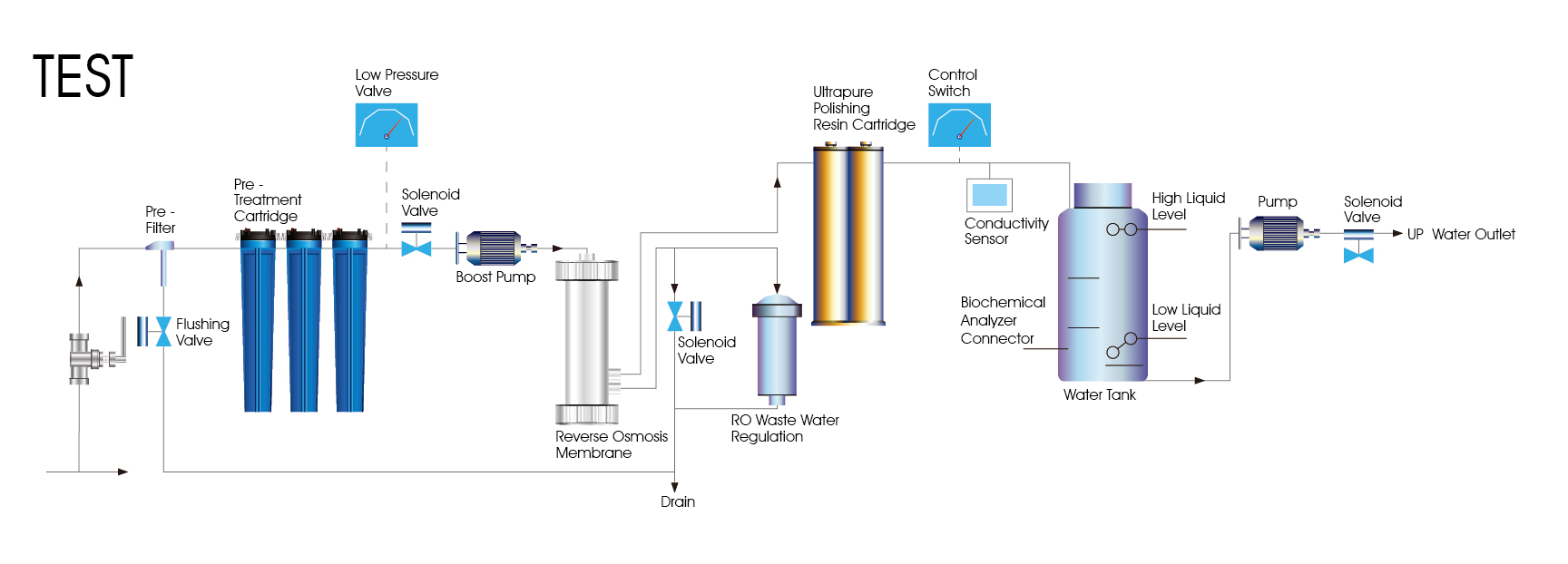

The process flow
1. Automatic control.
2. Pre-treatment system:
PP filter (DN: 5 μm or 1um): efficiently filtrate silt, rust, suspended matter, algo, colliod and all impurities whose diameter is
over than 5 μm in the raw water.
AC filter: to adsorb residual chlorine, pigment, off-flavor, and part of organic matters.
G-PHOS: remove calcium ions and maganesium ions to prevent scalling.
3. RO membrane: This filtration technique make use of pressure differential as impetus to produce deionized water by RO membrane.
Desalinization rate: ≥ 99.5%.
4. Ultra-pure cartridge: replace positive ion and negative ion by resin. It can steadily produce 18.25MΩ.cm ultra-pure water.
5. UV lamp(185nm&254nm): disinfection and sterilization. Efficiently reduce TOC.
6. Terminal filter: 0.2um or 0.22um bore diameter can filtrate colliod, microorganism, particles, endotoxin, bacteria, etc.
7. UF module: MWCO5000Dalton filtrate ecdotoxin, bacteria and virus;

Product exhibition
