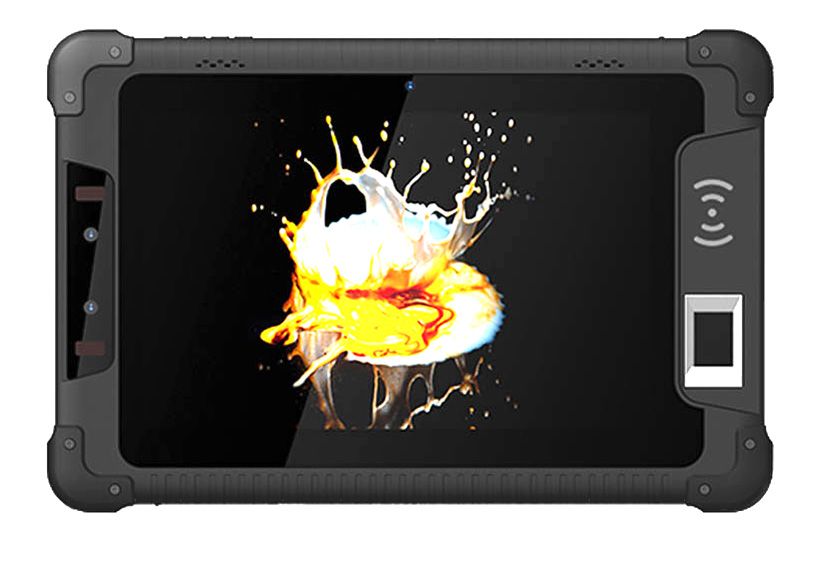

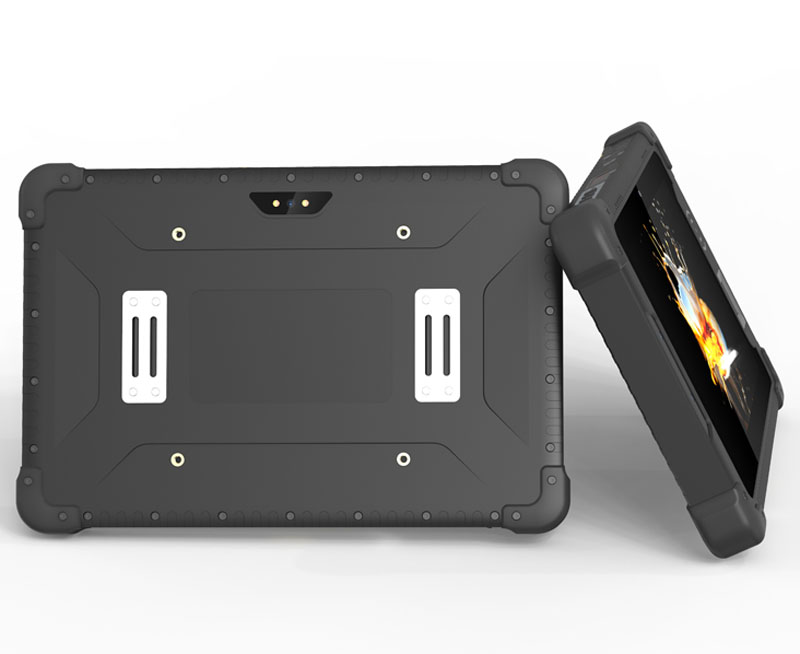

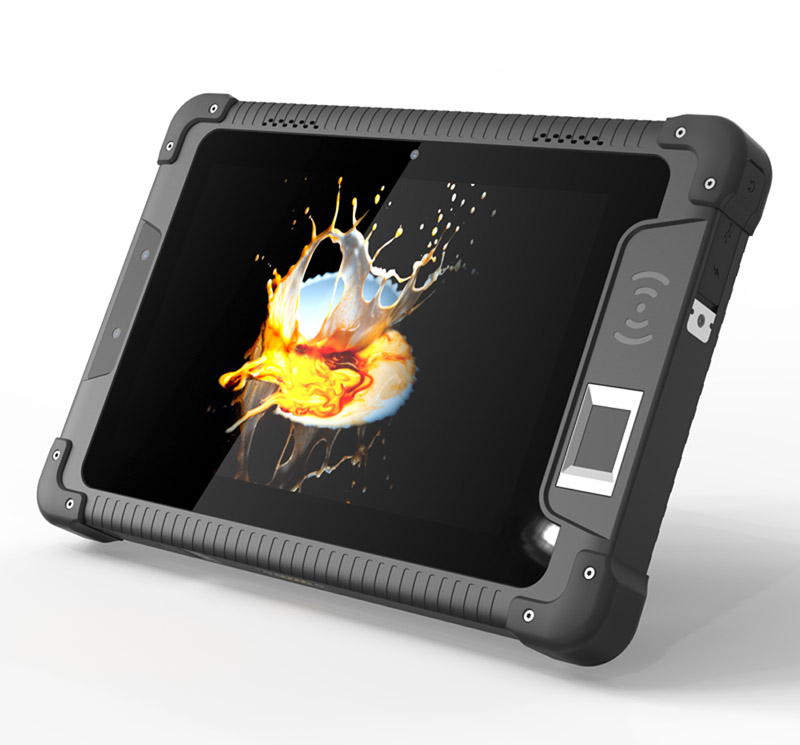

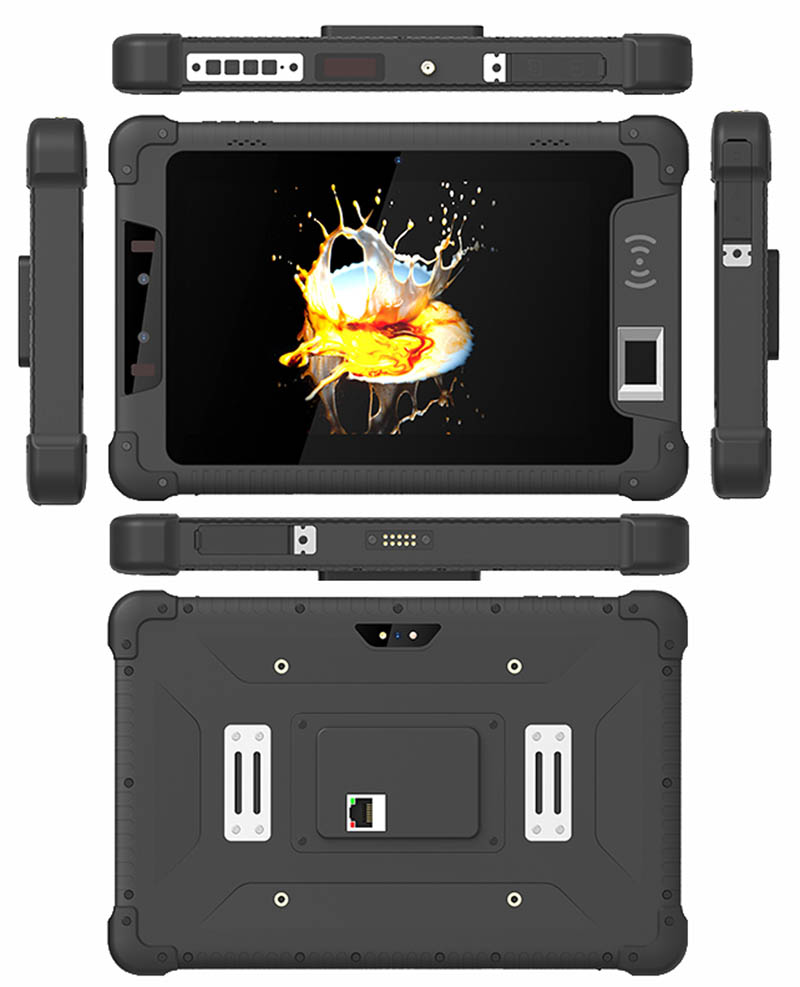

8 inch rugged tablets cheapest factory android 9 1280*800pixels 4G TDD/FDD LTE with optional NFC FBI fingerprint scanner 2D barcode scanner
Model No: HR818A
Specification:
CPU |
MediaTek MT6761 Quad-core 2.0GHz |
Operation System |
Android 9.0 without GMS |
Display |
8inch Capacitive Multi-touch IPS HD screen 1280*800pixels |
4G Networks |
Support GSM: B5/B8/B3/B2=850/900/1800/1900Mhz,3G WCDMA: B1/B5/B8=2100/850/900MHZ 4G TDD-LTE: B34/B39/B40/B41;4G FDD LTE: B1/B2/B3/B5/B7/B8/B20; American Version 4G FDD: B4 or B17 is optional For >=1000units order. |
Two Cameras |
Front 2.0MP camera, Back 5.0MP Camera,5MP+13MP cameras is optional for bulk order |
Memory & Storage |
2GBram+32GBRom (default),3GBram+32GB Rom for MT6761 is optional,4GBram+64GBRom for MT6761,is optional for bulk order |
Wireless network |
Wifi 802.11 a/b/g/n/ac 2.4G+5.0Ghz dual-band wifi and Blutooth V4.1 |
Navigation |
Support GPS+Glonass+Beidou |
Battery |
Built-in 3.7V / 8200mah lithium battery |
USB RJ45 Lan Ethernet adapter |
10M/100M,is optional,or built-in Lan ethernet port (the battery will lessen 4000mah) is optional |
Rugged Durability |
Waterproof and dustproof rate:IP65; Ruggedness:comply with 1.0Meter dropproof |

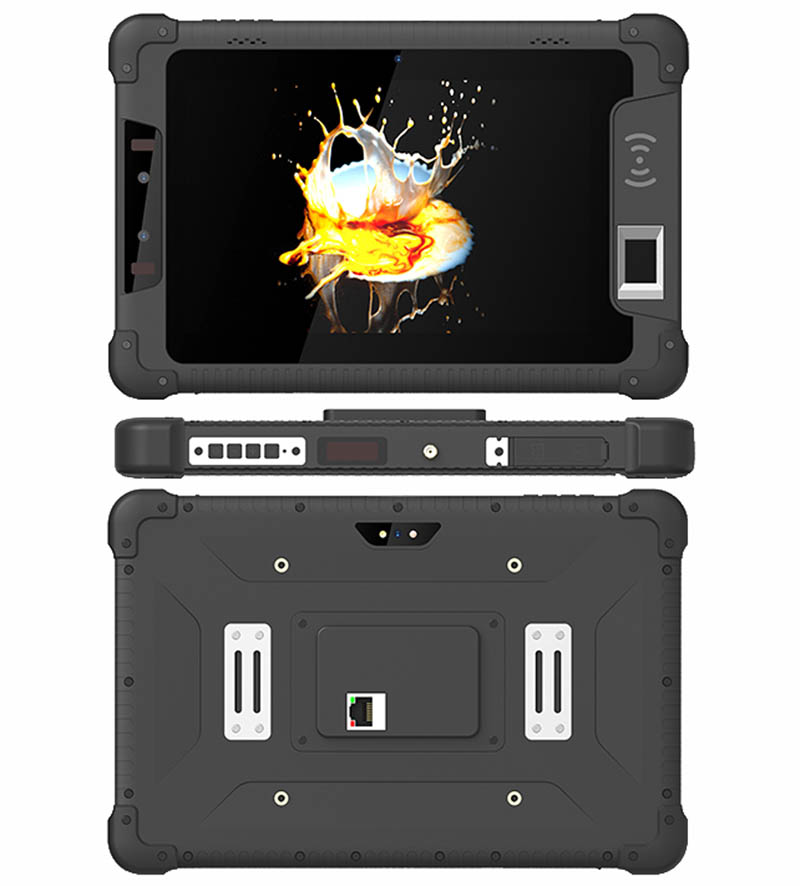

I/O ports |
1*Type-C USB Port,1*USB2.0 Host (or customize 1*RS232 Serial port,optional),1*Earphone jack,1*TF card slot,1* Ethernet RJ45 Port (optional),1*Sim card Slot |
Front NFC |
NXP PN548,13.56Mhz,support ISO1444A/B,ISO15693,Mifare; is optional |
2D Barcode Scanner |
GROW GM65 2D barcode scanner or Honeywell N3680 2D barcode scanner is optional |

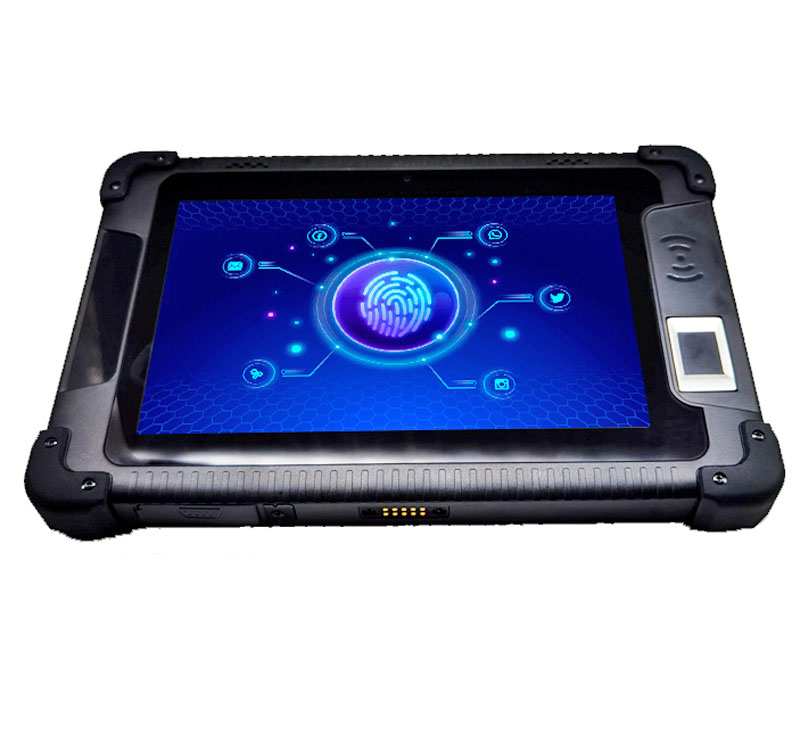

FBI Fingerprint scanner |
508dpi,256*288pixels,512-bit,1000 storage,safe rate=grade 5th,FAR<0.001%,FBI Certificated, is optional |
UHF RFID |
2.4Ghz RFID NRF52832 is optional |
Lora Wifi |
433Mhz,is optional |
IRIS module |
dual-eyes,5V,recognition time <1s,usage distance 10-20cm,support ISO8583,ISO/IEC 19794-6,is optional |
Hand Belt |
is optional |

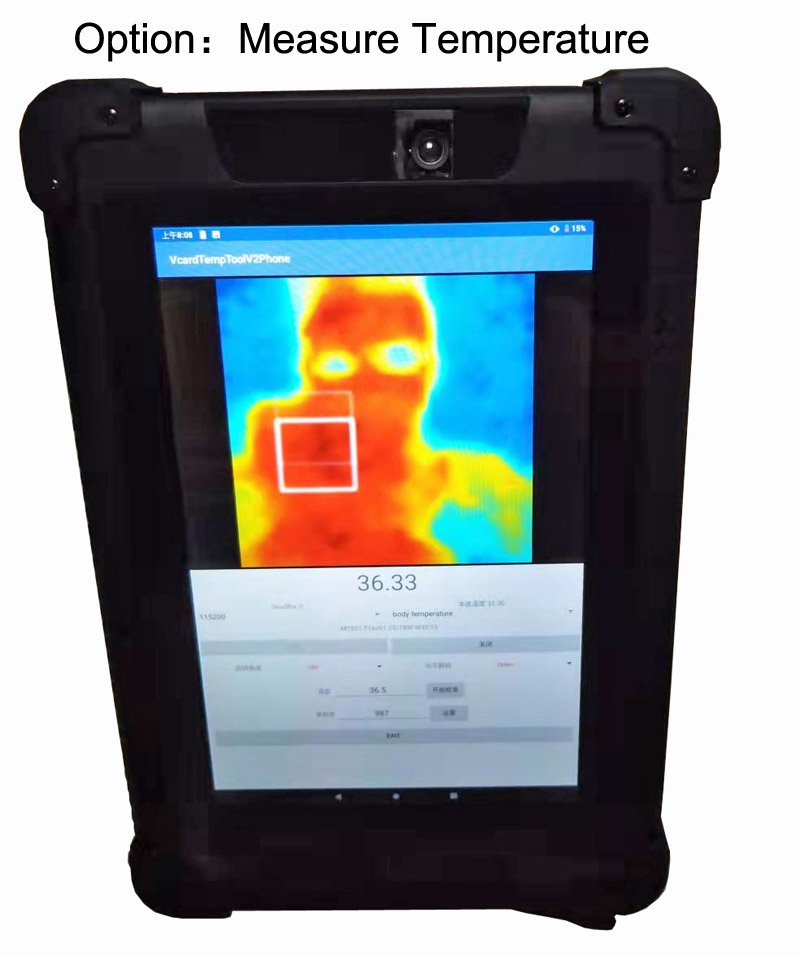

Infrared Thermometer module |
Using infrared temperature sensor and advanced software algorithm,measure the temperature of the objects,measurement accuracy can be achieved ±0.3℃, is optional. |
Vehicle holder and Charger or Wall bracket |
VESA design,are optional |

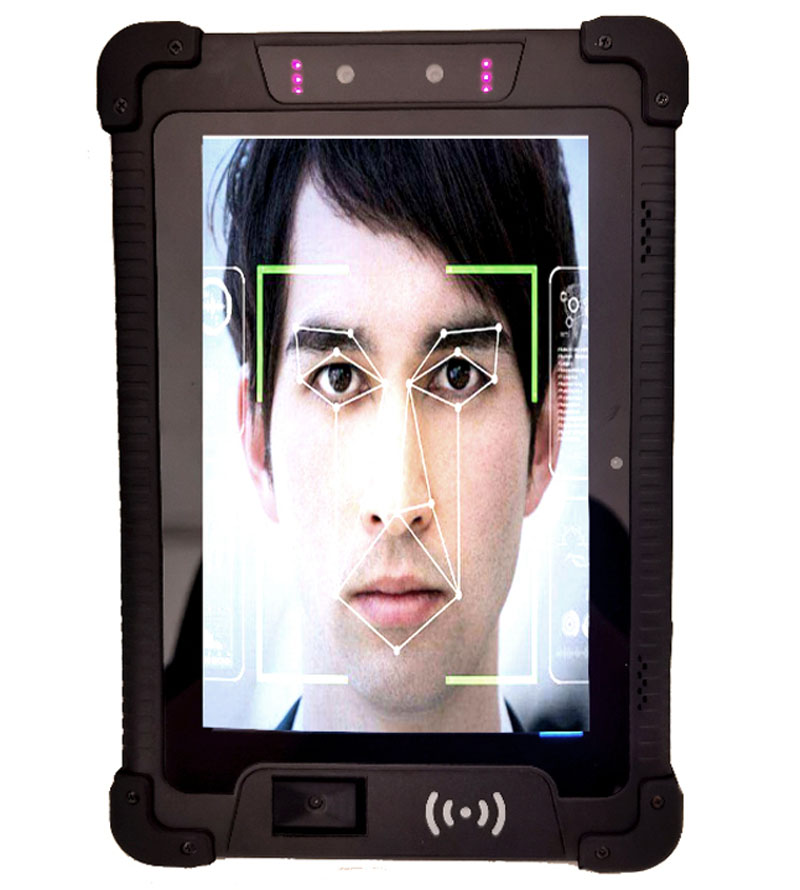

Face Recognition module |
is optional |
Dimension |
about 250*166*26mm. |
1.CPU: MediaTek MT6761 Quad-core 2.0GHz;
2.Operation System: Android 9.0 without GMS,
3.Display: 8inch Capacitive Multi-touch IPS HD screen 1280*800pixels;
4.4G Networks: Support GSM: B5/B8/B3/B2=850/900/1800/1900Mhz,3G WCDMA: B1/B5/B8=2100/850/900MHZ;
4G TDD-LTE: B34/B39/B40/B41;4G FDD LTE: B1/B2/B3/B5/B7/B8/B20;
American Version 4G FDD: B4 or B17 is optional For >=1000units order.
5.Two Cameras: Front 2.0MP camera, Back 5.0MP Camera,5MP+13MP cameras is optional for bulk order;
6.Memory & Storage: 2GBram+32GBRom (default),3GBram+32GB Rom for MT6761 is optional,4GBram+64GBRom for MT6761,is optional for bulk order;
7.Wireless network:Wifi 802.11 a/b/g/n/ac 2.4G+5.0Ghz dual-band wifi and Blutooth V4.1;
8.Navigation: Support GPS+Glonass+Beidou;
9.Battery: Built-in 3.7V / 8200mah lithium battery;
10.USB RJ45 Lan Ethernet adapter: 10M/100M,is optional,or built-in Lan ethernet port (the battery will lessen 4000mah) is optional;
11.Rugged Durability: Waterproof and dustproof rate:IP65; Ruggedness:comply with 1.0Meter dropproof;
12.I/O ports: 1*Type-C USB Port,1*USB2.0 Host (or customize 1*RS232 Serial port,optional),1*Earphone jack,1*TF card slot,1* Ethernet RJ45 Port (optional),1*Sim card Slot;
13.Front NFC: NXP PN548,13.56Mhz,support ISO1444A/B,ISO15693,Mifare; is optional;
14.2D Barcode Scanner: GROW GM65 2D barcode scanner or Honeywell N3680 2D barcode scanner is optional;
15.FBI Fingerprint scanner: 508dpi,256*288pixels,512-bit,1000 storage,safe rate=grade 5th,FAR<0.001%,FBI Certificated, is optional;
16.UHF RFID: 2.4Ghz RFID NRF52832 is optional.
17.Lora Wifi:433Mhz,is optional.
18.IRIS module:dual-eyes,5V,recognition time <1s,usage distance 10-20cm,support ISO8583,ISO/IEC 19794-6,is optional.
19.Hand Belt: is optional.
20.Infrared Thermometer module:Using infrared temperature sensor and advanced software algorithm,measure the temperature of the objects,measurement accuracy can be achieved ±0.3℃, is optional.
21.Vehicle holder and Charger or Wall bracket:VESA design,are optional;
22.Face Recognition module: is optional;
23.Dimension:about 250*166*26mm.
