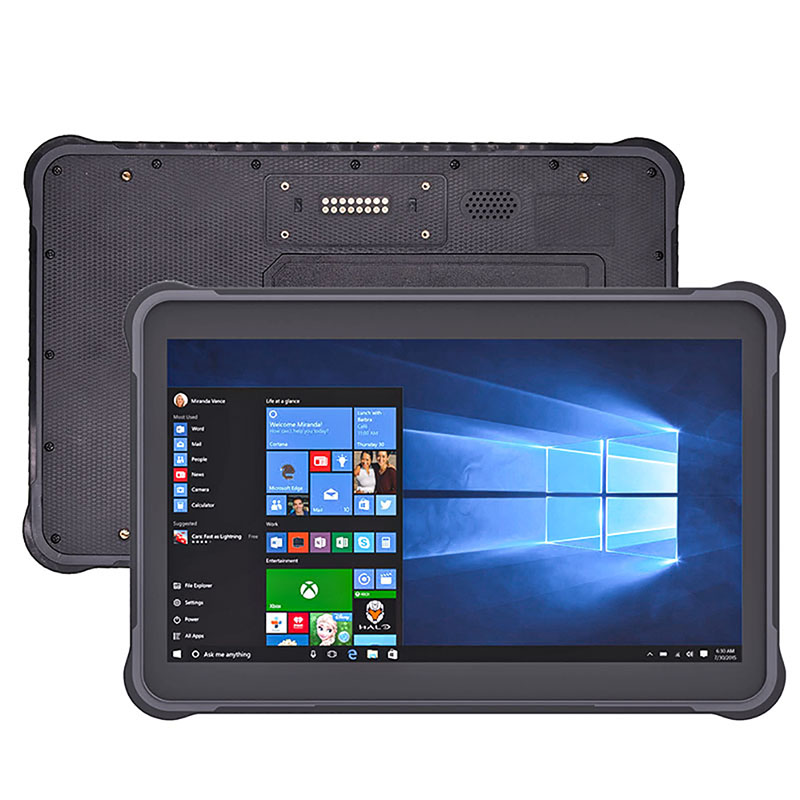

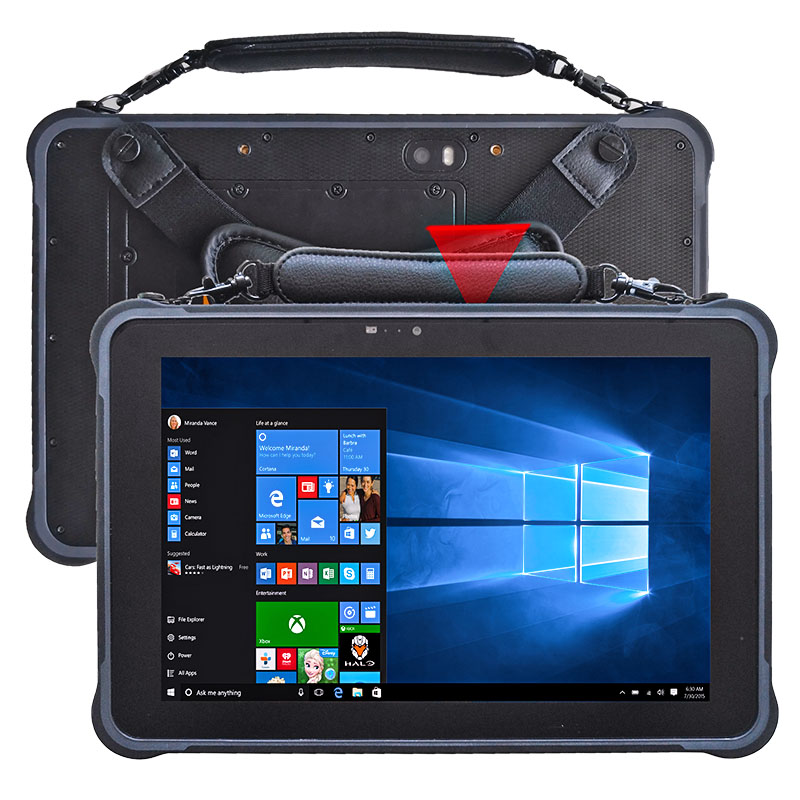

HiDON cheapest factory 10.1 inch win10 pro IP65 8+256GB rugged tablet pc with NFC Barcode scanner UHF RFID and fingerprint
Model No: HR1011-i5
Specification:
CPU |
Intel Amber Lake i5-8200Y, 1.3Ghz,Turbo 3.9GHz; |
Operation System |
original win10 Pro |
Display & Touch Screen |
10.1 inch Capacitive Multi-touch IPS screen,FHD 1920*1200 Pixels;500cd/m2,normal sunlight readable; |
Two Cameras |
Front 5.0M camera, Back 13.0M Camera; |
Memory & Storage |
8GBram DDR + 256GB EMMC |
Wireless Network |
802.11 a/b/g/n/ac wireless (2.4G/5.0Ghz Dual-band wifi) and Blutooth4.2 |
Battery |
Built-in 7.6V/6000mAh Lithium Battery, removable,work 9-10 hours; |
I/O Ports |

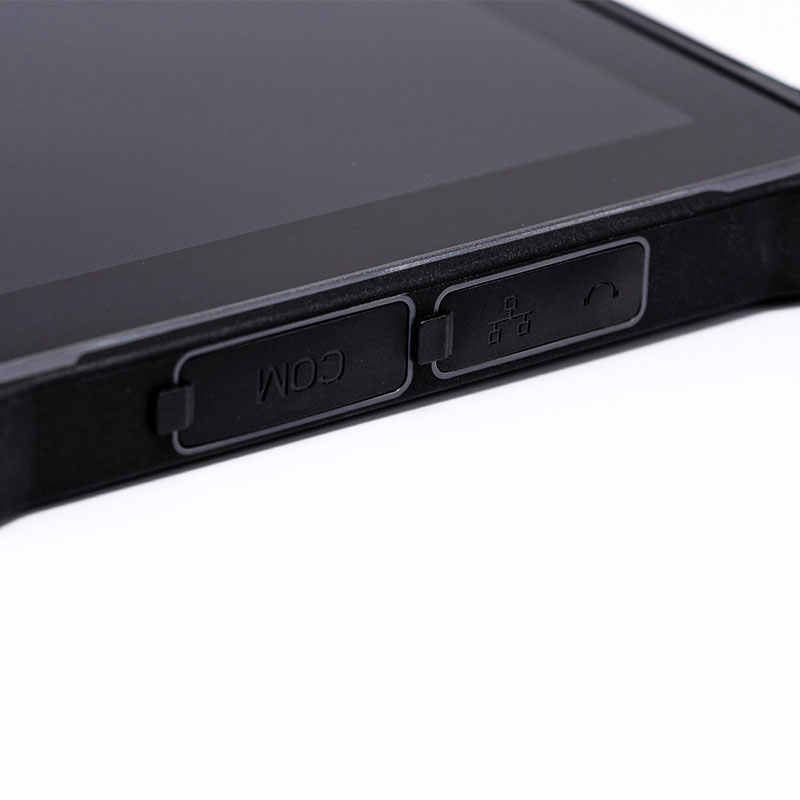

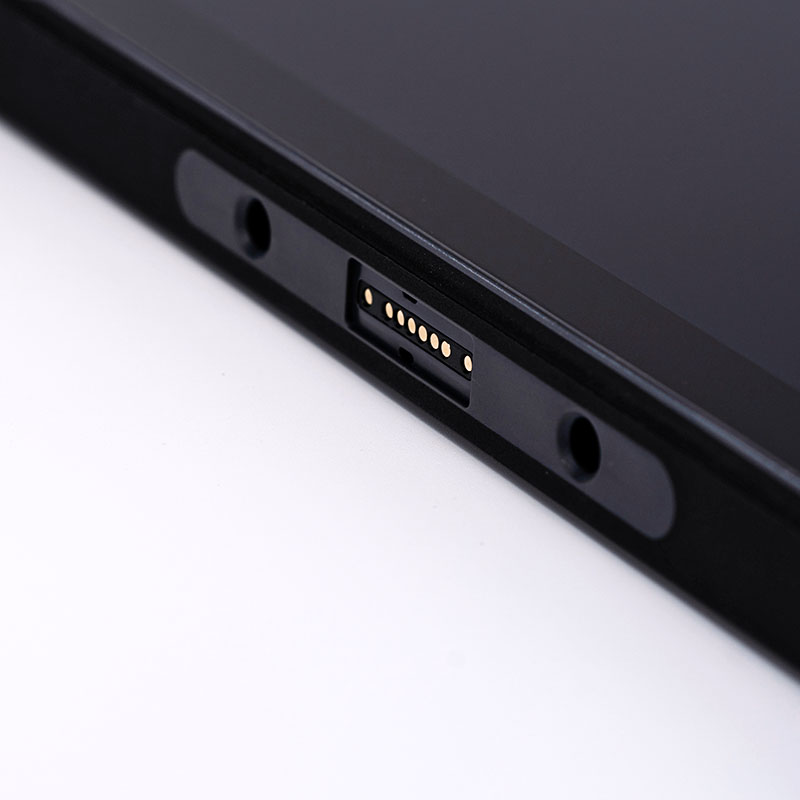

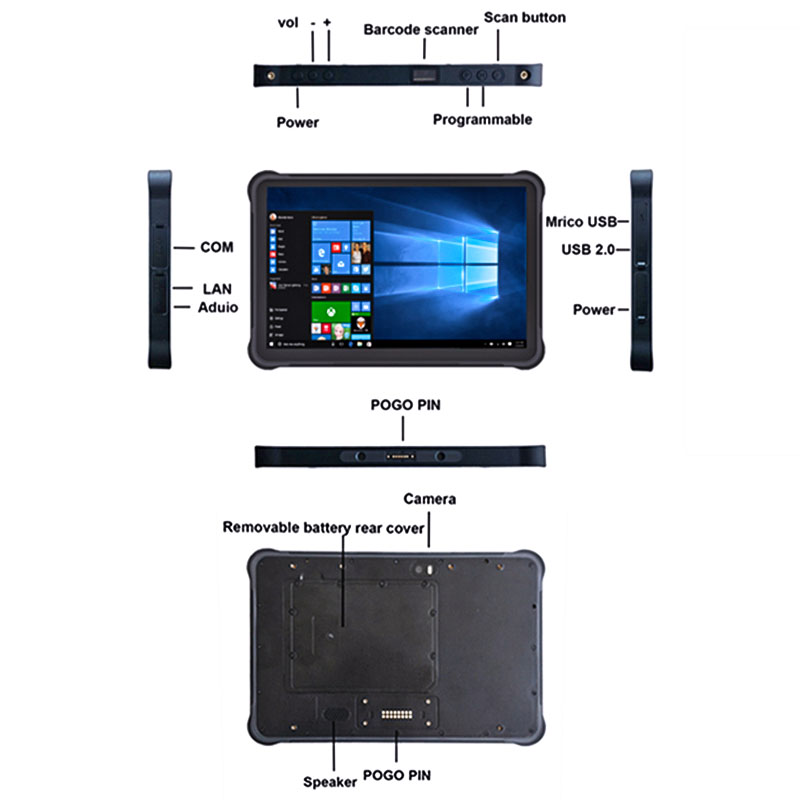

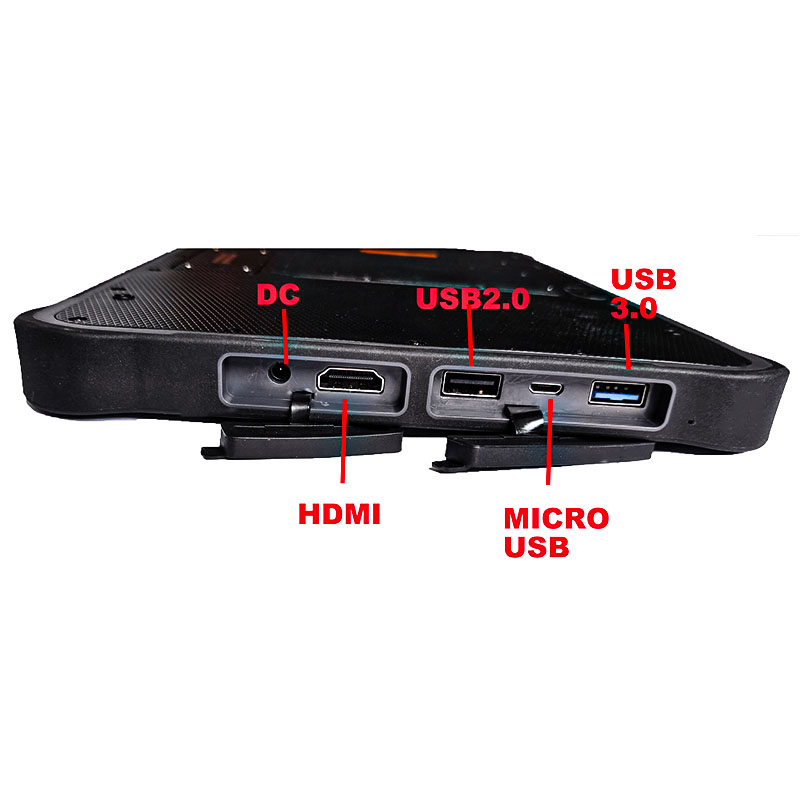

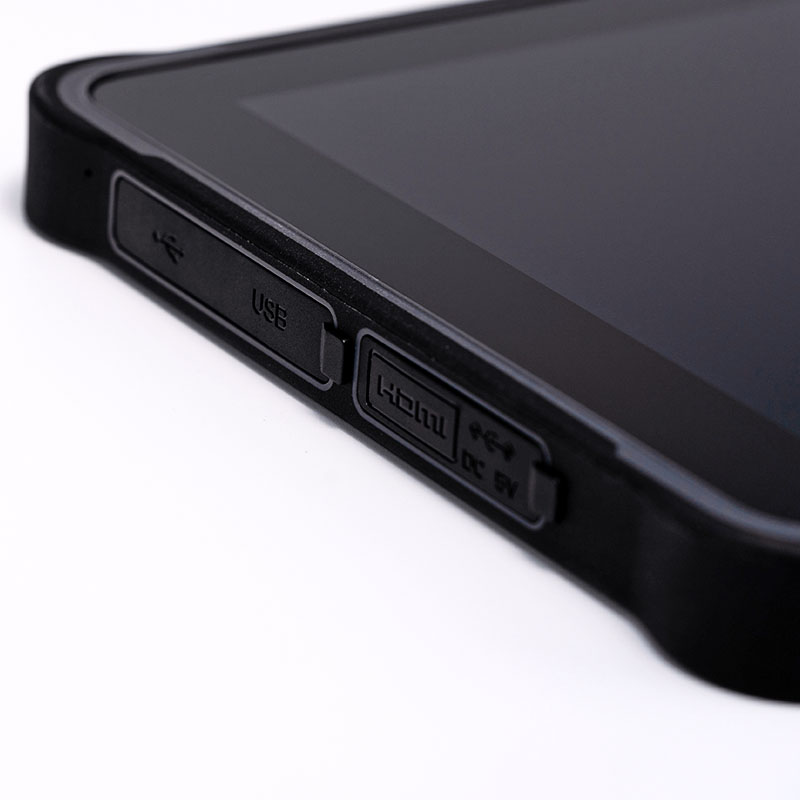

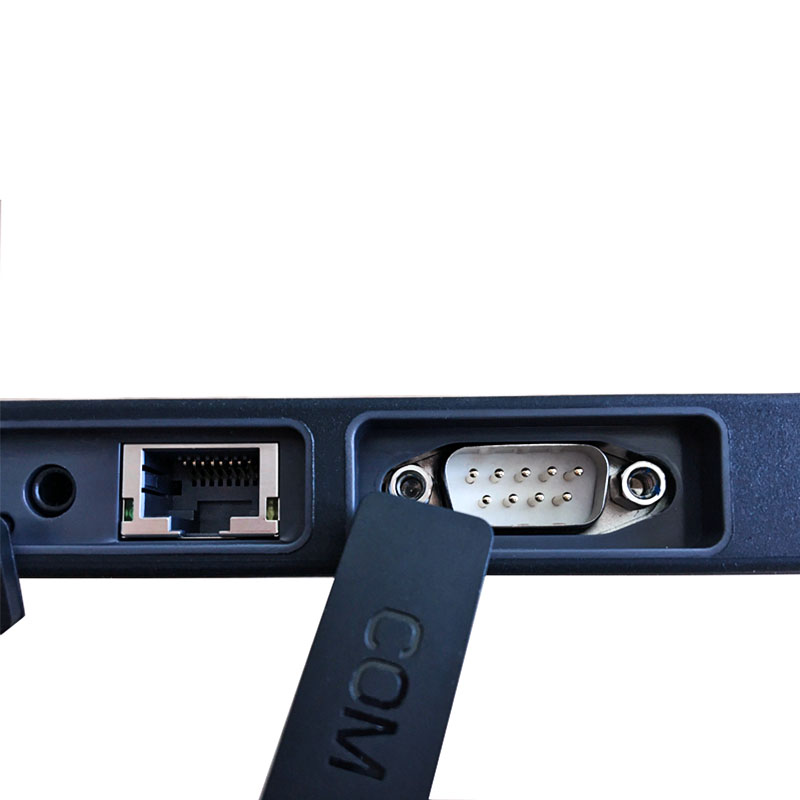

1*DC port,1*10M/100M RJ45 Ethernet Port,1*DB9 RS232 Serial port,2*USB3.0 Host,1*TF Card Slot, 1*HDM-I Port, 1*earphone jack, 1*Sim Card Slot,1*16-pin POGO-PIN port(5V/3.3V,support 1*USB2.0+1*UART TTL),1*8-pin POGO-PIN port(5V/3.3V,support 1*USB2.0+1*UART TTL+1*charge); |
Rugged Durability |
Waterproof and dustproof rate:IP65 (IP67 design); Ruggedness: comply with 1.0 Meter dropproof |
4G LTE Network |
Support 4G FDD LTE Bands:B1/B2/B3/B4/B5/B7/B8/B28;TDD-LTE: B40;3G WCDMA:B1/B2/B4/B5/B8;Support 2G GSM: B5/B8/B3/B2; |
Navigation |
support GPS; |
NFC |
13.56MHZ,Support ISO/IEC14443A/B,ISO/IEC15693,MIFARE,Felica,Readable distance:2-4cm |
Barcode Scanner |
2D Honeywell N3680 barcode scanner is optional |
Docking Station |
1*RJ45 Ethernet Port +2*USB2.0+1*RS232+1*DC port docking is optional |
Fingerprint scanner |
small consumption-level fingerprint scanner supporting unlock function or big industrial-level fingerprint scanner, is optional |
UHF RFID |
902-928Mhz (default) or 865-868MHZ,Output power range: 18-26dBm; sensitivity < -70dBm; reading distance: 1.0 meter or 3-4 meters, is optional |
Vehicel charger or holder |
is optional |
Dimention |
273*182*20mm |
1.CPU: Intel Amber Lake i5-8200Y, 1.3Ghz,Turbo 3.9GHz;
2.Operation System: original win10 Pro;
3.Display & Touch Screen: 10.1 inch Capacitive Multi-touch IPS screen,FHD 1920*1200 Pixels;500cd/m2,normal sunlight readable;
4.Two Cameras: Front 5.0M camera, Back 13.0M Camera;
5.Memory & Storage: 8GBram DDR + 256GB EMMC;
6. Wireless Network: 802.11 a/b/g/n/ac wireless (2.4G/5.0Ghz Dual-band wifi) and Blutooth4.2;
7.Battery: Built-in 7.6V/6000mAh Lithium Battery, removable,work 9-10 hours;
8.I/O Ports:1*DC port,1*10M/100M RJ45 Ethernet Port,1*DB9 RS232 Serial port,2*USB3.0 Host,1*TF Card Slot, 1*HDM-I Port, 1*earphone jack, 1*Sim Card Slot,1*16-pin POGO-PIN port(5V/3.3V,support 1*USB2.0+1*UART TTL),1*8-pin POGO-PIN port(5V/3.3V,support 1*USB2.0+1*UART TTL+1*charge);
9.Rugged Durability: Waterproof and dustproof rate:IP65 (IP67 design); Ruggedness: comply with 1.0 Meter dropproof.
10.4G LTE Network: Support 4G FDD LTE Bands:B1/B2/B3/B4/B5/B7/B8/B28;TDD-LTE: B40;3G WCDMA:B1/B2/B4/B5/B8;Support 2G GSM: B5/B8/B3/B2;
11.Navigation: support GPS;
12.NFC:13.56MHZ,Support ISO/IEC14443A/B,ISO/IEC15693,MIFARE,Felica,Readable distance:2-4cm;
13.Barcode Scanner:2D Honeywell N3680 barcode scanner is optional;
14.Docking Station: 1*RJ45 Ethernet Port +2*USB2.0+1*RS232+1*DC port docking is optional.
15.Fingerprint scanner: small consumption-level fingerprint scanner supporting unlock function or big industrial-level fingerprint scanner, is optional;
16.UHF RFID: 902-928Mhz (default) or 865-868MHZ,Output power range: 18-26dBm; sensitivity < -70dBm; reading distance: 1.0 meter or 3-4 meters, is optional;
17.Vehicel charger or holder: is optional;
18.Dimention: 273*182*20mm.
