Everun ERE10Pro 1t Mini small farm home hydraulic Digger crawler excavator machine with bucket for sale

본문 바로가기


Home > Product > Everun ERE10Pro 1t Mini small farm home hydraulic Digger crawler excavator machine with bucket for sale
Product
Everun ERE10Pro 1t Mini small farm home hydraulic Digger crawler excav...
Posting date : Jul 22, 2022
Membership
Free Member Scince Jul 11, 2022
FOB Price
$4,300-$4,900
Min. Order Quantity
1
Supply Abillity
5000 units per year
Port
Qingdao
Payment Terms
30 days
Package
4 units in a 20GP and 8 units in a 40HC
Keyword :
Category
Contact
Lexie Duan
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
EVERUN
Model Number
ERE10PRO
HS-CODE
8429-52
Package & Delivery Lead Time
Package
4 units in a 20GP and 8 units in a 40HC
Detailed Description

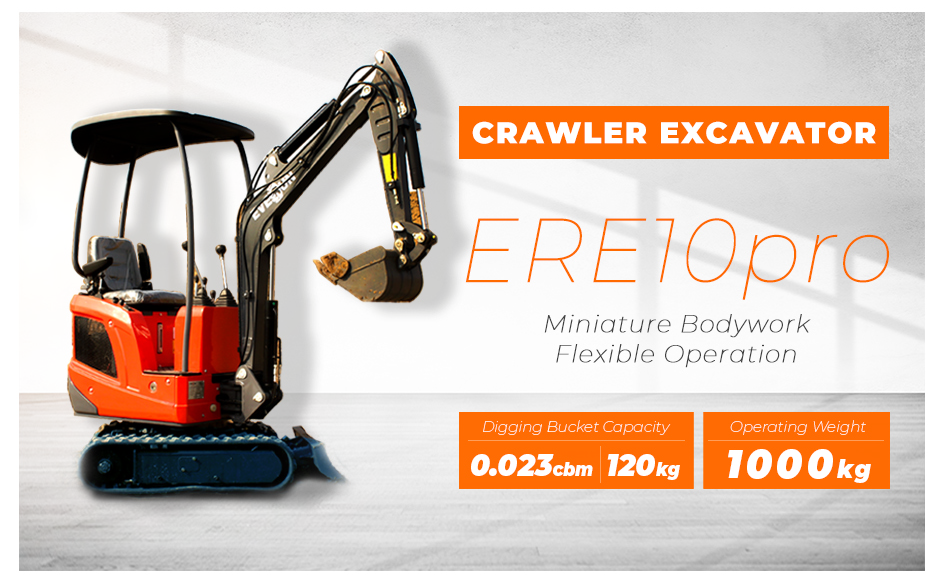

Model
ERE10 Pro
Operating Weight
1000kg
Digging bucket capacity
0.023cbm/120kg
Digging bucket width
410mm

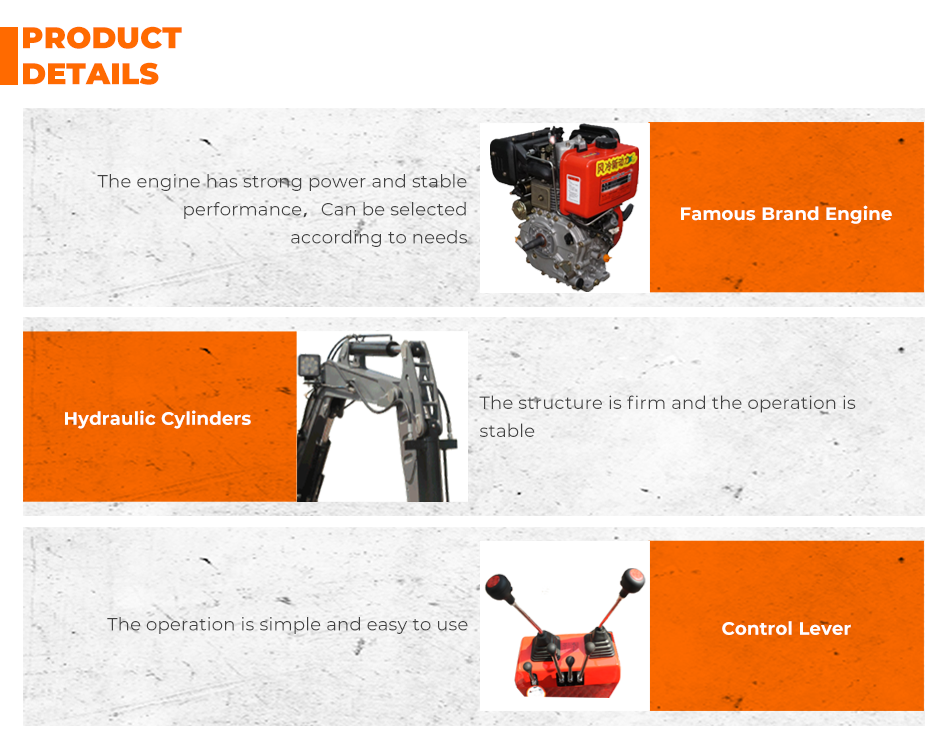

Engine
CHANGCHAI-192FAM
Rated power
7.5kw
Displacement
6ml/r
Bore stroke
single cylinder, fan cool
Main pump
ZANEDA
Pump flow
18L/min
Valve
BEIFANG
Swing motor
Hydro Man(ZMP-1-200)
Traveling motor
EATON 612-4173-1
MAIN DEMENSIONS
Overall dimension( LxWxH)
3127x950x2195mm
Wheelbase
920 mm
Total length of track
1220mm
Platform ground clearance
380 mm
Platform back turning radius
810mm
Chassis width
870mm
Track width
180mm
Chassis ground clearance
94.5mm
Bucket digging force
9.7kn
Arm digging force
8.6kn
Rubber track height
310mm
OPERATING RANGE
Max. Digging depth
1735mm
Max. Vertical digging depth
1581mm
Max. Digging height
3006mm
Max. Dumping height
2248mm
Max. Digging radius on ground
3224mm
Min. Rotation radius
1430mm
Max. Upgrade height of bulldozer blade
200mm
Max. Digging depth of bulldozer blade
200mm

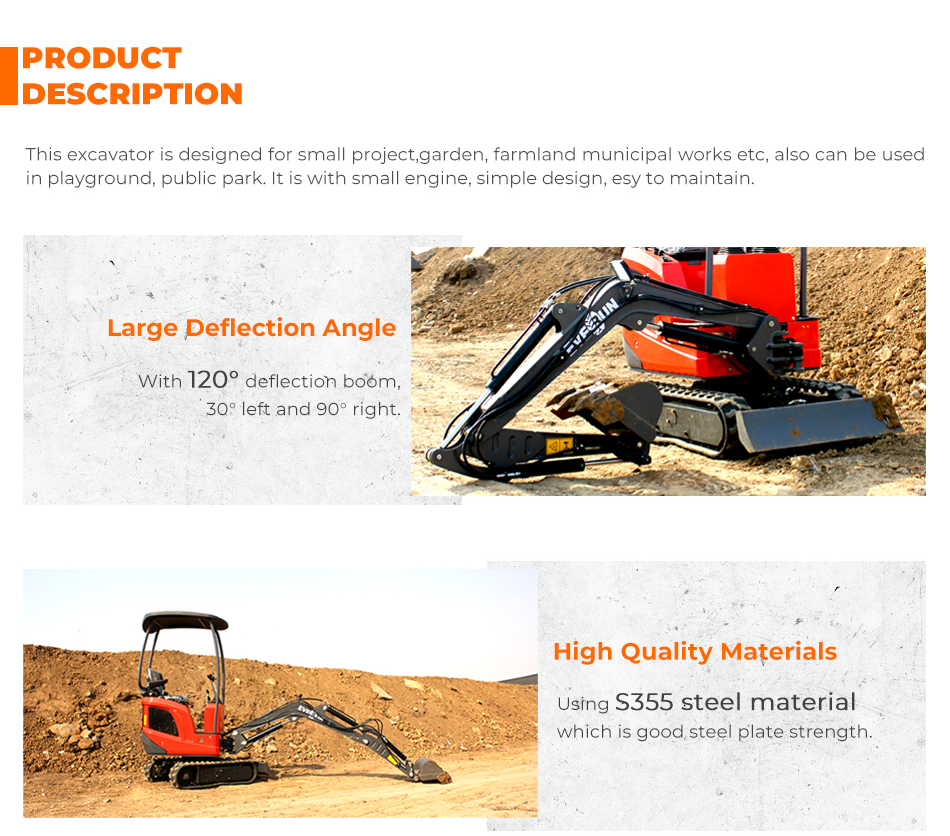

Boom deflection angle (left)
30°
Boom deflection angle (right)
90°
Min. Rotation radius
1200 mm
Max. Upgrade height of bulldozer blade
165 mm
Max. Digging depth of bulldozer blade
170 mm
(9) Boom Deflexion (Left/ Right)
75°/ 45°
(10) Tail Swing Radius
1125mm
(11) Front Min. Swing Radius
1720mm
