1. New Rops & Fops cabin, safety, spacious and comfortable.
2. New frame, wider steel plate is stronger.
3. New engine hood, Better heat dissipation.
4. Articulated floating oscillating structure, flexible in tough road and could protect joint to extend the working life.
5. The battery is placed above the rear frame for easy replacement.
6. Cast iron rear counterweight makes the vehicle more stable during operation.

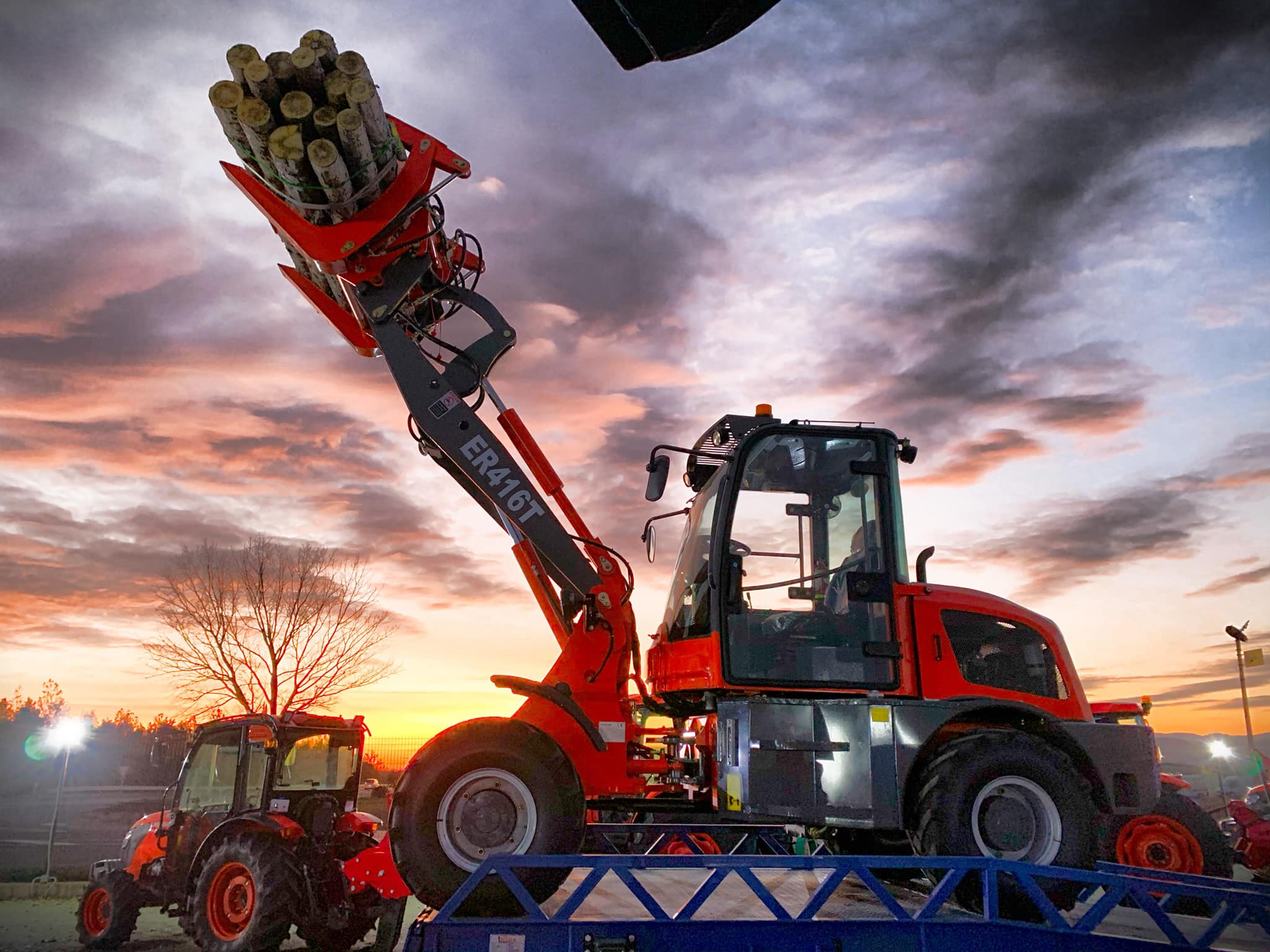

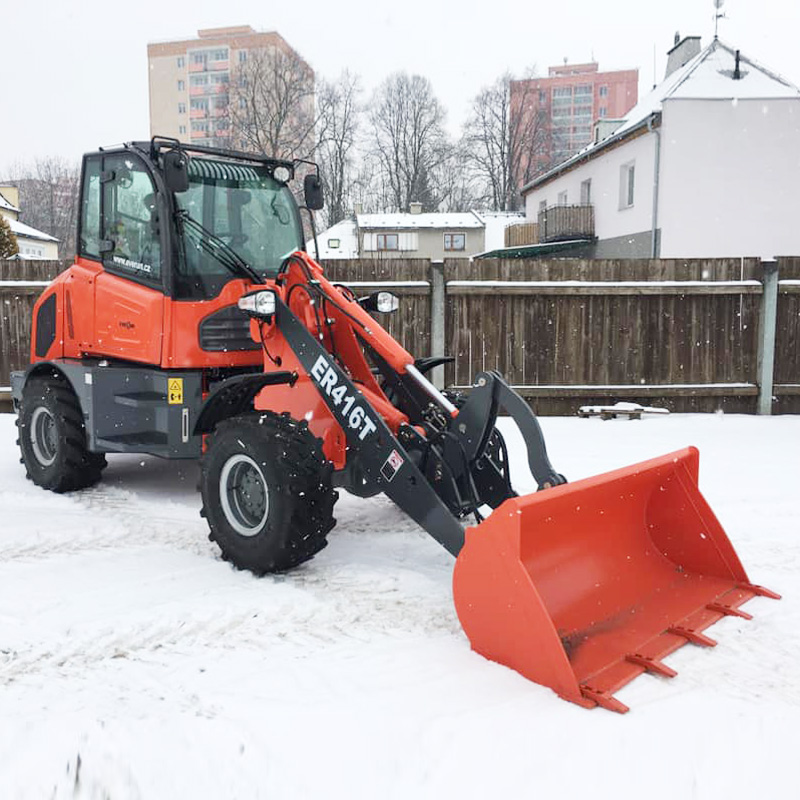

Main Standard Equipments for ER416T Wheel Loader
* Bigger Rops & Fops cabin(with patent);
* Standard bucket;
* Xinchai 498 engine(euro3);
* Backward camera, USB, Radio, Heater;
* Swing Articulated System;
* Quick hitch;
* Electric joystick;
* Hydraulic pressure checking system;
* Air brake;
* Floating function;
* 23.5/70-16 agricultural tyres
* Free service spare parts.
Options for ER416T Wheel Loader
+ E4 lamp
+ LED working light
+ Air conditioner
+ Varta anti-freeze battery
+ Tyre chain
+ Extra hydraulic line
Specifications for ER416T Wheel Loader
1.0 Engine Details |
|
(1) Model: | Xinchai 498 BT1 (Euro 3 and EPA Certificate) |
(2) Engine Type: | In-line arrangement, water-cooled, four-cycle diesel engine |
(3) Rated Power: | 36.8KW |
(4) Rated Speed: | 2400 r/min(rpm) |
(4) Fuel Consumption ration in Standard working condition:230g/kw.H | |
2.0 Transmission System |
|
(1) Type: | Fixed-spindle power shift |
(2) Shift gear control oil pressure | 1.2-1.5 MPa |
(3) Rated speed: | 2400(rpm) |
3.0 Bucket |
|
(1) Bucket capacity: | 0.73m3 |
(2) Bucket Width: | 2000mm |
(3) Bucket type: | Heavy-duty bolt on teeth |
(4) Max.Breakout Force: | 28KN |
(5) Max. tractive Force: | 33KN |
(6) Rated load: | 1600kg |
(7) Operating Weight | 4400kg |
4.0 Overall Dimensions |
|
(1) Overall length(bucket on ground) | 5267mm |
(2) Overall Height | 2535mm |
(3) Max.Dumping height: | 2453mm |
(4) Max.Dumping reach: | 891mm |
(5) Min.base to the ground | 275mm |
(6) Overall width | 1850mm |
5.0 Operating Specifications |
|
(1) Steering system: | Articulated frame with hydraulic power steering |
(2) Min.turning radius (outside of wheels): | 4451mm |
(3) Driving system: | Hydraulic converter |
6.0 Brake System |
|
(1) Service Brake | Air-assist hydraulic, disc brake |
(2) Parking Brake | Hand operated |
7.0 Tyre | 23.5/70-15 Agricultural Tires |
8.0 Wheelbase | 1520mm |
9.0 Track: | 1500mm |
