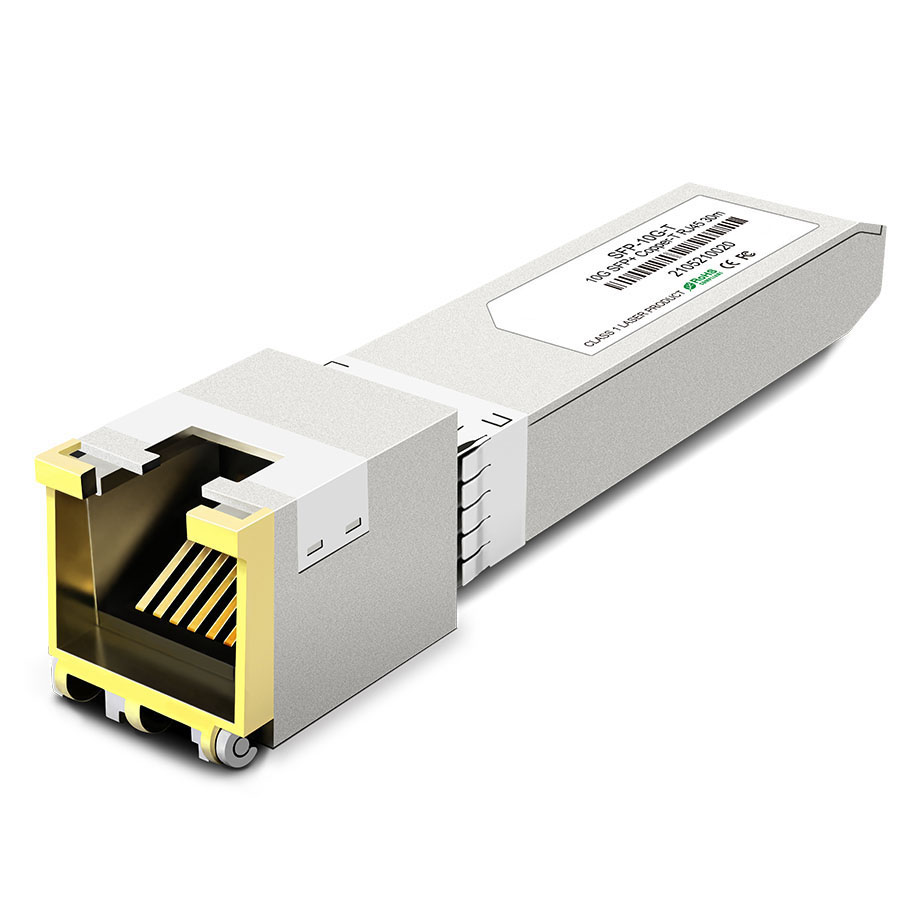

SFP+-10GBASE-T

Posting date : Jul 09, 2022

Click enlarge Image

Membership

Free Member Scince Jul 08, 2022

FOB Price

45$

Min. Order Quantity

Supply Abillity

9999

Port

Shenzhen

Payment Terms

Delivery 100% after payment

Package

Blister tray

Keyword :

10G-T RJ45

Category

MISCELLANEOUS | Optical ph | Optical fi | Optical fi

Contact

James bob

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

FIBERWDM

Model Number

RD-10G-T-RJ45

HS-CODE

9001-10

Package & Delivery Lead Time

Package

Blister tray

Delivery Lead Time

1-3days

Detailed Description

PRODUCT FEATURES

l Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T

l Hot-pluggable SFP footprint

l Compact RJ-45 connector assembly

l RoHS compliant and lead-free

l Single +3.3V power supply

l 10 Gigabit Ethernet over Cat 6a cable

lAmbient Operating temperature: 0°C to +60°C

PRODUCT DESCRIPTION

SFP+-10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3 . SFP+-10GBASE-T uses the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin, PHY IC be reset.

+3.3V Volt Electrical Power Interface

The SFP+-10GBASE-T has an input voltage range of 3.3 V +/- 5%. The 4V maximum voltage is not allowed for continuous operation.

+3.3 Volt Electrical Power Interface
Parameter	Symbol	Min	Typ	Max	unit	Notes/Conditions
Supply Current	Is		700	900	mA	3.0W max power over full range of voltage and temperature. See caution note below
Input Voltage	Vcc	3.13	3.3	3.47	V	Referenced to GND
Maximum Voltage	Vmax			4	V
Surge Current	Isurge		TBD		mA	Hot plug above steady state current. See caution note below

Caution: Power consumption and surge current are higher than the specified values in the SFP MSA

Outline drawing (mm)
