400G QSFP-DD SR8 850nm MPO 100M Optical Transceiver
Posting date : Jul 09, 2022
Membership
Free Member Scince Jul 08, 2022
FOB Price
6800$
Min. Order Quantity
1
Supply Abillity
50
Port
Shenzhen
Payment Terms
Delivery 100% after payment
Package
Blister tray
Keyword :
Category
Contact
James bob
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
FIBERWDM
Model Number
RD-Q400G-DD
HS-CODE
9001-10
Package & Delivery Lead Time
Package
Blister tray
Delivery Lead Time
30days
Detailed Description

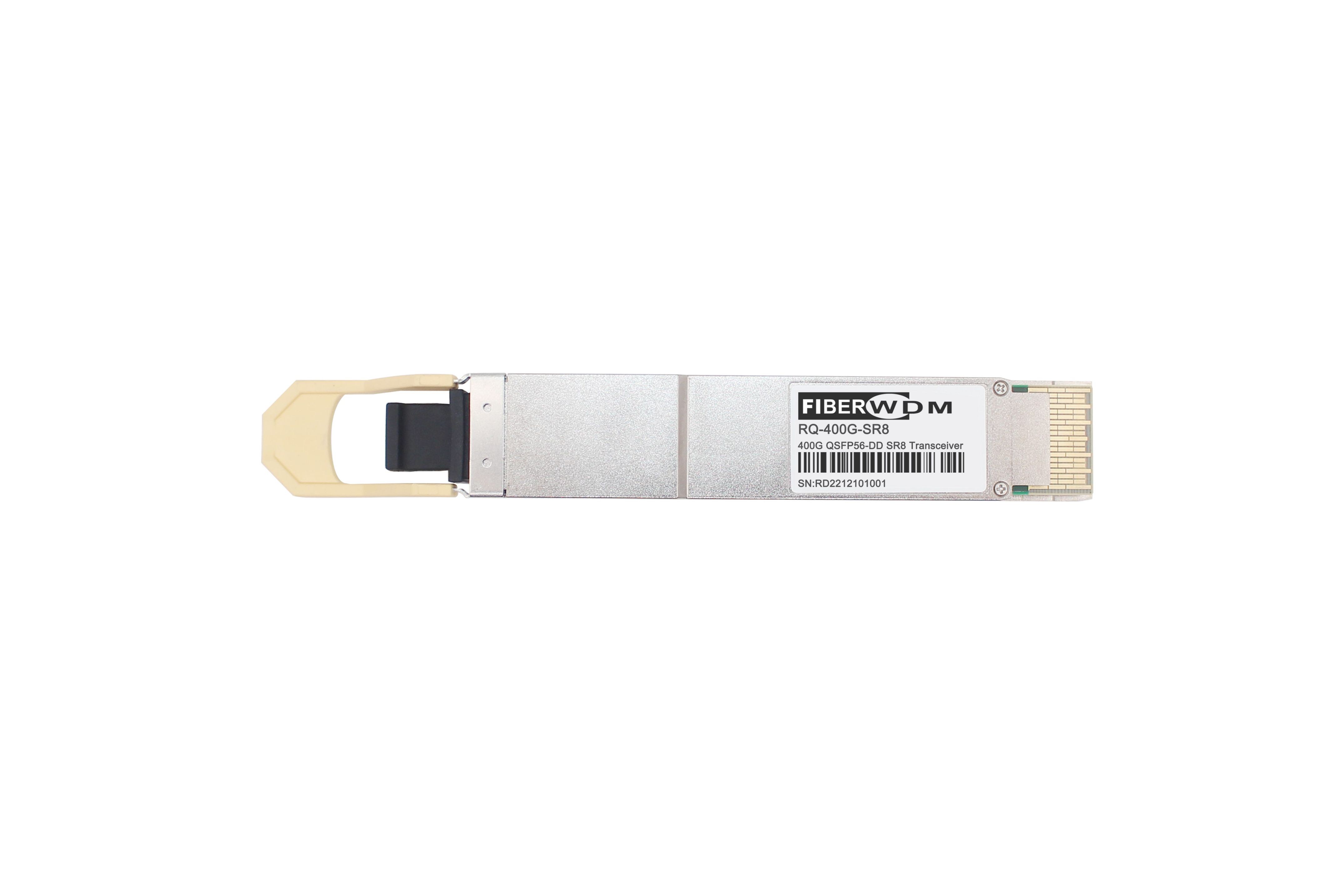

The FIBERWDM 400G QSFP-DD SR8 Transceiver is a 8×50Gbps multi mode fiber, hot pluggable optical transceiver. The module integrates four parallel lanes with baud rate at 26.5625GBd each lane. It can transmit up to 70 m on fiber OM3 fiber or 100 m on OM4 fiber with FEC.

wdmmanufacturers@hotmail.com

Product Features



  • Supports 425Gb/sSR8
  • 8x50G PAM4 VCSEL PIN photo detector
  • Up to 70m transmission with OM3 multimode fiber and 100m transmission with OM4 multi-mode fiber
  • Hot Pluggable QSFP-DD form factor
  • 8x53.125Gb/s with PAM4 electrical interface(400GAUI-8)
  • Support Digital Diagnostic Monitoring interface
  • MPO-16 Connnetor
  • RoHs-10 compliant and lead-free
  • Compliant to QSFP-DD Rev 4.0
  • Single +3.3V power supply
  • Maximum power consumption 9W
  • All-metal housing for superior EMI performance
  • Case operation temperature: 0℃ to+ 70℃/ -40℃ to +85℃



Order information



Product Number

Data Rate(Gb/s)

Wavelength(nm)

Reach(km)

LD

Tx Power(dBm)

PD

Rx Sens(dBm)

Temperature(℃)

RQ-400G-SR8

400

850nm

0.1

VCSEL

-6.0~4

PIN

<-7.0

0~70

RQ-400G-SR8-I

400

850nm

0.1

VCSEL

-6.0~4

PIN

<-7.0

-40~85
