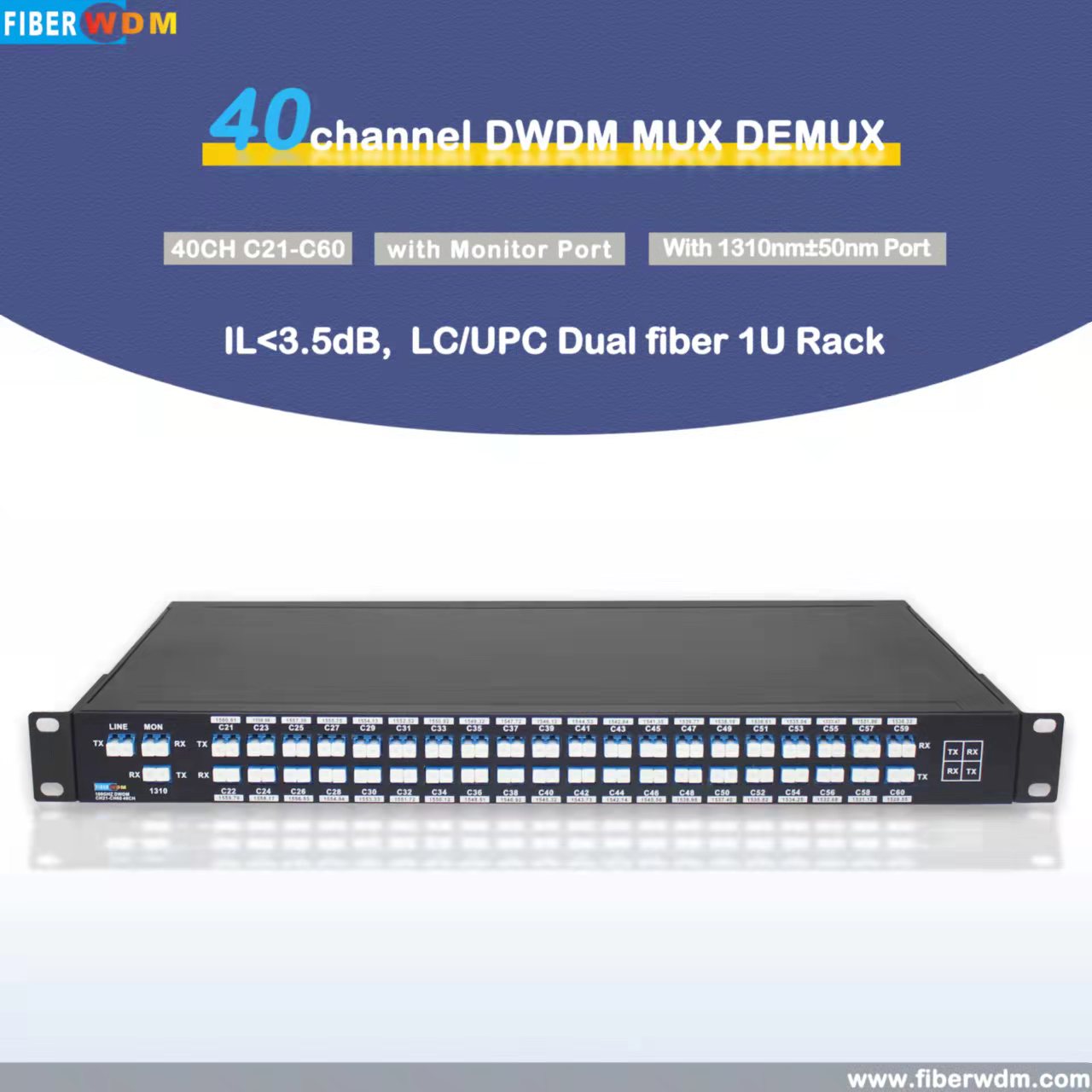

Dual Fiber 40CH C21-C60 DWDM MUX DEMUX, With 1310nm And Monitor Port

Product

Posting date : Jul 09, 2022

Click enlarge Image

Membership

Free Member Scince Jul 08, 2022

FOB Price

580$

Min. Order Quantity

Supply Abillity

9999

Port

Shenzhen

Payment Terms

Delivery 100% after payment

Package

Blister tray

Keyword :

100GHz DWDM Mux Demux

Category

MISCELLANEOUS | Optical ph | Optical fi | Optical fi

Contact

James bob

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

FIBERWDM

Model Number

RD-QD100G-80

HS-CODE

9001-10

Package & Delivery Lead Time

Package

Blister tray

Delivery Lead Time

1-3days

Detailed Description

The 40ch DWDM MUX DEMUX is designed by FIBERWDM, wavelength fromC21 toC60(1560.61nm~1529.55nnm), in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.

wdmmanufacturers@hotmail.com

The 40ch DWDM with 1310nm port is totally passive DWDM device, and support low insertion loss( wavelength ports＜3.5dB; 1310nm port＜0.8dB).And it conjunct with The DWDM amplifiers and DCM device, the 40ch DWDM transfer system can support a long distance transmission.

Product Panel

40CH DWDM MUX DEMUX

40CH DWDM MUX DEMUX

1310nm portcan support 1G LX/SX, 10G LR, 40G ER4/LR4, 100GLR/ER4/LR4/ZR4; it forExisting Legacy Traffic.
Mon port is for network link monitoring or power monitoring, easy troubleshooting without affecting traffic.

Line Link

40CHDWDM MUX DEMUXDual fiber transmission

40 Channels DWDM MUX DEMUX and with 1310nm Port, supports 40 channels difference business in two optical fiber for point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.

Product Specification

Wavelength	40channels C21-C60	Channel Spacing	100GHz (0.8nm)
Channel Passband	±0.11nm	Technology	AAWG (Gaussian)
Insertion Loss	≤ 3.5dB	Link Loss	≤7dB
1310nm Port Pass Band Width	1260nm~1360nm	Center Wavelength Accuracy	±0.05nm
Insertion Loss @ 1310 port	≤0.8dB	Insertion Loss @ 1% Mon	≤ 26dB
Return Loss	≥ 40dB	Directivity	≥ 40dB
Polarization Mode Dispersion	≤ 0.1ps	Polarization Dependent Loss	≤ 0.3dB
Channel Isolation	Adjacent ≥ 25dB Non-adjacent ≥ 29dB	Temperature	Operating -5 to 65°C Storage -40 to 85°C
Net Weight	1.5KG	Dimensions (HxWxD)	44440230mm

Note: Specified with connectors.

Package Information

19” Inch 1U Rack

Order Information

Product No.	Product description
DMD40-1U01-C2160-31M	DWDM MUX DEMUX 40CH (C21-C60) With 1310nm and Monitor Port, Dual fiber, LC/UPC , 1U Rack

Note:We Support Customized Design, please contact us by email.
