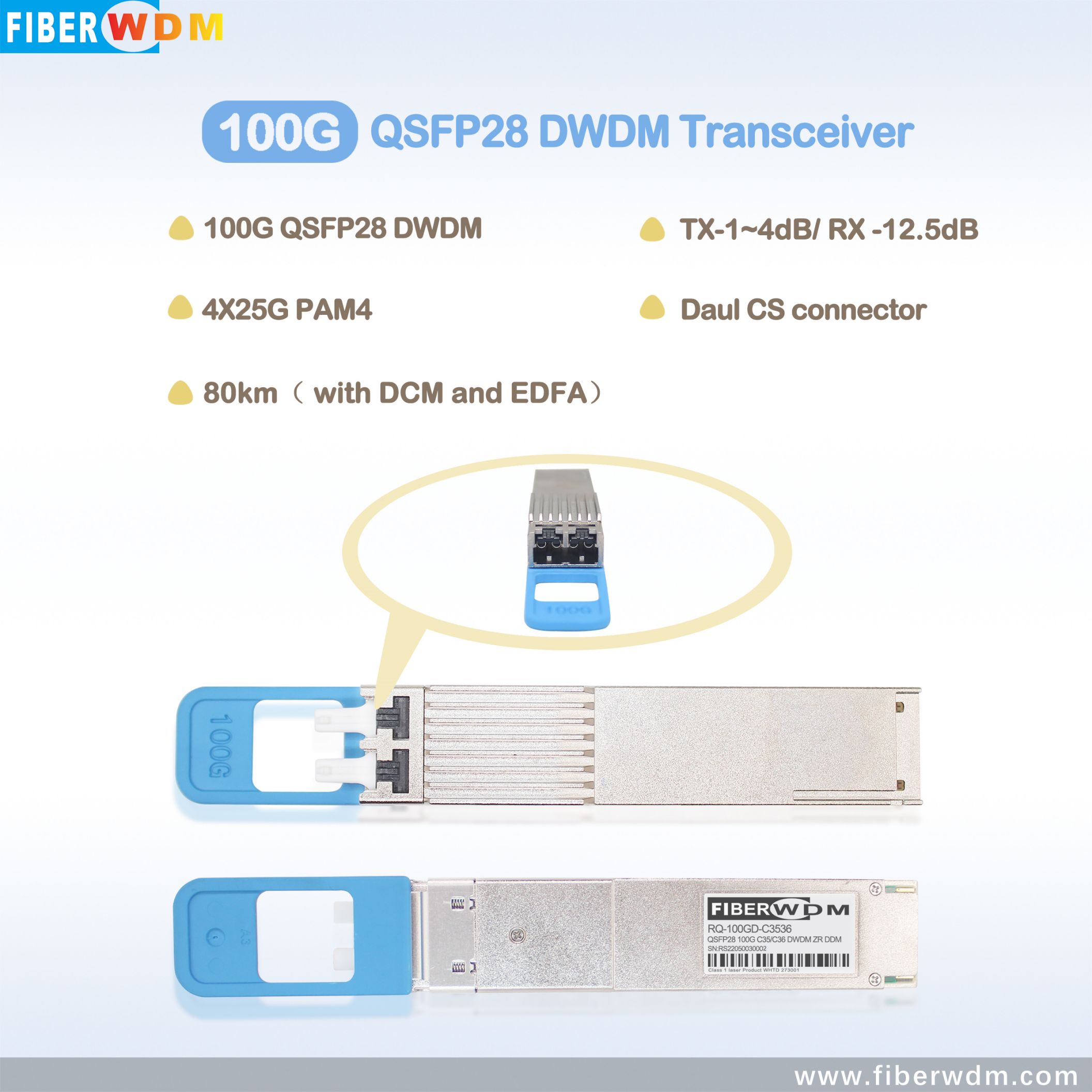

100G QSFP28 DWDM 80KM PAM4
0 likes
China [CN] wdmmanufacturers@hotmail.com
The RQ-100GD-CXXXX series 100G DWDM QSFP28 PAM4 CS Transceiver module is designed for use in optical data communications. This module is designed for single mode optical fiber and operates at a data rate of 100Gbps at the nominal DWDM wavelength from 1528.77nm to 1565.50nm as specified by the ITU-T. This module can convert 4 channels of 25Gbps (NRZ) electrical input data to dual waves of50Gbps (PAM4) optical signal, and also can convertdual wavesof50Gbps (PAM4) optical signal to 4 channels of 25Gbps (NRZ) electrical output data. The electrical interface of the module is compliant with the OIF CEI-28G-VSR and QSFP28 MSA. It is designed to deploy in the DWDM networking equipment in metropolitan access and corenetworks.
Product Function
Ordering information
Part No | Specifications | ||||||
Package | Data rate | Tx | Pout | Rx Sen. | Top | Others | |
RQ-100GD-CXX | QSFP28 | 103.125 Gbps | Cooled EAM DFB-LD | -1 ~ +4 dBm | -12.5 dBm @BER 4E-3 | 0~70oC | DDM |
Wavelength Table
Product Code | TX1 | TX2 | ||||
Ch. No. | Frequency (THz) | Center Wavelength(nm) | Ch. No. | Frequency (THz) | Center Wavelength(nm) | |
RQ-100GD-C1314 | C13 | 191.30 | 1567.13 | C14 | 191.40 | 1566.31 |
RQ-100GD-C1516 | C15 | 191.50 | 1565.50 | C16 | 191.60 | 1564.68 |
RQ-100GD-C1718 | C17 | 191.70 | 1563.86 | C18 | 191.80 | 1563.05 |
RQ-100GD-C1920 | C19 | 191.90 | 1562.23 | C20 | 192.00 | 1561.42 |
RQ-100GD-C2122 | C21 | 192.10 | 1560.61 | C22 | 192.20 | 1559.79 |
RQ-100GD-C2324 | C23 | 192.30 | 1558.98 | C24 | 192.40 | 1558.17 |
RQ-100GD-C2526 | C25 | 192.50 | 1557.36 | C26 | 192.60 | 1556.55 |
RQ-100GD-C2728 | C27 | 192.70 | 1555.75 | C28 | 192.80 | 1554.94 |
RQ-100GD-C2930 | C29 | 192.90 | 1554.13 | C30 | 193.00 | 1553.33 |
RQ-100GD-C3132 | C31 | 193.10 | 1552.52 | C32 | 193.20 | 1551.72 |
RQ-100GD-C3334 | C33 | 193.30 | 1550.92 | C34 | 193.40 | 1550.12 |
RQ-100GD-C3536 | C35 | 193.50 | 1549.32 | C36 | 193.60 | 1548.51 |
RQ-100GD-C3738 | C37 | 193.70 | 1547.72 | C38 | 193.80 | 1546.92 |
RQ-100GD-C3940 | C39 | 193.90 | 1546.12 | C40 | 194.00 | 1545.32 |
RQ-100GD-C4142 | C41 | 194.10 | 1544.53 | C42 | 194.20 | 1543.73 |
RQ-100GD-C4344 | C43 | 194.30 | 1542.94 | C44 | 194.40 | 1542.14 |
RQ-100GD-C4546 | C45 | 194.50 | 1541.35 | C46 | 194.60 | 1540.56 |
RQ-100GD-C4748 | C47 | 194.70 | 1539.77 | C48 | 194.80 | 1538.98 |
RQ-100GD-C4950 | C49 | 194.90 | 1538.19 | C50 | 195.00 | 1537.40 |
RQ-100GD-C5152 | C51 | 195.10 | 1536.61 | C52 | 195.20 | 1535.82 |
RQ-100GD-C5354 | C53 | 195.30 | 1535.04 | C54 | 195.40 | 1534.25 |
RQ-100GD-C5556 | C55 | 195.50 | 1533.47 | C56 | 195.60 | 1532.68 |
RQ-100GD-C5758 | C57 | 195.70 | 1531.90 | C58 | 195.80 | 1531.12 |
RQ-100GD-C5960 | C59 | 195.90 | 1530.33 | C60 | 196.00 | 1529.55 |
Notes:
The two channels of the transceiver meet above wavelength table. And other channel wavelength configurations are acceptable for customize design.
All the specification is designed by single wavelength.
Compatibale with main stream DC switch/routers
100G QSFP28 DWDM Solution
1. Passive DWDM MUX 1X100G QSFP28 DWDM 120KM Solution
Power budget consideration(dBm)
2. Passive DWDM MUX 4X100G QSFP28 DWDM 80KM Solution
Power budget consideration(dBm)
3. Passive DWDM MUX 24X100G QSFP28 DWDM 80KM Solution
4. Passive DWDM MUX 48X100G QSFP28 DWDM 80KM Solution
Mechanical Drawings
Click enlarge Image
