Lglguo poe2410 Poe power supply 24V1A
0 likes
China [CN] Product features:
This product is a power supply designed for network communication equipment; Small output ripple, wide voltage input of 90-264VAC, high efficiency; It has the characteristics of small size, stable operation and high reliability; It has the functions of output overcurrent, over-power, short-circuit protection, etc.

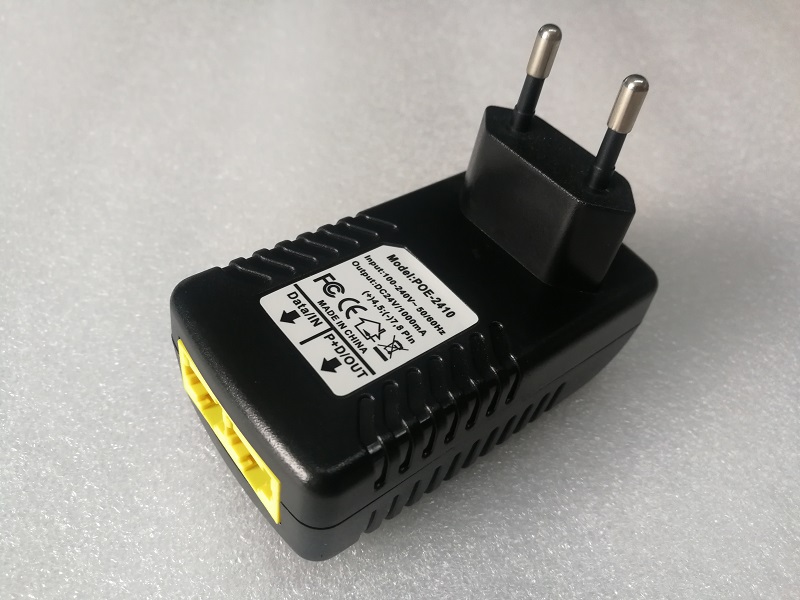

Model: poe2410
Input voltage: 90~265v
Output voltage: 24v/1a
Wiring mode: 45 +; 78 -;
Network port rate: 10m/100mbps

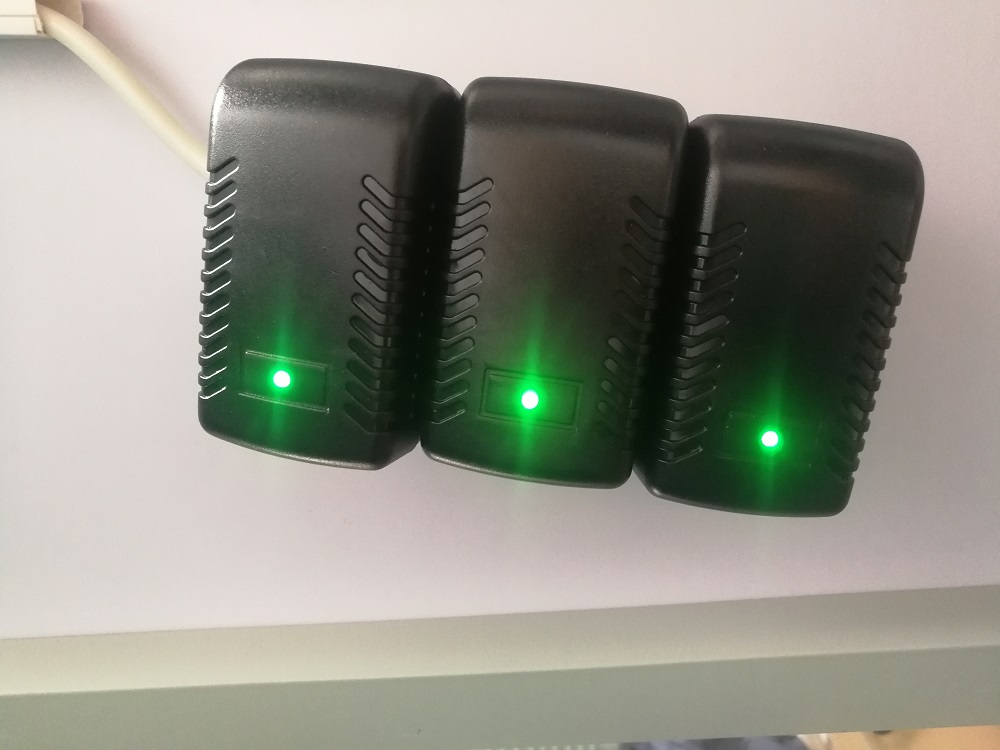

Work indication LED: Green
Working environment temperature: -15 ° ~55 ℃
Size: 83.5mm × 47mm × 53.7mm
Weight: 85g
The power supply has the functions of input overvoltage and undervoltage, output overvoltage, and each output overcurrent and short circuit protection.
System reliability: MTBF > 100k hours.
Conducted interference (CE) and radiated interference (RE) comply with en60950, FCC standard.
The lightning protection circuit of power supply has failure alarm function and safety protection elements such as fuse tube
