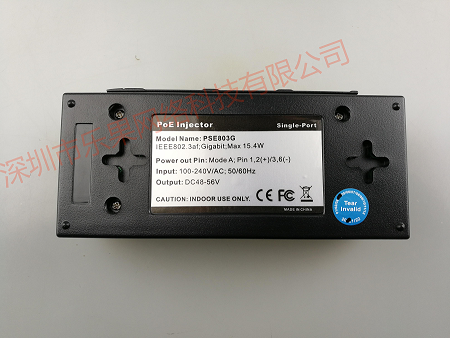

PSE803G 19W standard IEEE802.3af Gigabit single port injector
0 likes
China [CN] PSE803G
IEEE 802.3af compliant
The maximum transmission power is 15.4W
Poe transmission power supply distance up to 100m
Automatic detection and identification of power receiving equipment and automatic matching of output power
Built in power supply, plug and play, no management required

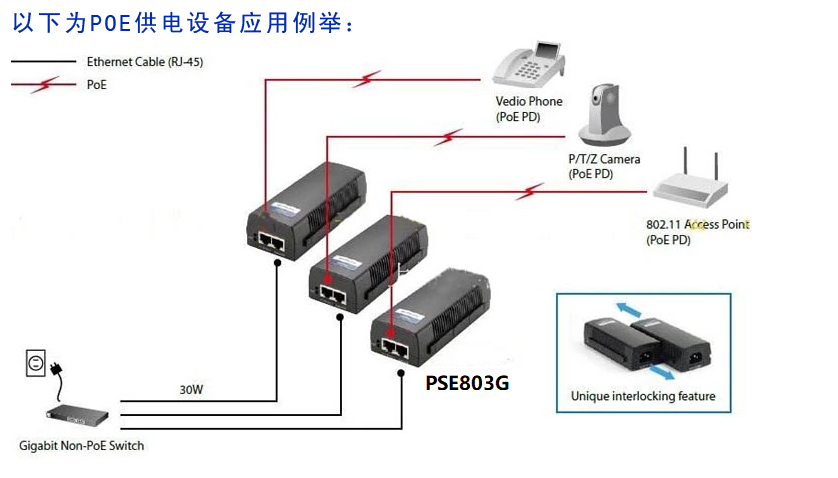

Pse803g single port Gigabit Ethernet power supply equipment. The power supply is suitable for indoor use (please put it in a waterproof box outdoors). It can work normally at the input voltage of 100vac ~ 240VAC. The power supply is connected with the network terminal equipment through category 5 cables. It has an Ethernet data port and an output port after data and power synthesis. The device can provide a channel of Ethernet equipment, such as router, switch, wireless AP, network telephone, industrial network terminal, network camera, etc., which comply with ieee802.1 The POE power supply application of 3af / at international standard meets the requirements of providing efficient engineering in places where it is impossible to provide power remotely or where Ethernet network cable power supply mode is adopted to improve system reliability and simplify equipment installation. At the same time, it can also be used with POE separator (such as ps5712, poe5912, etc.) to provide stable power supply and data transmission for non Poe equipment.
Click enlarge Image
