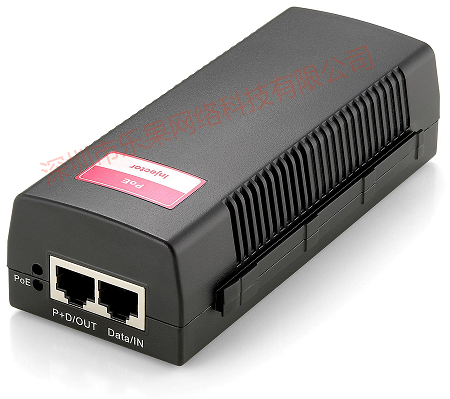

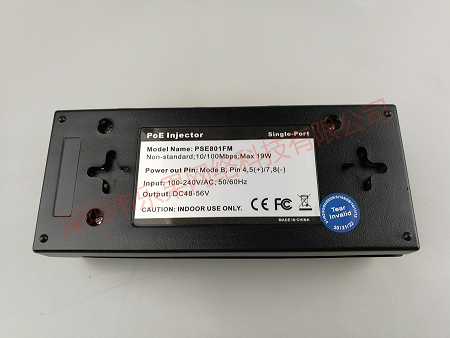

PSE801FM 19W single port Poe injector, Poe power supply
0 likes
China [CN] PSE801FM
Non standard Poe design, 48 ~ 56vdc output
The maximum transmission power is above 19W
The maximum power supply distance is 100m
Built in power supply, plug and play, no management required

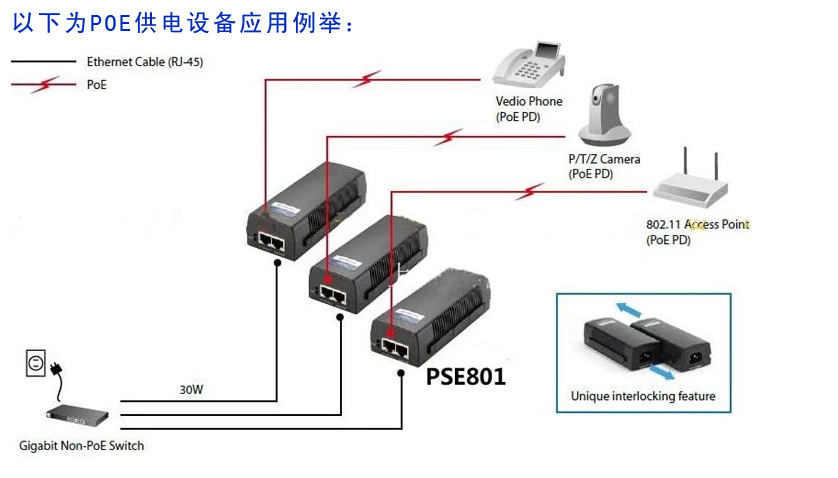

Pse801fm single port 100M Ethernet power supply equipment is suitable for indoor use (please put it in a waterproof box outdoors). It can work normally at the input voltage of 100vac ~ 240VAC. The power supply is connected with the network terminal equipment through category 5 cables. It has an Ethernet data port and an output port after data and power synthesis. The equipment can supply power for one-way Ethernet equipment, such as router, switch, wireless AP, network telephone, industrial network terminal, network camera and other Poe applications, and meet the requirements of providing efficient engineering services in places where it is impossible to provide power remotely or where Ethernet network cable power supply mode is adopted to improve system reliability and simplify equipment installation. At the same time, it can also be used with POE separator (such as ps5712, poe5912, etc.) to provide stable power supply and data transmission for non Poe equipment
