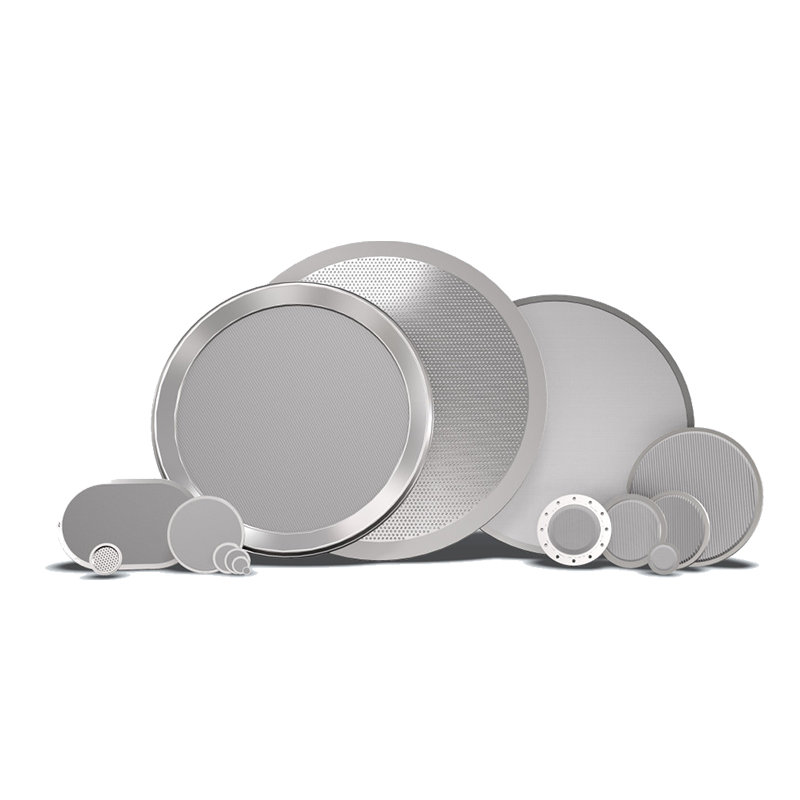

8.75inch sintered metal disc filter for BOPP BOPA BOPET film production

1.Material: 316L or other metal as you required.

2.Working Pressure: Max 30Mpa,△P10Mpa

3.Filter Preciseness: 3-200μm

4.O.D: Φ7”、Φ8.75”、Φ12”

5.Spindle: 0.6mm~3mm Thickness.

6.Inner Seal Ring: Soft Seal-Sintered felt / Hard Seal-Stainless steel

7.Core: Hexagonal, U-shaped, Compound, Spiral

8:Central Layer Braid、H structure

Application:

1.BOPP biaxially oriented polypropylene film;

2.BOPA biaxially stretched nylon film;

3.BOPET biaxially stretched  ;

4.high viscosity melt filtration;

5.chemical fiber liquid filtration;

Characteristic:

1.Strong filtering ability

2.Adjustable filtering area

3.Large filtering surface and large flow

4.High filtration precision

5.Be cleaned and recyclable.
