Hot Sale High Precision Meniscus Lens with K9 Bk7 Quartz Manufacture Customized
0 likes
China [CN] Hanzhong Brisun Optics Co., Ltd. Is the high High precision optical element manufacturer provides customized production of Various optical lenses, including spherical lens, cylindrical lens, optical window, mirror, prism, filter, metal base mirror and other high-precision optical elements. The base materials include various optical glass, fused quartz, calcium fluoride (CaF2), zinc selenide (ZnSe), germanium (GE), silicon (SI), sapphire, metal and other materials. And provide antireflective film, high reflection film, spectroscopic film, metal film and other optical coatings.

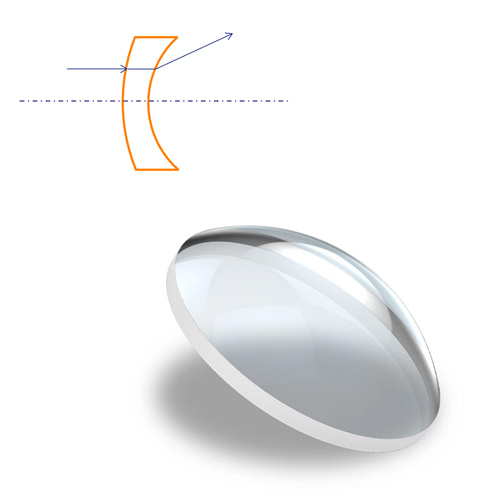

The combination of meniscus lens and other lenses can lengthen or shorten the focal length of the original lens without increasing spherical aberration or coma in the system.
Meniscus lens is divided into positive meniscus lens and negative meniscus lens:
Positive meniscus (convex) lens is designed to reduce spherical aberration. When combined with another lens, the positive meniscus lens can reduce the focal length, so as to increase the numerical aperture (NA) of the system without introducing obvious spherical aberration. When used to converge parallel light, the convex surface of the lens shall face the light source to reduce the spherical aberration.
Negative meniscus (convex) lens is designed to reduce spherical aberration in optical system. When combined with another lens, the negative meniscus lens can increase the focal length and reduce the numerical aperture (NA) of the system. When used to converge parallel light, the convex surface of the lens shall face the light source to reduce the spherical aberration.
Technical parameters:
Material: optical glass, H-K9L (N-BK7),
Radius of curvature: ± 1mm - ± 50000mm ± 1%
Outer circle: 3mm-500mm ± 0.1mm
Center thickness tolerance: ± 0.05mm (we can process to ± 0.01mm with high precision)
Center deviation: 3′(we can process to 30 ″with high precision)
Surface accuracy: λ/ 8 (high precision, we can process to 1 / 10λ)
Surface quality: 60/40 (we can process to 10-5 with high precision)
Effective caliber: ≥90%
Coating: Coating: multilayer antireflective film
A:350-650nm
B:650-1050nm
C:1050-1580nm
In addition, we have thousands of kinds of stock, such as quartz plano convex lens, quartz plano concave lens, quartz biconvex lens, quartz biconvex lens, cylindrical lens, prism, filters, windows, beamsplitter and so on. The price is preferential and the quality is excellent, which can meet your demand for a small order.
If you are interested it, welcome to inquiry us or search “Hanzhong Borisun Optics Co.,Ltd ”to know about more details.
