Black body radaition source infrared calibrator
0 likes
China [CN] DY-HT series temperature test equipment black body radiation source infrared calibrator adopts high stability temperature controller,the temperature range is -100℃-1700℃.
It can be used to calibrate infrared thermometer,radiation thermometer, and radition temperature sensing detectors.
It is only suitable for laboratory calibration of radiation thermometer,but also can be used for on-site calibration.

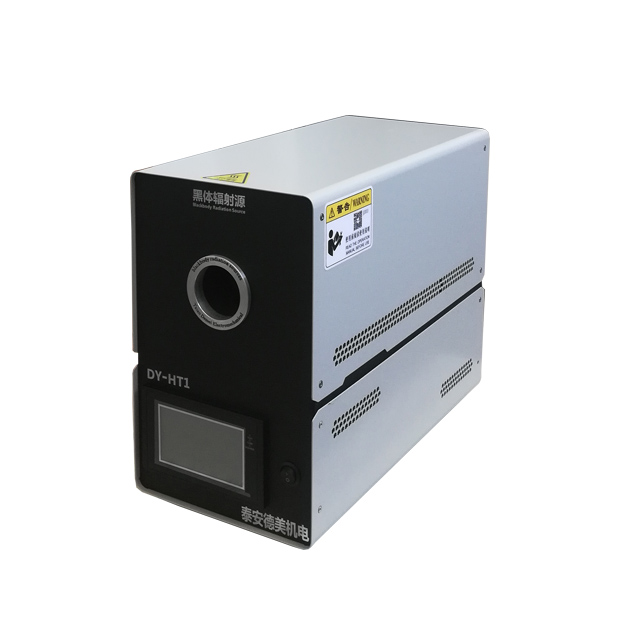

Technical Parameters of DY-HT Black Body Radiation Source Infrared Calibrator
Model | DY-HT |
Temperature Range | 50℃~300℃ |
Cavity Diameter | φ40mm/φ50mm(customizable) |
Emissivity | ≥0.995 |
Temperature Stability | Not greater than 0.1℃ and 0.1%t(bigger one in two) t is the radiation source temperature |
Temperature Uniformity | Not greater than ±0.15℃ and 0.15%t(bigger one in two) t is the radiation source temperature |
Power Supply | 220V50HZ, 110V60HZ |
Power(w) | 800w |
Size | 412*203*340mm |
TAIAN DEMEI ELECTROMECHANICAL EQUIPMENT CO.,LTD
Taian Demei is a manufacturer combine with development,design,production,sales specialized in versatile calibration instruments for temperature,humidity,pressure and other field.
Our products include:
DY-GTL Series Touch Screen Dry Block Temperature Calibrator
Dry block temperature calibration bath for thermocouples
High resolution liquid bath thermostatic calibration bath,
high temperature dry block calibration well,
low temperature dry block calibration well,
ultralow temperature dry well calibration well,
infrared thermometer temperature calibration well,
glass thermomter calibrator
liquid-in glass thermomer calibrator
black body infrared calibrator
black body ir calibrator
temperature and humidity calibration chamber,
infrared thermometer calibrator,
thermostatic bath,
black body infrared thermal imager,
electronic freezing device etc.
Welcome your inquiry and purchase!
