Livestock Chicken Floor Raising Poultry Farm Equipment with Pan Feeding System

본문 바로가기


Home > Product > Livestock Chicken Floor Raising Poultry Farm Equipment with Pan Feeding System
Product
Livestock Chicken Floor Raising Poultry Farm Equipment with Pan Feedi...
Posting date : Sep 06, 2021
Membership
Free Member Scince Sep 02, 2021
FOB Price
120-180
Min. Order Quantity
10
Supply Abillity
10000 Sets/Month
Port
Qingdao
Payment Terms
L/C, T/T, Western Union, Paypal, Money Gram, Others
Package
Standard Packing
Keyword :
Category
Contact
Julia
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
RETECH
Model Number
+8618561818859
HS-CODE
8436-91
Package & Delivery Lead Time
Package
Standard Packing
Detailed Description

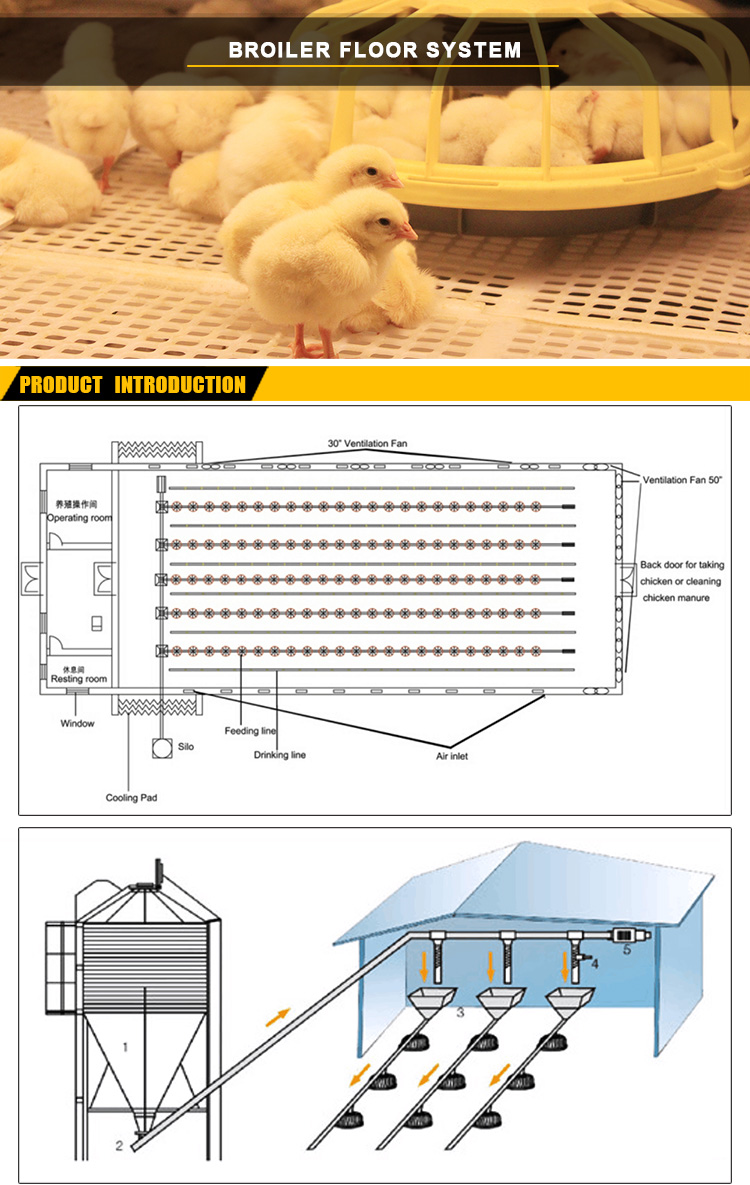

Raising broiler on ground is the traditional raising mode
* Adopt hot-dip galvanization technology to ensure the service life of 15-20 years.
* Automatic feeding, drinking and environment control system can help to save energy and improve the working efficiency.

Features:
* Low equipment investment
* Equipment is simple and easy to operate
* Save labor cost
* High survival rate


                              Pan Feeding System


Silo

1.2mm thickness hot galvanized steel. diameter 2.65m,
6 legs, actual capacity 90%.Feed density 0.65ton/m3.
Material of silo is galvanized steel (275g) ,which

is anti-erosive and ensures the long  service life.
Hopper

Volume: 70kgs;
Material: Hot galvanzied sheet(275g/m2);
Sheet thickness:1.0mm

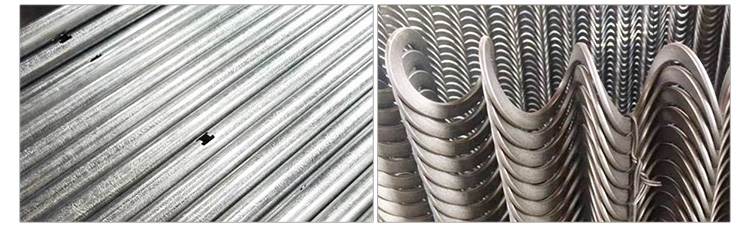

Feed Pipe With Auger

Ф45mm, 4 holes/3 M; Material: Hot galvanzied sheet; Auger is imported from South Africa

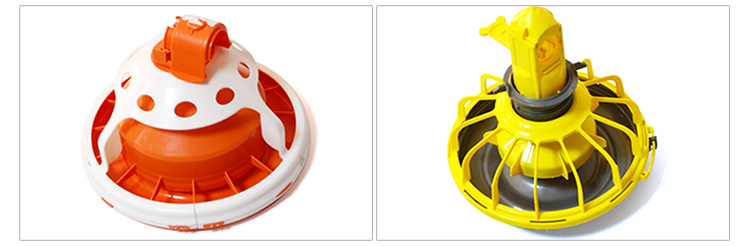

Feed Pan

14grills, diameter:330mm, weight:0.7kg  Material: PP, UV, anti-aging Number of birds/pan: 45-65 birds






Nipple Drinking System


Filter

With back-flushing system and double filtration.
Filter fineness is less than 5 micron.
Spare filter element is provided.

Filter element can be cleaned without being
dismantled by using
backwash device.

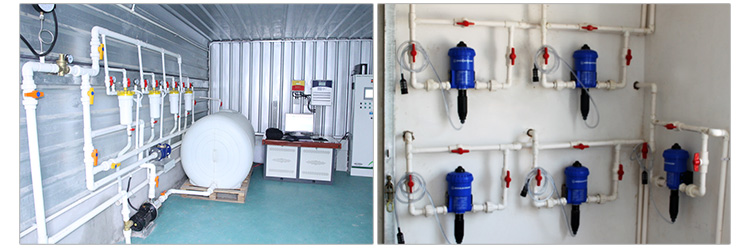

Medical Pump

Dosatron imported from France.
The vacuum siphon principle is used to

automatically add medicine,
and the backwash channel is installed.
Working pressure: 0.3bar-6bar.

Highest working temperature: 40ºC
Dilution percentage: 0.2%-2%

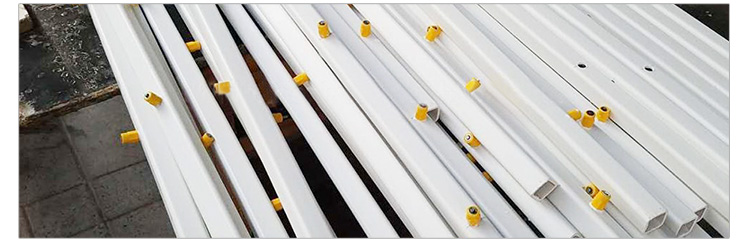

Water Pipe

25mm*2mm PVC square pipe,resistance 90°bending with seven times.


Nipple Drinker

Material: 304 stainless steel pin, plastic PP covered nipple, no water leaking ,360 degree make sure large waterflow.
Water flow:80-90ml/min
Broiler:8-12 birds/nipple





Manure cleaning system


Plastic Slat

Slat size :1.2x0.5m
P.P material
Hole size:1.5*1.5mm/2.7*1.5mm ( customized)
Slat weight: 2kg/2.3kg
Trangle Beam

Material: PVC
Thickness:3mm
Height:12cm
Width:42mm





Traction Type Manure Cleaning System

Scraper type manure cleaning system are cleaned to the end of the house.
Compact structure,small size,low weight and simple operation. Manure scraping

panel is fully hot-dip galvanized. It's much more economical and can save labor cost, help improve poultry house environment.




FAQ

1. Are you manufacturer or trading company?

we were established in 1986, the earliest manufacturer of poultry equipment and setter of poultry equipment

industrial standards in China.


2. Do you have chicken farm?

Yes,we have a 600,000 birds modern layer demonstration farm, a 2,000,000 pullets' demonstration farm and an organic fertilizer producing and processing base with the annual production capacity of 50,000 tons.


3. Can we visit your factory?

Welcome to visit our factory. We will accompany you throughout your stay.


4. Can you provide design? Is it free?

We can provide free chicken farm design.


5. What services do you provide?

We can provide free total solution, include farm construction, feeding and management, sanitation and epidemic

prevention, classic case and etc.


6. How many years it can use?

15-20 years long service life.


7. How much per set cage?

Different model,price is different.In addition,there are other complement equipments.Need know how many birds

you want to rear,then we can give you a specific price list with house size.


8. Who is in charge of install ?

Our company will send two engineers to your country to guide installation and provide training.


9. How long is the warrenty?

We guarantee one year warranty and lifetime maintenance.


10. Do you have product gallery or video?

Please contact us, we have detailed product galleries and videos.
