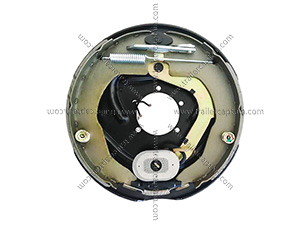

12" trailer off road electric brake assembly
0 likes
China [CN] √ | off road trailer axle | √ | Manual Adjustment |
√ | With parking | √ | trailer brake kit |
√ | 12 inch electric brake | √ | trailer electric brake system |
√ | 6000 lbs trailer axle | √ | trailer brake kits |
ATM (Aggregate Trailer Mass)
GTM (Gross Trailer Mass)
In Australia, all trailers with ATM or GTM over 2000kg must have a Breakaway Brake setup that will immediately apply the trailer brakes in the event of the trailer becoming disconnected from the towing vehicle. Off-road electric drum brake is both with mechanical parking and with off road design. The plastic core in the magnet will reduce the vibration and the high temperature so that this brake assembly could ensure you a safe drive when you facing the extremely rough road. Meanwhile the trailer axle repair will be easy.
Features
l Electric off road brakes assembly will work with or without brake actuator.
l 12 inch x 2 inch trailer off road electric backing plate is electrophoretic-coated.
l Needs only an electric brake controller to work.
l Periodic manual adjustment required.
l 12 inch trailer brake can work with most trailer axles 6000 lbs including Dexter, Hayes and many others. With the off road design, trailers can go through the rough road freely.
Specifications
Ø Dimension: 12 inch x 2inch
Ø Axle Capability: 6000 lbs Axle
Ø Mounting Flange Bolt Pattern: 5 bolts
Ø Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side / RH
Product Composition
Ø 12” x 2" Brake Shoe Set x 1
Ø E-coat Backing Plate x 1
Ø Off-Road Magnet x 1
Ø Magnet Lever x 1
Ø Handbrake x 1
Ø Springs x 2
Ø Adjuster x 1
Ø Mechanical park brake lever
