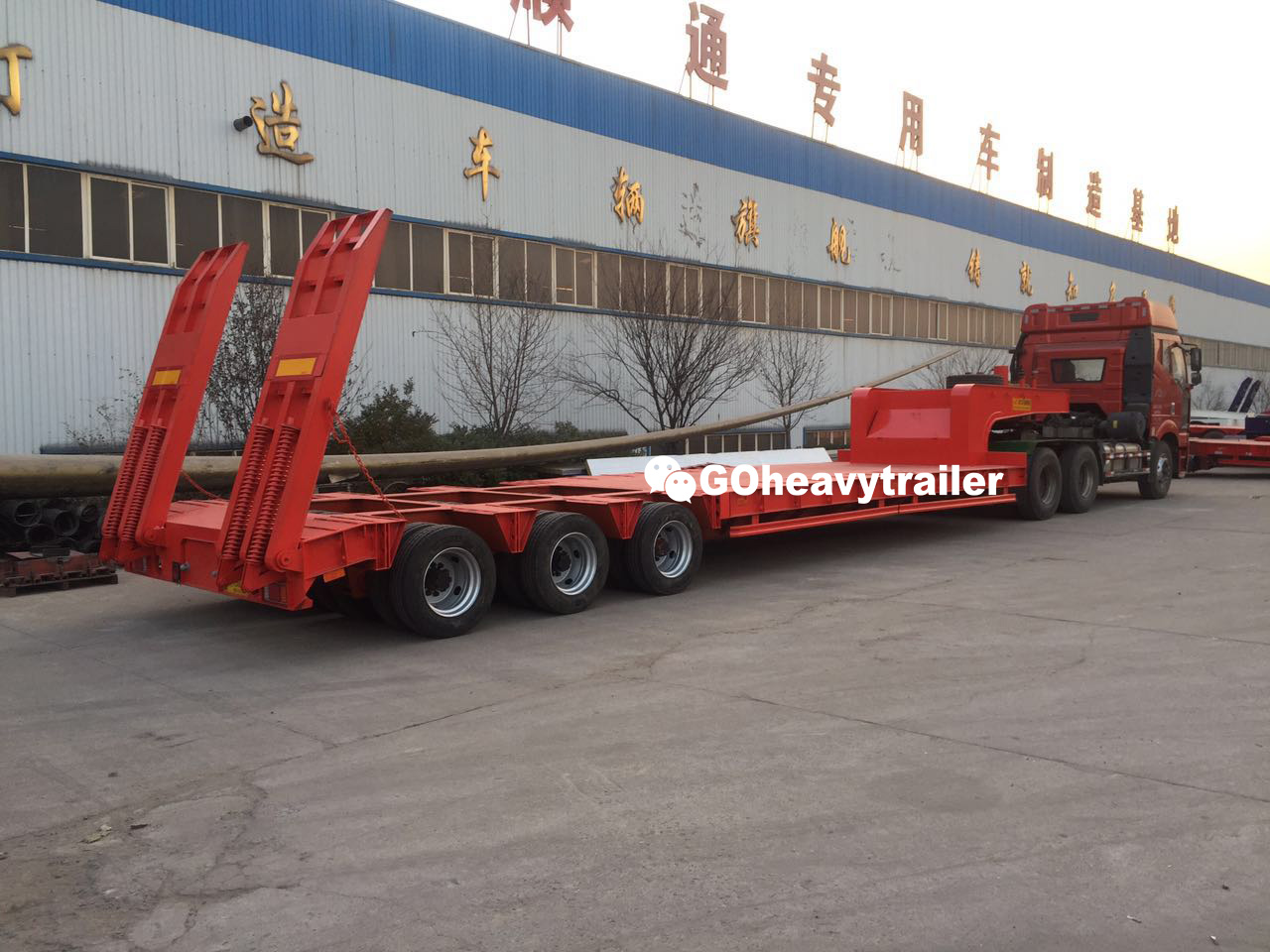

LOWBED TRAILER PRICE TRAILER MANUFACTURER
0 likes
China [CN] Main Features
1. Torsion - resistance of side beam and Main Beam are with "I" high strengh steel. more durable than normal trailer steel to ensure low bed trailer driving stability and handle bed roads.
2. Heavy duty type ramp: manganese plate butt welding, This design that ensure the ramp support the heavy duty marchine safely.
3. Stability when loading heavy duty marchine. Our low bed trailer can equipped with extra legs on the rear of trailer. This will enable you to load machines safely
According to clients' requirements, we can customize different axles and loading weight.
The popular lowboy trailer models as follows:
2 axles 40 ton lowbed semi trailer
3 axles 60 ton low bed truck trailer,
3 axles 80 ton low loader trailer
3 axles 100 ton lowbed truck trailer
2 line 4 axles 60 ton lowbed trailer
3 line 6 axles 120 ton low bed trailer
Specification:
| Type | Low Bed Semi Trailer |
| Loading Capacity | 40-60T |
| Axle | 3 Pieces, 13T FUWA/BPW axle |
| Tyre | 12 Pieces, 10.00R20 |
| Dimensions(L*W*H) | 13000-18000*3000-3200*1750mm |
| Weight | 10 tons to 14 tons |
| Rims | 5.5-20, 9.0-20 |
| Suspension System | Leaf Spring Suspension/ Air Suspension |
| Brake System | Dual line pneumatic brake system with WABCO valve |
| Main Beam | Height 500mm HG60 steel |
| Chassis | upper 20mm, bottom 20mm. Mid web 12mm |
| Ramps | Safety chain |
| Kingpin | 2' or 3.5' interchangeable, JOST brand |
| Landing Gear | 28 tons, Two speed manual operation |
| Electrical System | Voltage: 24V Receptacle: 7 ways Germany standard |
| Painting | Antirust painting two layers |
| Tool Box | One tool box with a set of standard trailer tools |
| Spare Tyre Rack | One piece or Two pieces |
| Warranty | 10 years |
| Export Port | Tianjin Port |
Click enlarge Image
