Deep well inspection CCTV camera Panoramic well exploration
0 likes
China [CN]

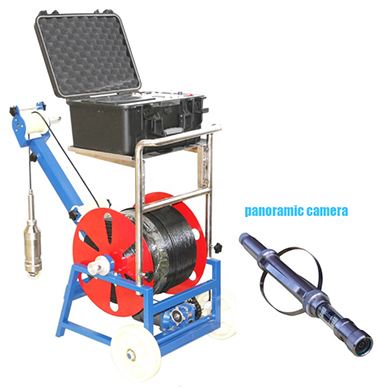

GYGD-III borehole inspection camera is a deep well exploration equipment dedicated to Observe the internal structure of geological boreholes, water wells, mines, and oil wells, and display the images in real time on the LED display .HD images help you to take accurate decision.The panoramic camera gives it such advantages：
Extremely Wide vision
Acknowledge the hole overall
Stronger sense of space
Greatly time saving
Observe the hole wall and bottom at same time
Not only applied in water well exploration，except also widely used in
oil＆gas well / ocean engineering / engineering construction /
underground pipe inspection / well maintenance and repair /
coal borehole inspection / mineral borehole inspection / other application
Here adds specific details
Name | GYGD-III |
Hole Type | Vertical,Slant Hole |
Depth | 0-2000m |
Camera Resolution | 850 TVL |
Pressure | Max.15Mpa |
Probe Diameter | 40-120mm |
Cable Tensile Strenth | 250KG |
Power | AC220V50Hz(DC12/24V Optional) |
LED Display | 8 inch 4:3 1024*768 Pixel |
Storage | SD card/U Disk,Standard 16G SD Card,32G Optional |
Sensor | 1/3 Inch CCD,0.1 Lux |
