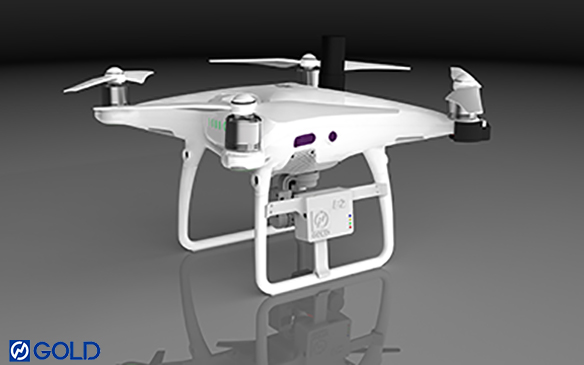

DJI drone PPK Upgrade Kit for Aerial Mapping
0 likes
China [CN]
PPK up grade for drone is a newly developed technology to assist drone in surveying and mapping works.
The GOLD F2 PPK upgrade kit is highly praised for its high precision and high performance. You can see the kit be used in these works:
terrain measure;plant protection mapping
power inspection;three-dimensional acquisition
city management;water conservancy law enforcement
traffic law enforcement
Remember the kit only suit the following DJI series Models：
phantom 4； phantom 4 Advance
phantom 4 Pro； phantom 4 Pro 2.0
Mavic 2 Pro； Mavic 2 Zoom
What advantages F2 PPK kit has?
Reduce 80% of the GCPs(Ground Control Points),means you haven't to pay much time and effort for wild surveying.
Improve measure precision,capable to take topographic survey at 1:500 maximum.
No communication is required, only static collection is fine.Have a boarder survey rage compared to RTK working mode,and less possible to lose satellite signals.

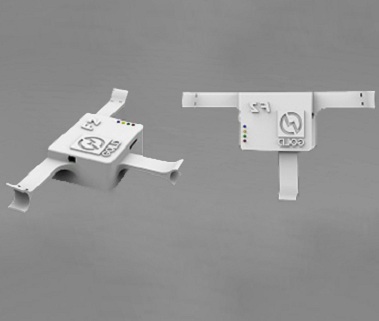

Only 56 grams,lightweight and portable.
Here attaches specific parameters
models | F2 | |
Machenical | Size | 56.4*45.3*14.6mm |
Weight | 56g | |
Operating T | -20 ~+65℃ | |
Electrical | Battery capacity | 4.2V 1500mAh |
Antenna voltage | 3.3V | |
Length of work | 12h | |
position | H | 10mm+1pmm |
V | 20mm+2pmm | |
Data | Storage | 16GB |
Record format | RINEX,NMEA | |
Output format | NMEA,LLH/XYZ | |
Update rate | 5 Hz | |
GNSS |
Signal | GPS/QZSS L1,L2 |
GLONASS G1 | ||
BeiDou B1 | ||
Galileo E1 | ||
SBAS | ||

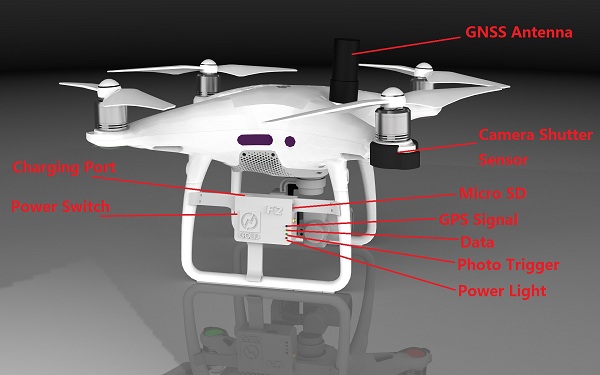

connectivity | TF card; LED light(power,record,sensor,satellite); DJI trigger sensor Antenna MCX | |
channels | 184 | |
Freely contact
