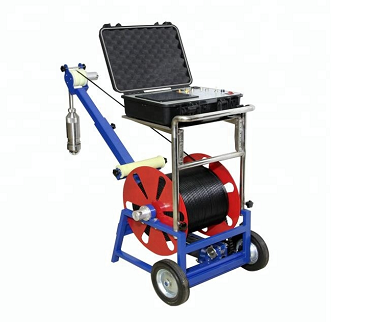

Rotary Drilling Hole TV Camera Underground Water Detection Camera Borehole Logging Equipment
0 likes
China [CN]
Still worrying about not finding suitable equipment for underground exploration?

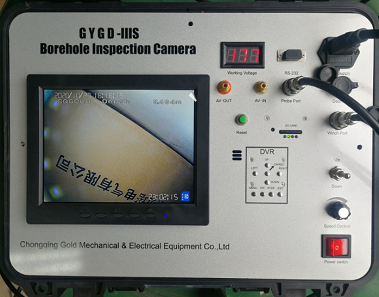

GYGD-IIS Rotary Drilling Hole TV Camera can meet your demand from a professional perspective.
What can GYGD-IIS Rotary Drilling Hole TV Camera do?
Detect the cracks, dislocations, falling objects of the well wall, clogging of the filter pipe orifice, and the position of the quicksand.
Geological conditions such as the size and location of the karst caves can also be observed in the bedrock fissures and development conditions in the bedrock area.
What areas GYGD-IIS Rotary Drilling Hole TV Camera need to be used
Hydrology,
Mining,
Civil engineering, drilling,
Oil well,
Engineering and even civil use.

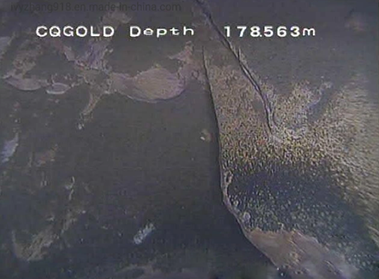

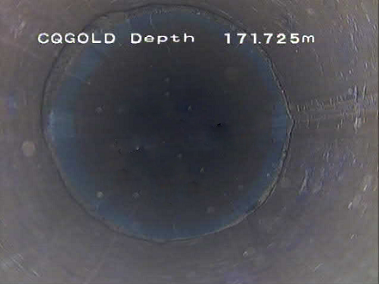

PICS from downhole
specific parameters
Model | GYGD-IIS |
Power supply voltage | Control box: 12V |
Working current | 800mA |
Storage medium | SD card, U-disk |
Protection voltage | Li-battery, 8.1V, 10000mA |
Working time | >260min |
Waterproof | IP68 |
Screen size | 10inch TFT digital screen |
Display resolution | 1024X768 |
Keyboard size | 284*122*24mm |

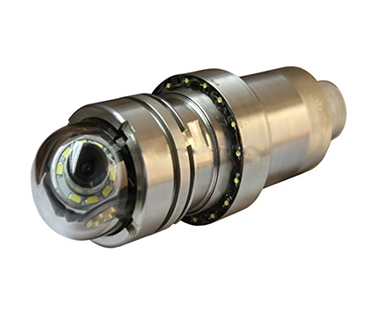

Probe Parameters | |
Probe size | ø45mmX300mm |
Image sensor | 1/3” High resolution CCD, pixel 976H*582V(PAL) |
Resolution | 700TVL |
Color standard | PAL / NTSC for option |
Signal-to-noise ratio | 52dB(Min)/ 60dB(Max) (Turn off AGC) |
Sensitivity | 0.1 lux at F1.2 5600°K |
Focal length | Variable focus |
Viewing angle | 60° |
Viewable range | 100~600MM |
Rotary degree | Horizontal: 360°, Vertical: 180° |
Feel free to contact
