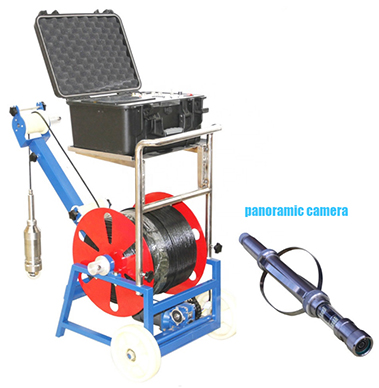

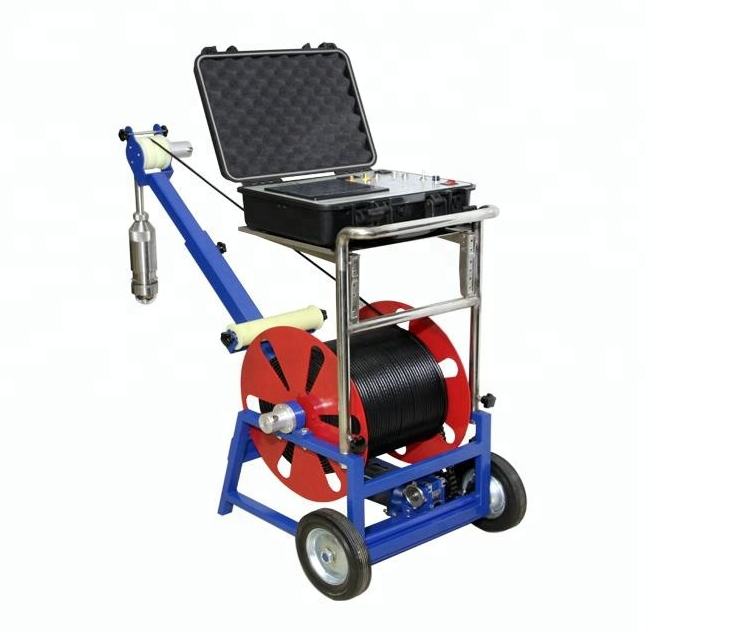

GYGD-III panoramic Deep Well Detector Borewell inspection camera down hole tv imager
0 likes
China [CN]
GYGD-III panoramic Deep Well Detector specially designed for geological exploration.It is also a leader in the same type of products.
Mainly used in the following fields
Hydrology,
Mining,
Civil engineering, drilling,
Oil well,
Engineering and even civil use.
Probe with panoramic technology can provide you a unexpected high-definition underground scenes. 360 degree field of view，unprecedented wide viewing angle，simultaneous observation of the hole wall and bottom,accurate and clear images,GYGD-III panoramic Deep Well Detector can provide you all of them,helping you to handle with your survey work，greatly save your time.

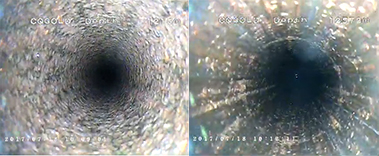

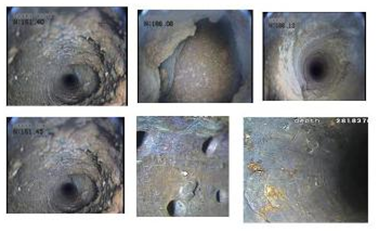

Underground real image
Function
Detect the cracks, dislocations, falling objects of the well wall, clogging of the filter pipe orifice, and the position of the quicksand.
Geological conditions such as the size and location of the karst caves can also be observed in the bedrock fissures and development conditions in the bedrock area.
Here attaches SPECIFIC PARAMETERS
No. | Description | Parameter | Remarks |
1 | Imaging chip | 1/3”color CCD |
|
2 | Resolution | 850TVL |
|
3 | Focusing | Automatic | Can also be manual |
4 | Lighting | High power lighting LED |
|
5 | Measuring depth | 0-2000m |
|
6 | Color rotating lens | 12,000,000 pixel sensitivity 1.5 Lux |
|
7 | Viewing Angle | 180° Hole Wall |
|
8 | Scan | Automatic scan |
|
9 | Control | Dynamic change speed or footage |
|
10 | Illuminating brightness | Automatic |
|
11 | Connection | USB port | Can connect with PC |

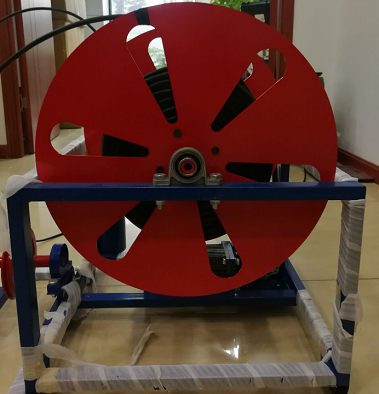

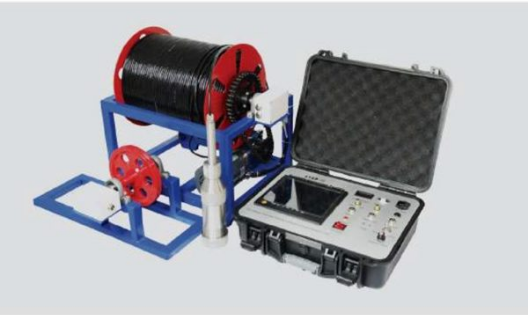

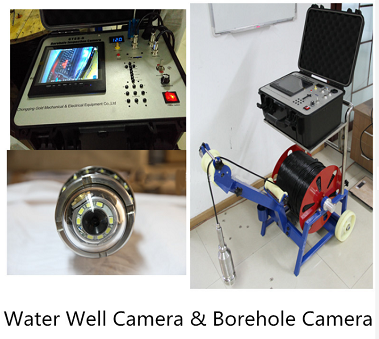

Products Display
