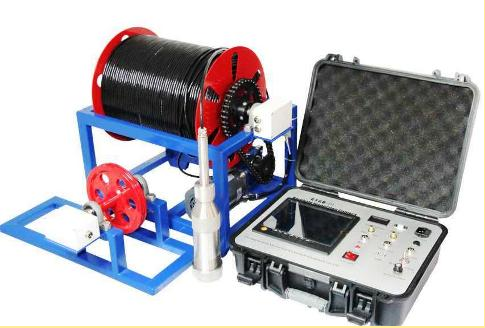

Underwater Panoramic Borehole Imaging Camera Borehole Inspection CCTV Borehole TV Investigation Camera
0 likes
China [CN]
Applications of Underwater Panoramic Borehole Imaging Camera Borehole Inspection CCTV
Panoramic inspection camera is a newly developed logging technology,mainly used in
Hydrology,
Mining,
Civil engineering, drilling,
Oil well,
Engineering and even civil use.
Via the camera ，scenes that cannot be observed by the human eyes become visible. You can directly observe the situation in the underground hole and make an accurate judgment.
Different from the rotary inspection camera,the panoramic camera has a extremely wide filed of view, can observe the hole wall and below at the same time.It can ensure the clarity and accuracy of the observation, and it does not need to adjust the camera angle frequently to find the observation target.It greatly reduces the time required for observation.
Function
Detect the cracks, dislocations, falling objects of the well wall, clogging of the filter pipe orifice, and the position of the quicksand.
Geological conditions such as the size and location of the Karst caves can also be observed in the bedrock fissures and development conditions in the bedrock area.
Specific parameters
No. | Description | Parameter | Remarks |
1 | Imaging chip | 1/3”color CCD |
|
2 | Resolution | 850TVL |
|
3 | Focusing | Automatic | Can also be manual |
4 | Lighting | High power lighting LED |
|
5 | Measuring depth | 0-2000m |
|
6 | Color rotating lens | 12,000,000 pixel sensitivity 1.5 Lux |
|
7 | Viewing Angle | 180° Hole Wall |
|
8 | Scan | Automatic scan |
|
9 | Control | Dynamic change speed or footage |
|
10 | Illuminating brightness | Automatic |
|
11 | Connection | USB port | Can connect with PC |

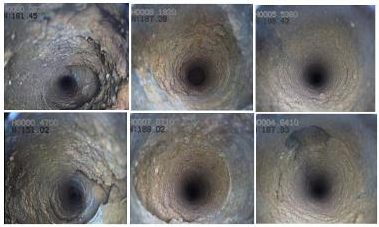

Display
