Bicolor Illuminated Smd Tact Switch With Red And Green Led Light

본문 바로가기


Home > Product > Bicolor Illuminated Smd Tact Switch With Red And Green Led Light
Product
Bicolor Illuminated Smd Tact Switch With Red And Green Led Light
Posting date : Mar 31, 2021
Membership
Free Member Scince Oct 24, 2016
FOB Price
1.0USD
Min. Order Quantity
2000
Supply Abillity
20000000
Port
SZ
Payment Terms
paypal
Package
loose
Keyword :
Category
Contact
evelyn
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
fvwin
Model Number
TS7-0000RGB
HS-CODE
8536-50
Package & Delivery Lead Time
Package
loose
Detailed Description

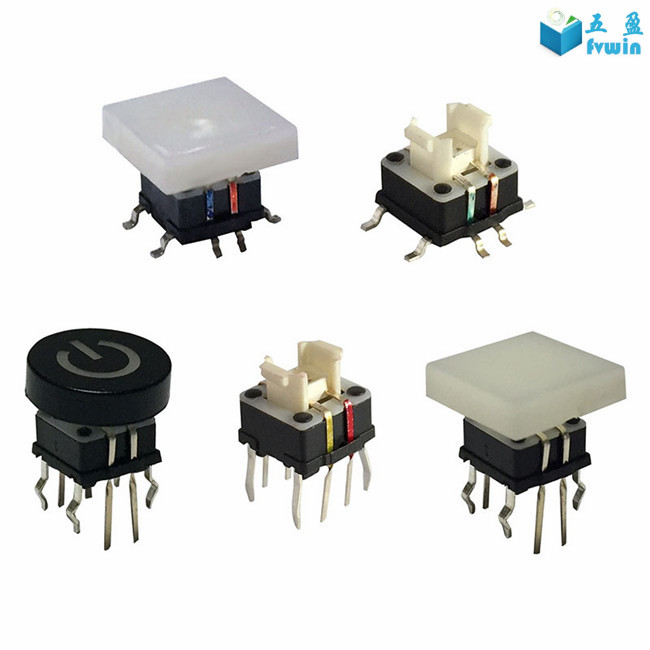

Bicolor Illuminated Smd Tact Switch With Red And Green Led Light





Specification:

Rating:DC 12V 50mA

Contact Resistance:100mΩ Max

Insulation Resistance:100mΩ Min(DC 250V)

Withstand Voltage:AC 250V(50-60Hz) for 1 minute

Operation Force:160+80/-30gf

Total Travel:0.20+/-0.15mm

Mechanical Life:50,000 Cycles(min)

Number of Poles:SPST

Latching Option:Momentary

Terminal Options:Surface Mount and Through into



Feature:

7.0mm x 7.0mm Miniature tactile switch
160 +/-50 gram force
RGB or Bi-color LED (Red-Green,Red-Blue,Red-White) illumination options
Surface Mount and through into Design
