RGB High Quality 7x7mm Illuminated Tri-color LED Tact Switch
Posting date : Mar 31, 2021
Membership
Free Member Scince Oct 24, 2016
FOB Price
0.9
Min. Order Quantity
2000
Supply Abillity
20000000
Port
SZ
Payment Terms
paypal
Package
loose
Keyword :
Category
Contact
evelyn
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
fvwin
Model Number
TS7-0000RGBA
HS-CODE
8536-50
Package & Delivery Lead Time
Package
loose
Detailed Description

RGB High Quality 7x7mm Illuminated Tri-color LED Tact Switch





Offering surface mount, through-hole mounting, the TS7 Series is a momentary reset SPST tactile switch. Available with actuation force of 160+/- 50gf and actuator travel of 0.25+/0.1mm,Bi-color LED options are red-green, red- blue and RGB. Optional button cap in round and square are also available for the TS7 series illuminated switch.

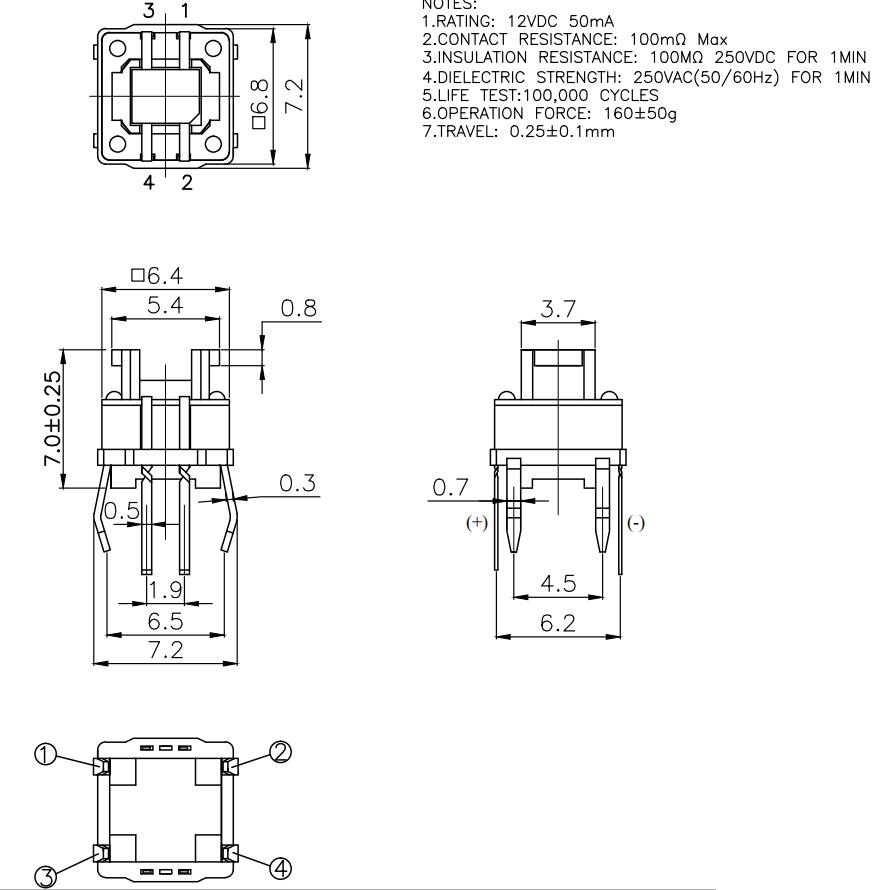

Specification:

Rating:DC 12V 50mA

Contact Resistance:100mΩ Max

Insulation Resistance:100mΩ Min(DC 250V)

Withstand Voltage:AC 250V(50-60Hz) for 1 minute

Operation Force:160+80/-30gf

Total Travel:0.20+/-0.15mm

Mechanical Life:50,000 Cycles(min)

Number of Poles:SPST

Latching Option:Momentary

Terminal Options:Surface Mount and Through into
