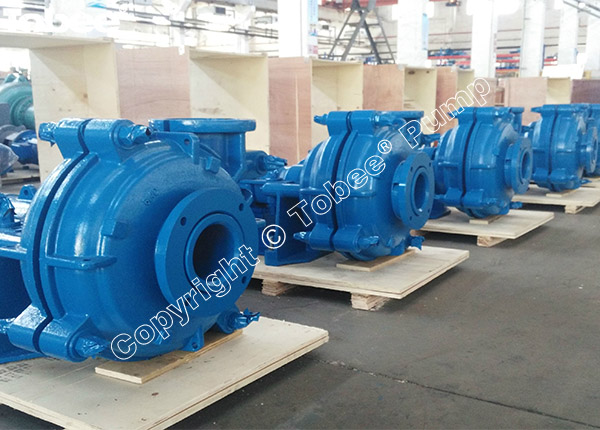

6/4D-AH Slurry Pump
0 likes
China [CN] sales6@tobeepump.com
6x4D-AH Slurry Pump is a single-stage, single-suction and horizontal heavy duty centrifugal slurry pump with a cantilever design, The 6x4 slury pumps are mainly used in solids containing applications. Depending on process conditions, equipment should be suitable for highly abrasive or corrosive liquids.
Design Features:
√ Cylindrical structure of bearing assembly: convenient to adjust the space between impeller and front liner and can be removed completely.
√ Interchangeable anti-abrasive wet parts made of high-chrome alloys.
√ The discharge branch can be oriented to any eight positions at the interval of 45 degrees.
√ Various drive types: DC (direct connection), V-belt drive, gear box reducer, hydraulic couplings, VFD, SCR control etc.
√ The shaft seal uses the packing seal, expeller seal and mechanical seal.
