China [CN] Aisi Type 430 Stainless Steel Sheet Coil Suppliers Price For 21 Gauge Thickness With Food Grade Bright Finish
430 Stainless Steel is a ferritic stainless steel with corrosion resistance approaching that of 304/304L stainless steel. This grade does not work harden rapidly and can be formed using both mild stretch forming, bending, or drawing operations. This grade is used in a variety of interior and exterior cosmetic applications where corrosion resistance is more important than strength.
430 Stainless Steel has poor weldability compared to most stainless steels due to the higher carbon content and lack of stabilizing elements for this grade, which requires post weld heat treatment to restore the corrosion resistance and ductility. Stabilized grades such as Type 439 and 441 should be considered for welded ferritic stainless steel applications. |
#430 Stainless Steel Standard Inventory Specifications |
▶ astm a240 ▶ asme sa240
▶ uns s43000 ▶ ams 5503
#430 Stainless Steel Chemical Composition
Chemical Composition (wt%) limits as specified in ASTM A240 and ASME SA240*
Element | 430 |
Carbon | 0.12 |
Chromium | 16.0-18.0 |
Nickel | 0.75 |
Manganese | 1.00 |
Silicon | 1.00 |
Phosphorus | 0.040 |
Sulfur | 0.030 |
#430 Stainless Steel Mechanical Properties
Mechanical property requirements for annealed product as specified in ASTM A240 and ASME SA240
| Property | 430 |
| Yield Strength, min. (ksi) | 30 |
| Tensile Strength, min. (ksi) | 65 |
| Elongation, min. (%) | 22 |
| Hardness, max. (Rb) | 89 |
#430 Stainless Steel Physical Properties
Property | 430 Data |
Density, lb/in3 | 0.276 |
Modulus of Elasticity, psi | 29.0 x 106 |
Coefficient of Thermal Expansion, 68-212˚F, /˚F | 5.7 x 10-6 |
Thermal Conductivity, Btu/ft hr ˚F | 13.8 |
Specific Heat, Btu/lb ˚F | 0.11 |
Electrical Resistivity, Microohm-in | 23.6 |

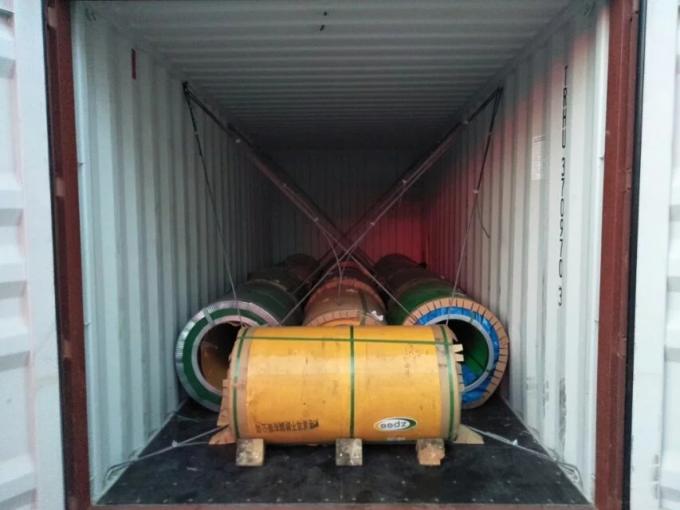

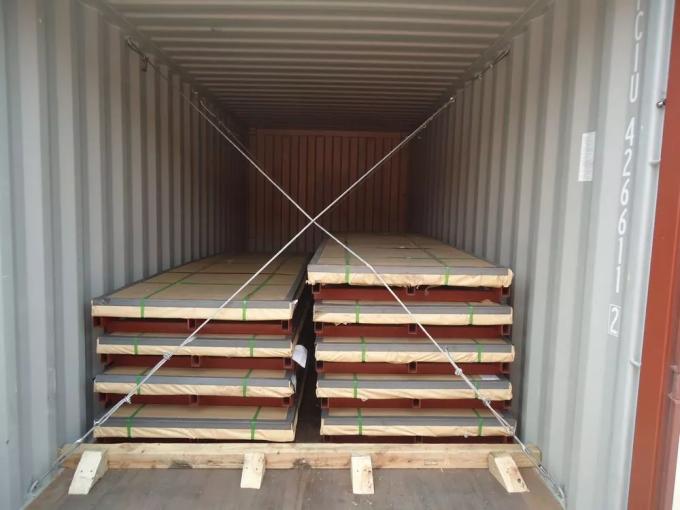

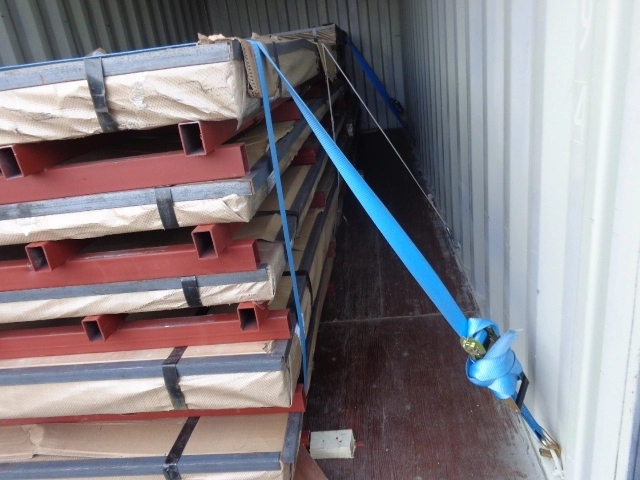

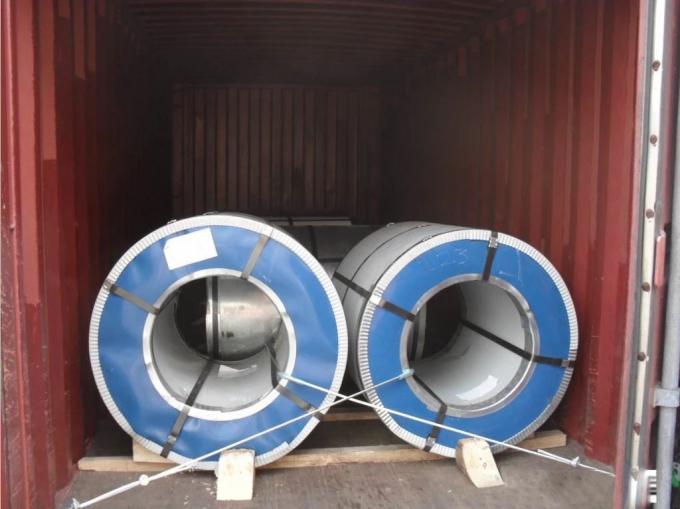

Loading Photos
FAQ Q1. What’s your main products? A1. Hot rolled,Cold rolled,Galvanized/Galvalume steel coils, prapainted galvanized steel coils, 201/304 stainless steel coil and sheets, steel plate & color steel tile etc. Q2. Can we visit your factory? A2. Warmly welcome. If we have your schedule, we will arrange our professional sales team to follow up your case. Q3. How can you ensure the quality? A3. All products have to go through three checks in the whole processing,we have professional team to deal with everything. Q4. What is your delivery time? A4. 3-5 working days after receiving your balance payment. Q5. What kind of equipment in your factory? A5. Our factory have advanced hot rolled and cold rolling production equipment and testing equipment,it can ensure the quality,high efficiency. |
