Laminated Film 50 Bags / Min Nuts Packing Machine
0 likes
China [CN] New type paste noodle packaging filling machine chocolate biscuit candy packaging machine for sale
| Technical Specification | |
| Model | ZH-BL10 / ZH-BL14 |
| Packing Speed | 25-60 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |
| Bag making mode | Pillow bag, Gusset bag , Punching bag,linked bag |
| Packing Material | laminated film ,PE film |
| Range of measuring (g) | 5000 |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) | VFFS 320: (W) 60-150 (L)50-200 VFFS 420: (W) 60-200 (L)60-300 VFFS520: (W) 90-250 (L)80-350 VFFS 620: (W) 100-300 (L)100-400 VFFS720: (W) 120-350 (L)100-450 VFFS1050:(W) 200-500 (L)100-800 |
Technical Feature :
1. 304/316 stainless steel frame
4. Intelligent: Packing speed and bag size can be set through the screen without part changes;
5. Packaging diversification, such as pillow bag, gusseted bag, hole punched bag etc.
6. Full automation from bag forming, filling, sealing, cutting and date printing.
7. Profession: Independent temperature controller with heat balance enables different packing materials;
8. Characteristic: Automatic stop function, with safe operation and saving the film;

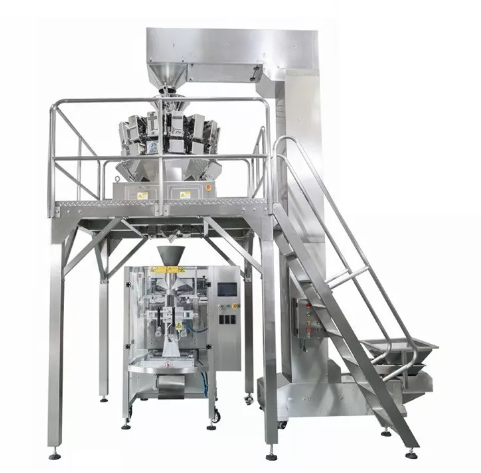

System Compostion :
1. Infeed bucket conveyor:
Feed nuts to multihead weigher which controls the start and stop of the hoister.
2. 10 heads multi weigher:
Used for nuts weighing.
3. Working platform:
Support the 10 heads multi weigher.
4. Vertical packing machine:
Pack nuts with high speed, and data printed, sealing-off and bag cut are completed automatically.
5. Take off conveyor:
Convey nuts finished bag to next step.
Application of Machine
It is suitable for Fill free-flowing grains, pulses, seeds, salt,coffee beans, maize, nuts, candies, dried fruits, pasta, vegetables, snacks, pet food, low weighing engineering products and many more. etc.
Food Materials and Bag Type :
Some Project :
