Pavement Base Reinforcement High Strength 45KN Black Plastic Geogrid
0 likes
China [CN] Pavement Base Reinforcement Railway And High Way Bed Stabilization High Strength PPBiaxial Plastic Geogrid
Biaxial Plastic Geogrid Introduction
Biaxial geogrid is also known as geotextile, is a kind of permeable geosynthetics which is made of synthetic fiber by needling or weaving. Geotextile is one of the new materials geosynthetics. The finished product is cloth like, with a width of 4-6 meters and a length of 50-100 meters. Geotextiles are divided into woven geotextiles and non-woven filament geotextiles.
Biaxial Plastic Geogrid Specification
| project | TGSG15-15 | TGSG20-20 | TGSG25-25 | TGSG30-30 | TGSG40-40 | TGSG45-45 | TGSG50-50 |
| Longitudinal tensile yield force KN/m | 15 | 20 | 25 | 30 | 40 | 45 | 50 |
| Transverse tensile yield force KN/m | 15 | 20 | 25 | 30 | 40 | 45 | 50 |
| Tensile Strength @2% Strain KN/m | 5 | 7 | 9 | 10.5 | 14 | 16 | 17.5 |
| Tensile Strength @5% Strain KN/m | 7 | 14 | 17 | 21 | 28 | 32 | 35 |
| Roll width | 3.95 or 5.95 meters | ||||||
| Roll Length | 50 meters | ||||||
Construction method of Biaxial Plastic Geogrid

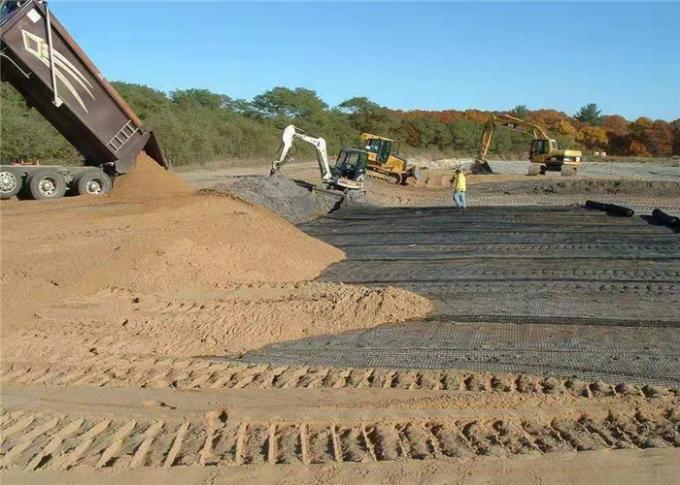

Excavate the foundation bed, set sand cushion (height difference is no more than 10cm), roll it into platform, and lay grid. The longitudinal axis should be consistent with the main stress direction, with longitudinal lap of 15-20cm and transverse of 10cm. The lap joint should be bound with plastic tape, and fixed on the ground with U-shaped nails every 1.5-2m on the laid grid. The laid geogrid should be backfilled timely. The number of layers of geogrid depends on the technical requirements Please.
Biaxial Plastic Geogrid Function
1. Improve the bearing capacity of foundation;
2. Preventing cracking and subsiding;
3. Convenient to construct, reducing cost and maintaining expense
