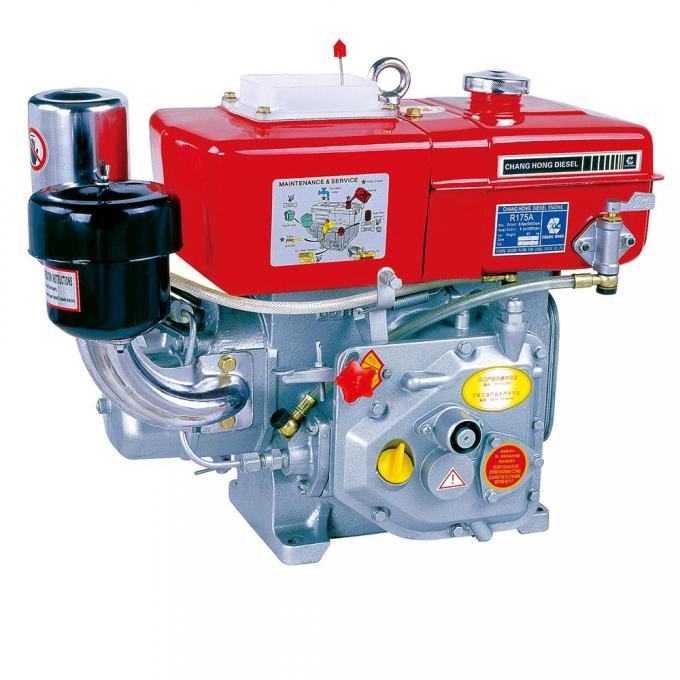

R175A 6HP 4 Stroke Diesel Engine With 1 Pillow Block Bearing
0 likes
China [CN] Diesel Engine , Agriculture Machine , Water Cooling Engine , Farm machinery spare parts , 1 pillow block bearing
R175A IS A WATER-COOLING SINGLE CYLINDER DIESEL ENGINE.THE DETAILED SPECIFICATION IS AS FOLLOWING :
| MODEL | R175A |
| TYPE | SINGLE CYLINDER,WATER-COOLED,HORIZONTAL,4-STROKE |
| BORE X STROKE (MM) | 75x80 |
| SPEED (RPM) | 2600 |
| CONTINUOUS OUTPUT (KW/HP) | 4.41/6 |
| MAXIMUM OUTPUT (KW/HP) | 4.85/6.6 |
| COMBUSTION SYSTEM | SWIRL COMBUSTION CHAMBER |
| SPECIFIC FUEL CONSUMPTION (G/KW.H) | 280.2 |
| STARTING METHOD | HAND CRANK |
| LUBRICATING OIL CAPACITY (L) | 2 |
| WATER TANK CAPACITY (L) | 6 |
| FUEL TANK CAPACITY (L) | 5 |
| NET WEIGHT (KGS) | 60 |
| GROSS WEIGHT (KGS) | 76 |
| OVERALL DIMENSIONS (LXWXH:MM) | 600x380x550 |
| SET/20" CONTAINER | 228 |
Application
R175A water cooled diesel engine mainly apply to small tractors, farm vehicles, small generators, air compressors, inland shipping and power plant of agricultural processing (such as threshers, rice mills, milling machines, feed crusher, etc.).

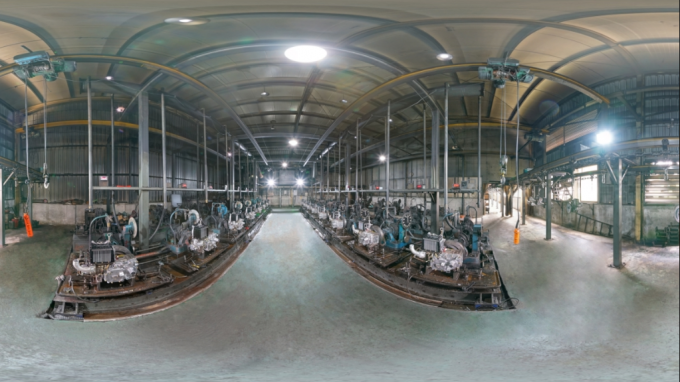

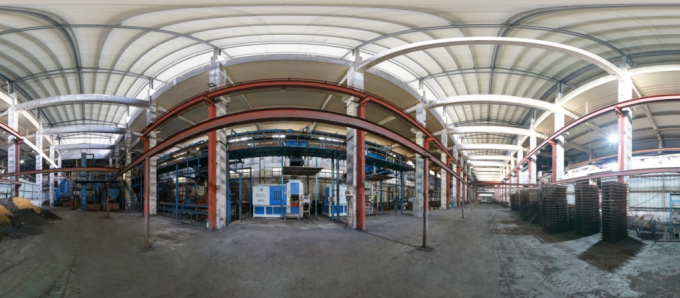

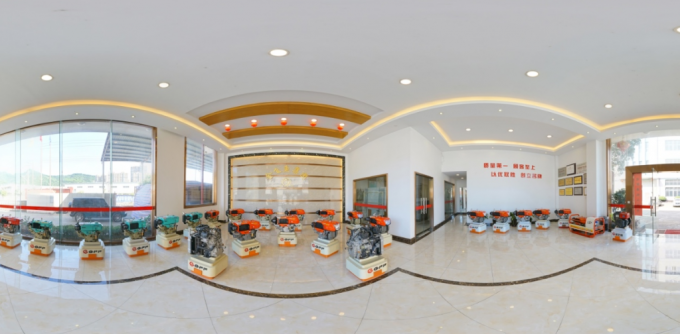

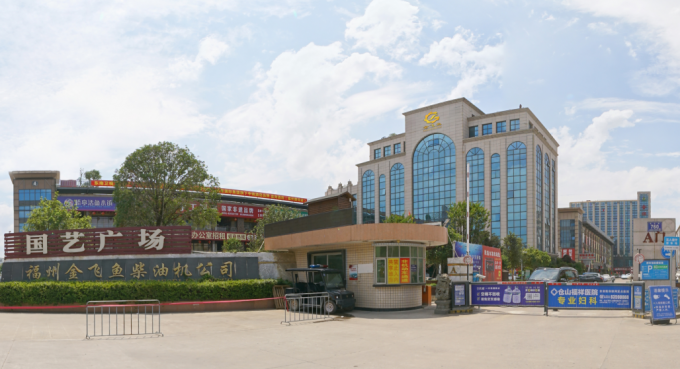

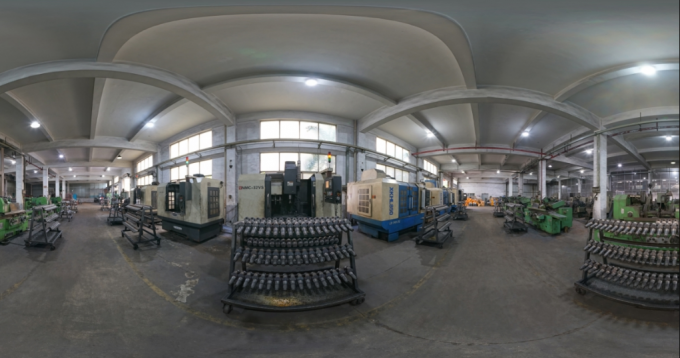

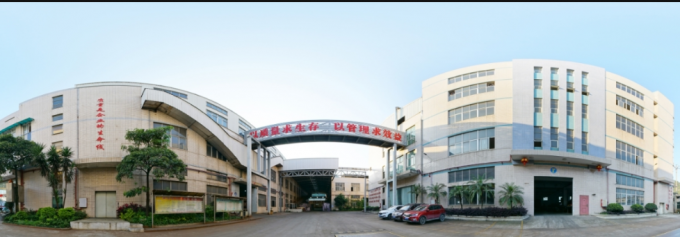

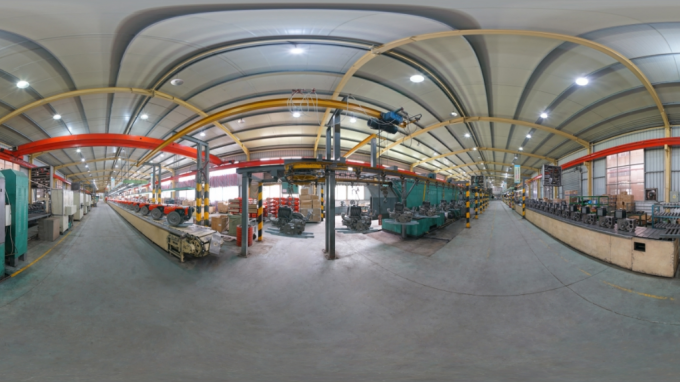

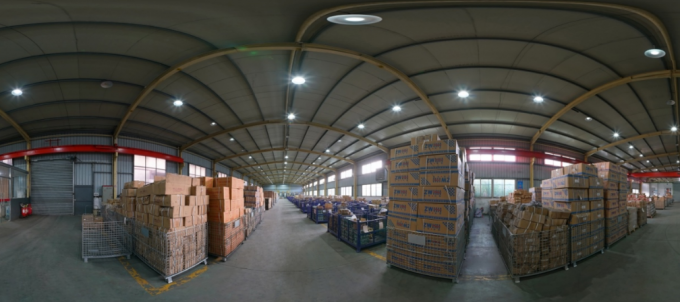

Production Workshop&Company Preview
EXIHIBITION
CUSTOMER VISIT:
Q&A
Q1. Are you a supplier or manufacturer?
A: We are a manufacturer for agricultural machinery with longest and biggest history in China from 1998. We can provide the machinery, engine and spare parts with favorite price, because we are the source.
Q2. Where is your factory?
A: Our factory located in Fuzhou City,Fujian Province,China.
Q3. What is your delivery time?
A: Generally, it will take 25 to 35 days after receiving your advance payment. The specific delivery time depends on the territory, the items and the quantity of your order.
Q4. What is the shipping port?
A: Our Port is Fuzhou Port.
Q5. What is the MOQ?
A: One set is available if you are final users or want to test the machine as a sample. For distributor, normally the MOQ is suggested at least a half of 20ft container, but one set is also available for you to test the machine quality.
Q6. How about the quality or sample policy?
A: We have 100% test before delivery. For customers: If It’s convenience for the customers, it is our pleasure that you can arrange a trip to visit our company to see more details about us, our products as well as testing the quality of the products. You are always welcome to visit our factory. The sample: we can send out the sample, however, the customers have to pay the sample cost and the courier cost.
Q7. How to install and use the machines?
A: We will provide operating manual to you and train you how to install, use and maintain the machine.
Q8. How do you make our business long-term and good relationship?
1). We keep good quality and competitive price to ensure our customer benefit.
2). We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
