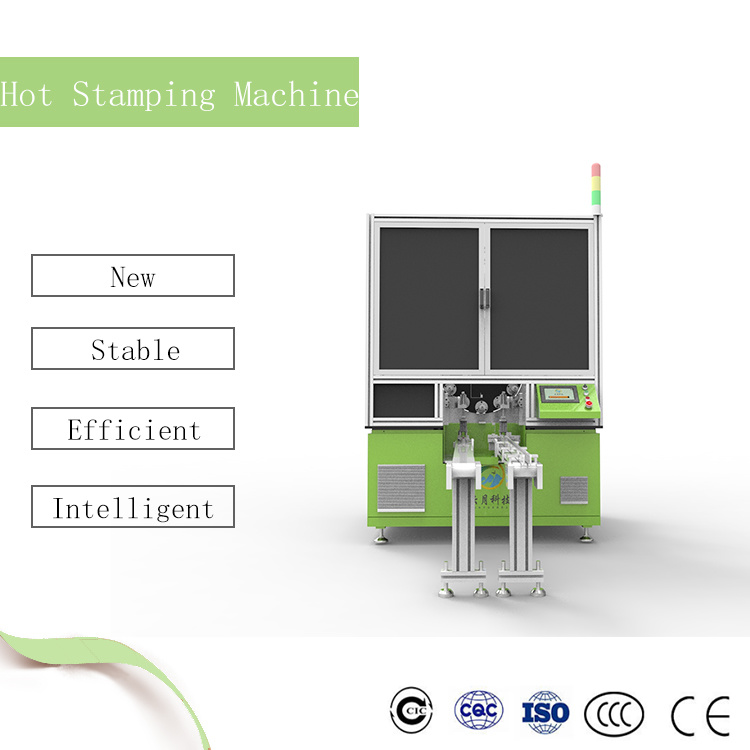

Automatic hot foil stamping machine for cream bottles

Technical Parameters:

Print Size:Φ(25-70)×(25-70) mm

Speed :50 pcs/min

Air presser :5-7bar

Weight: 1200 kg

Dimensions:2430L×1850W×1800H mm

Power: AC380V 50-60Hz 6Kw

ATR-G automatic cream bottle hot stamping machine, the machine parts are of good quality, precision processing, equipment and electronic components are world-renowned brands, the machine is flexible, and it is easier and faster to replace the product fixture.

1. This machine allows multiple colors to be printed, and each module is independent and synchronously driven, with stable and reliable performance.

2. It is controlled by PLC and displayed on touch screen, equipped with various monitoring systems to ensure high-speed and stable operation of the machine.

3. The innovative transmission system is very stable when passing through bottles, easy to switch between different types of bottles, and easy to operate.

4. According to the characteristics of the product, it can be equipped with functions such as automatic loading and unloading, positioning, flame treatment, dust removal, automatic registration, and no bottle without printing.

5. We can customize machines according to different products.
