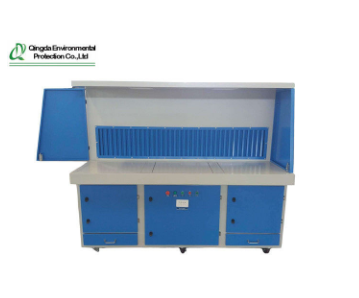

8000m³/h Dust Extraction Downdraft Table
0 likes
China [CN] Auto Cleaning Industrial Dust Extraction Downdraft Table Metal Cutting Grinding Stone Polishing
Product Description
Downdraft tables are workbenches with built-in ventilation to capture dust, smoke, and fumes and draw them away from the material being worked on.
Qingda's advanced downdraft table is wonderful for welding, polishing, grinding and cutting processes, in various industries such as tobacco, medicine, building, metallurgy, chemical, electric power, machinery, casting. It is worth mentioning that it can also be used for material recovery during precious metal processing.
Parameters
| Downdraft table, Downdraft bench, Extraction table, Polishing table, Grinding table | |
| Construction | Perfect design for workbench and dust collector integrated machine |
| Condition | New |
| Usage/Suitable | For Industry particulate dust |
| Air Flow | 1500m³/h, 3000m³/h, 4000m³/h, 6000m³/h, 8000m³/h. |
| Night Light | LED Lamp |
| Purification efficiency | From 95% to 99% |
| Filterable Pollutants | Dusts, Welding fume, PM2.5 |
| Filter Precision | 0.3-0.5 μm |
| Table top/Workbench Working Area | 1000x600mm, 1500x600mm, 2000x600mm or ODM |
| Table top/Workbench Height(Above ground) | 900mm |
| Table top/Workbench Weight loading capacity | Regular 200kg, Maximum 400kg |
| Mobility | Movable when below 400kg loading; Fixed when above 400kg loading. |
| Voltage | 220V or 380V |
| Cartridge style | Fireproofing, PTFE coated, With filter screen |
| Cartridge size | φ325*500mm |
| Cartridge service life | Maximum 24 months |
| Dust cleaning method | Automatic pulse jet cleaning |
| Vacuuming direction | Downdraft suction and Sideway suction. |
| Draught fan type | Built-in silent style, or External hanging style. |
| Motor power | 1.5KW, 2.2KW, 3KW, 6KW, 7.5KW |
| Application Environment | Both indoor and outdoor |
| Machine Body Material | High strength Carbon Steel |
| Machine surfacre treatment | Powder coating or Original color(for welding process) |
| Guarantee | 1 years and lifetime after-sales. |
| OEM&ODM | Negotiable |
| Application | Stone processing factory, Foundry steel factory, Steel & Shoot Blasting, Metals & Ironworks Industry, Wood furniture factory, Precious metal & Jewelry making and etc. |
| Delivery time | Regular size:7 day; Customized size:14 days. |
| Delivery port | Tianjin Port |
| H.S code | 842139 |
| Other device needed | Air |
